Poulan Pro PP260 Gas Saw Type 6

Model: PP260 Gas Saw Type 6, 260 Gas Saw Type 6

Back To Assemblies

Save Part Not Listed?
product name

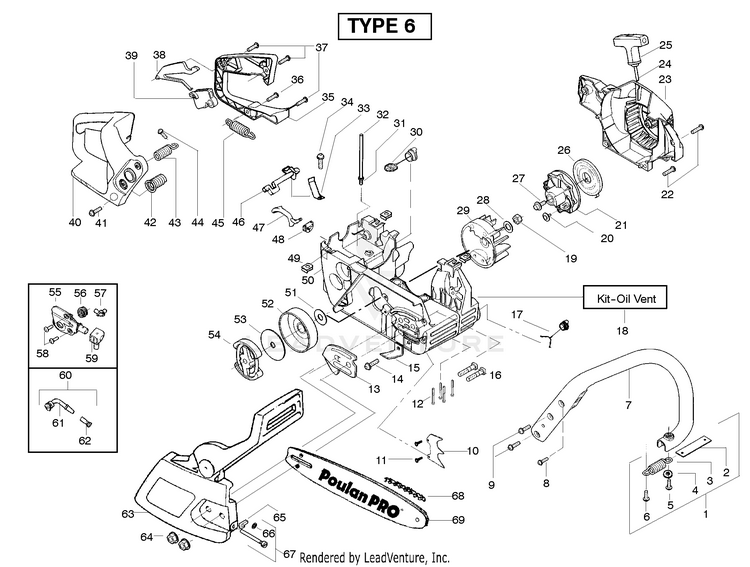

Starter Type 6

...
...
1
Assy.-Isolator PLN-530059667
...
2
4V STRAP PLN-530037009
...
3
SPRING PLN-545006036
...
4
Washer PLN-530015123
...
5
Screw PLN-530016018
...
6
Screw PLN-530015843
...
7
HANDLE PLN-545048001
...
8
Screw PLN-530015940
...
9
Screw PLN-530015814
...
10
Kit-Spike Assy (Incl. #11) (Russia Unit Only) PLN-530014381
...
11
Screw PLN-530016439
...
12
Screw PLN-530016132
...
13
Plate-Bar Mount. PLN-530038238
...
14
Screw PLN-530015814
...
15
Chain Catcher PLN-530029850
...
16
Bolt-Bar PLN-530016133
...
17
Assy-Oil Cap PLN-530057236
...
18
Kit-Oil Vent PLN-530071666
...
19
Nut-Flywheel PLN-530016134
...
20
Screw PLN-530016080
...
21
STARTER PULLEY PLN-545034301
...
22
Screw PLN-530015892
...
23
Housing-Fan PLN-530049335
...
24
Kit - Rope PLN-530069232
...
25
Handle-Starter PLN-530056402
...
26
SPRING STARTER PLN-545008015
...
27
Screw PLN-530015920
...
28
Washer-Flywheel PLN-530015127
...
29
FLYWHEEL ASSY PLN-530047534
...
30
FUEL CAP ASSY PLN-580940901
...
31
Fitting-fuel line PLN-530023877
...
32
Kit-Fuel line (large) PLN-530069216
...
33
Spring-Switch PLN-530016149
...
34
Screw PLN-530015775
...
35
Cover-Rear Handle PLN-530047581
...
36
Screw PLN-530015886
...
37
Screw PLN-530015906
...
38
Throttle Lockout PLN-530036098
...
39
Trigger-Throttle PLN-530036097
...
40
Handle - Rear PLN-530047582
...
43
SPRING PLN-545006036
...
44
Screw PLN-530015875
...
45
SPRING PLN-545006036
...
46
Lever-Switch PLN-530057473
...
47
Lever-Choke PLN-530057474
...
48
Grommet-Knob PLN-530049005
...
49
Nut-"U"-Type PLN-530015922
...
50
Assy-Chassis, Gold (Incl.fuel lines and caps ) PLN-530058733
...
50
Assy-Chassis, Black (Incl.fuel lines and caps ) PLN-530058730
...
51
Washer-Thrust PLN-530015907
...
52
Assy.-Clutch Drum w/bearing PLN-530047061
...
53
Washer-Clutch PLN-530015611
...
54
Assy. Clutch PLN-530014949
...
55
Kit - Oil Pump (Incl. 56,57,59) PLN-530071259
...
56
Gear-Worm Spring PLN-530037820
...
57
Elbow-Oil Pickup PLN-530049477
...
58
SCREW 6-19X.437 PLN-545227101
...
59
Seal Block PLN-530019206
...
60
Assy-Oil Pick-up Incl. 61,62) PLN-530047663
...
61
Pick-up Oiler PLN-530038373
...
62
Filter-Oil PLN-530056533
...
63
Assy.-Chain Brake PLN-545139915
...
64
Nut-Bar Mounting PLN-530015917
...
65
Pin-Bar Adjust PLN-530015826
...
66
Retainer PLN-530038593
...
67
Kit-Bar Adjusting (Incl. # 65,66) PLN-530069611
...
68
ACCY P/PP CHN 16" 56DL 3/8 PLN-581562201
...
68
P/PP CHN 18" 62DL 3/8 .050 PLN-581562301
...
69
BAR, 16" Standard (Refer to Service Reference) PLN-952044369
...
69
BAR, 18" Standard (Refer to Service Reference) PLN-952044689
...
69
BAR, 18" Quick Adjust (Refer to Service Reference) PLN-952044926
...
69
BAR, Quick Adj. pro lam (Refer to Service Reference) PLN-530044867
