product name

Poulan Pro PP260 Gas Saw Type 4

Model: PP260 Gas Saw Type 4, 260 Gas Saw Type 4

Back To Assemblies

Save Part Not Listed?
product name

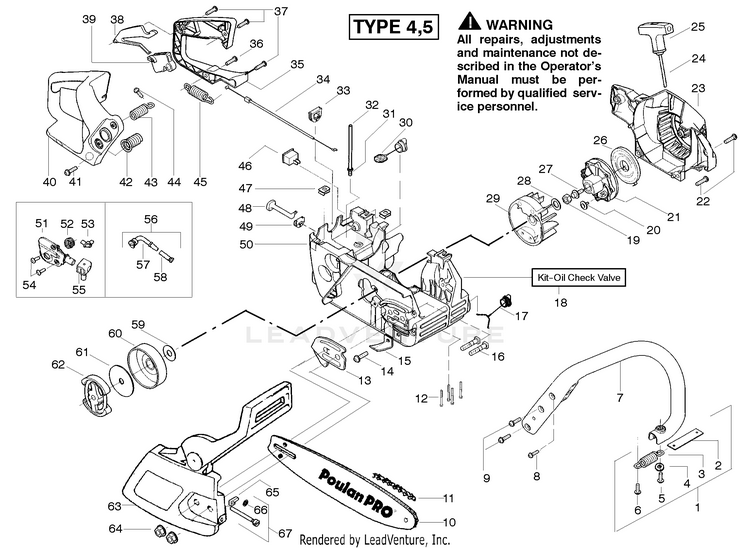

Starter Type 4-5

...
...
1
SPRING PLN-545006036
...
2
4V STRAP PLN-530037009
...
3
SPRING PLN-545006036
...
4
Washer PLN-530015123
...
5
Screw PLN-530016018
...
6
Screw PLN-530015843
...
7
HANDLE PLN-545048001
...
8
Screw PLN-530015940
...
9
Screw PLN-530015814
...
10
BAR 18" 3/8 62DL PPRO QADJ PLN-578137801
...
11
P/PP CHN 18" 62DL 3/8 .050 PLN-581562301
...
12
Screw PLN-530016132
...
13
Plate-Bar Mounting PLN-530038238
...
14
Screw PLN-530015814
...
15
Chain Catcher PLN-530029850
...
16
Bolt-Bar PLN-530016133
...
17
OIL TANK CAP PLN-530057236
...
18
Kit-Oil Check Valve PLN-530071666
...
19
Nut- Flywheel PLN-530016134
...
20
Screw PLN-530016080
...
21
STARTER PULLEY PLN-545034301
...
22
Screw PLN-530015892
...
23
Fan Housing PLN-530049335
...
24
Kit - Rope PLN-530069232
...
25
Handle-Starter PLN-530056402
...
26
SPRING STARTER PLN-545008015
...
27
Screw PLN-530015920
...
28
Washer- Flywheel PLN-530015127
...
29
FLYWHEEL ASSY PLN-530047534
...
30
FUEL CAP ASSY PLN-580940901
...
31
Fitting- fuel line PLN-530023877
...
32
Kit-Fuel line (large) PLN-530069216
...
33
Grommet-Cable PLN-530047631
...
34
Cable-Throttle PLN-530047602
...
35
Cover-Rear Handle PLN-530047581
...
36
Screw PLN-530015886
...
37
Screw PLN-530015906
...
38
Throttle Lockout PLN-530036098
...
39
Trigger-Throttle PLN-530036097
...
40
Handle - Rear PLN-530047582
...
41
Screw PLN-530015814
...
42
SPRING PLN-545006036
...
43
SPRING PLN-545006036
...
44
Screw PLN-530015875
...
45
SPRING PLN-545006036
...
46
Kit-Switch PLN-530069572
...
47
Nut- "U"-Type PLN-530015922
...
48
Knob-Choke PLN-530047605
...
49
Grommet-Knob PLN-530049005
...
50
Assy-Chassis (Incl. 16,17,30 filter & fuel lines) PLN-530056596
...
51
Kit - Oil Pump (Incl. 52,53,55) PLN-530071259
...
52
Gear-Worm Spring PLN-530037820
...
53
Elbow-Oil Pickup PLN-530049477
...
54
SCREW 6-19X.437 PLN-545227101
...
55
Seal Block PLN-530019206
...
56
Assy-Oil Pick-up (Incl. 57,58) PLN-530047663
...
57
Pick-up Oiler PLN-530038373
...
58
Oil Filter PLN-530056533
...
59
Washer-Thrust PLN-530015907
...
60
Assy.-Clutch Drum w/bearing PLN-530047061
...
61
Washer-Clutch PLN-530015611
...
62
Assy. Clutch PLN-530014949
...
63
Assy.-Chain Brake PLN-545139915
...
64
Nut-Bar Mounting PLN-530015917
...
65
Pin-Bar Adjust PLN-530015826
...
66
Retainer-Bar Adjust PLN-530038593
...
67
Kit-Bar Adj. (Incl.65,66) PLN-530069611
