product name

Poulan Pro PP25E Gas Trimmer

Model: PP25E Gas Trimmer

Save
Part Not Listed?Part Not Listed?

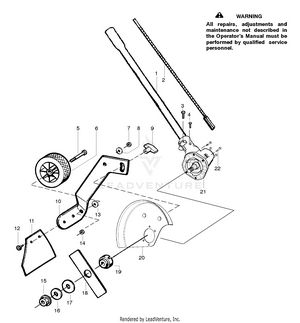

product name

Drive Shaft Assembly

...
...
1
Kit-Assy. Driveshaft PLN-545003364

...
2
Flexshaft-Split boom PLN-530096183


...
4
Screw-Alignment PLN-530015775

...
5
Bolt-Shoulder Axle PLN-530015981

...
6
Wheel-4" (rubber) PLN-530095125

...
7

...


...
10
Bracket-Adj. Wheel PLN-530053009

...
11
Kit-Mud Flap (incl.#12) PLN-530071251

...
12
Fastener-Mud Flap PLN-530053012

...
13

...
14

...
15
Nut-Flange (L.H.) PLN-530015793

...
16
Washer-Belleville PLN-530016240

...
17
Washer-Flat PLN-530015792

...
18
Accy-7.5" Blade PLN-952711625

...
19

...
20
Kit-Edger Guard PLN-530071930

...
21
Kit-Gearbox (Incl. 3,4,19,22) PLN-530071586

...

...
xx
Hanger-Attachment Not Shown PLN-530150031

...
xx
Decal-Shaft Warning Not Shown PLN-545005908

...
xx
Decal-Guard Warning Not Shown PLN-545074501

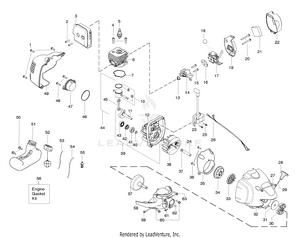

Engine Assembly

...

...
2
Bolt-Muffler PLN-530058982

...
3
Assy-Muffler/Shield (Incl. 2) PLN-530057538

...
4
Screw-Cylinder PLN-530015953

...
5
Spark Plug (RCJ 6Y) PLN-952030249

...
6

...
7
Seal-Cylinder (kit) PLN-530071750

...
8
RING PISTON PLN-545154001

...
9
Retainer-Piston Pin PLN-530015162

...
10
Kit - Piston (Incl. 8, 9) PLN-530071833

...
11
ASSY CRANKSHAFT PLN-545145802

...
12
Assy-Crankcase (Incl. 41,42,43) PLN-530012582

...
13
Seal-Cyl/Carb. (kit) PLN-530071750

...
14
Adapter-Carb. PLN-530057547

...

...
16
Gasket-Carb. (kit) PLN-530071750

...
17
Kit-Carb. (C1U-W19) (Note : Repair kits are not available for this carburetor) PLN-530071811

...
18
Bulb-Purge PLN-530058709

...
19

...

...
21
Foam-Air Filter PLN-530036575

...
22
Cover-Air Box PLN-530057545

...
23
Ignition Module PLN-530035505

...
24
Spacer-Flywheel PLN-530059758

...

...
26
Assy-Switch wire PLN-545015601

...

...
28
Handle-Starter PLN-530054834

...
29
Kit - Rope PLN-545050409

...
30
Assy-Clutch PLN-530055122

...
31
Washer-Clutch PLN-530094189

...
32
Assy.-Fan Hsg PLN-545016004

...
33
KIT STARTER SPRING PLN-545008014

...
34
Kit-Starter Pulley PLN-545050407

...
35

...

...
37
Washer-Clutch Flat PLN-530016463

...
38
Assy-Flywheel PLN-530039243

...
39
ASSY CRANKCASE & CRANKSHAFT (Incl. 11,12,40) PLN-545102101

...
40
Retain. Ring-C'shaft PLN-530015941

...
41
Outer Bearing PLN-530055728

...
42
Seal-C'shaft PLN-530019264

...
43
Inner Bearing PLN-530032125

...
44
Kit-piston/rod (Incl. 10,45) PLN-530071785

...
45
CONNECTING ROD ASSY PLN-530049817

...
46
O-Ring-C'case (kit) PLN-530071750

...
47
Assy-Plug (incl.46) PLN-530057954

...

...
49
Shroud-Rear PLN-530057539

...
50
Retainer-Tank PLN-530016445

...
51
Assy-Fuel Tank (incl. filter, lines & fuel cap) PLN-545103702

...
52
Assy-Fuel Cap PLN-530057973

...
53
Kit-Fuel Line (Small) PLN-530069247

...
54
Kit-Fuel Line (Large) PLN-530069216

...
55
Assy-Fuel Pickup PLN-530095646

...
56
Kit-Engine Gasket (Incl. 7,13,16,46) PLN-530071750

...
57
Assy-Clutch Drum PLN-530150247

...
58
Assy-Clutch Cover (Incl. 61,62) PLN-545077301

...
59
Screw-Align PLN-530016319

...

...
61
Screw 12-24 PLN-530016381

...
62
Nut 12-24 PLN-530016382

...

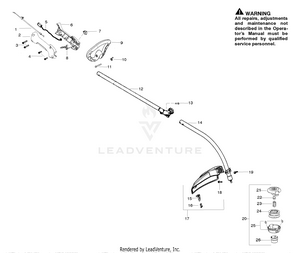

Handle & Shaft Assembly

...
...
1
Assy-Throttle Cable PLN-530059759

...
2
Hsg.-Throttle (RH) PLN-530057541



...
5
Assy.-Wire PLN-530054183

...
6
Hsg. Throttle (LH) PLN-530059760

...
7
Kit-Switch PLN-530069572

...
8
TRIGGER RED PLN-530049107

...
9
Assy-Handle-Assist (Incl. 10,11) PLN-530058583



...
12
KIT UPPER SHAFT BLACK (Incl. flex, clamp & 13) PLN-575260201

...

...
14
Kit-Lower Shaft PLN-530071788

...
15
Limiter-Line PLN-530052286

...

...
17
Kit-Shield Assy. (Incl. 15,16,18,19) PLN-530071802



...
20
TNG VII LH/RH .080 (Incl. 21, 22,23,24,25,26) PLN-590267601

...
21

...
22

...
23

...
24
Assy-Wound Spool PLN-545080801

...
25
Kit-Cover and Eyelet PLN-545003365


...
xx
Operator Manual Not Shown PLN-545186849

...
xx
Decal-Shaft Warning Not Shown PLN-545209101

...
xx
Decal-Upper Shaft Not Shown PLN-545167703
...
...
...
