Poulan Pro PP258TP Pole Pruner Type 2

Model: PP258TP Pole Pruner Type 2

Save
Part Not Listed?Part Not Listed?
product name

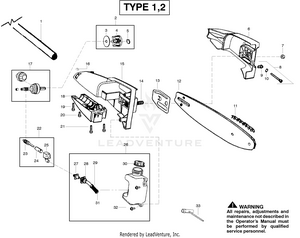

Cutting Equipment Type 1,2

...
...
1
Assy-Driveshaft PLN-545008090

...
2
Kit-Sprocket Assy. (incl. 3,4,5) PLN-530071647

...

...
4

...
5
Retainer-Sprocket PLN-530056563

...
6
Assy-Bar Clamp (incl. #8) PLN-530057100

...
7
Nut-Bar Mounting PLN-530015917

...
8
Kit-Bar Adjust (incl. 9,10) PLN-530069611

...
9
Pin-Bar Adjust PLN-530015826

...
10
Retainer-Bar Adjust PLN-530038593

...
11
ACCY P/PP CHN 8" 90JG34DL 3/8 PLN-581562501

...
12

...
13
Plate-Bar pad PLN-530056523

...
14

...
15
Hsg.-Upper (incl. #14) PLN-530056513


...
17
Kit-Gear Assy PLN-530071646

...
18
Hsg.-Lower PLN-530056514

...

...
20
Screw-Align PLN-530015805

...

...
22
Kit-Oil Assy (incl. 23,24,25) PLN-530071645

...
23
Assy-Gear Plunger PLN-530053764

...
24

...
25
Block-Oil PLN-530056522

...
26
ASSY OIL TANK (incl. 27,28,29,30,31) PLN-530150266

...
27
Fitting-Oil Line PLN-530056524

...
28
Intake-Oil Line PLN-530021160

...
29
Filter-Oil PLN-530056533

...
30

...
31
Filter-Oil PLN-530056533

...

...
33
Wrench-Bar PLN-530031163

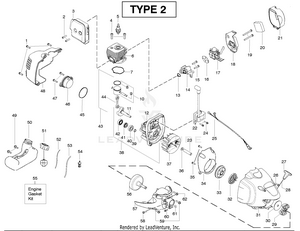

Engine Type 2

...

...
2
Bolt-Muffler PLN-530058982

...
3
Assy-Muffler/Shield (Incl. 2) PLN-545227901

...
4
Screw-Cylinder PLN-530015953

...
5
Spark Plug (RCJ 6Y) PLN-952030249

...
6

...
7
Seal-Cylinder (kit) PLN-530071750

...
8
RING PISTON PLN-545154001

...
9
Retainer-Piston Pin PLN-530015162

...
10
Kit - Piston (Incl. 8, 9) PLN-530071833

...
11
ASSY CRANKSHAFT PLN-545145802

...
12
Assy-Crankcase (Incl. 40,41,42) PLN-530012582

...
13
Seal-Cyl/Carb.(kit) PLN-530071750

...
14
Adapter-Carb. PLN-530057547

...

...
16
Gasket-Carb. (kit) PLN-530071750

...
17
Kit-Carb.(C1U-W19) (Note: Repair kits are not available for this carburetor) PLN-530071811

...
18

...

...
20
Foam-Air Filter PLN-530036575

...
21
Cover-Air Box PLN-530057545

...
22
Ignition Module PLN-530035505

...
23
Spacer-Flywheel PLN-530059758

...

...
25
Assy-Switch wire PLN-530047278

...

...
27
Handle-Starter PLN-530054834

...
28
Kit - Rope PLN-545050409

...
29
Assy-Clutch PLN-530055122

...
30
Washer-Clutch PLN-530094189

...
31
Assy.-Fan Hsg PLN-545016004

...
32
KIT STARTER SPRING PLN-545008014

...
33
Kit-Starter Pulley PLN-545050407

...
34

...

...
36
Washer-Clutch Flat PLN-530016463

...
37
Assy-Flywheel PLN-530039243

...
38
ASSY CRANKCASE & CRANKSHAFT (Incl. 11,12,39) PLN-545102101

...
39
Retain. Ring-C'shaft PLN-530015941

...
40
Outer Bearing PLN-530055728

...
41
Seal-C'shaft PLN-530019264

...
42
Inner Bearing PLN-530032125

...
43
Kit-piston/rod (Incl. 10,44) PLN-530071785

...
44
CONNECTING ROD ASSY PLN-530049817

...
45
O-Ring-C'case (kit) PLN-530071750

...
46
Assy-Plug (incl.45) PLN-530057954

...

...
48
Shroud-Rear PLN-530057539

...
49
Retainer-Tank Screw PLN-530016445

...
50
Assy-Fuel Tank (incl.filter, lines & fuel cap) PLN-545103702

...
51
Assy-Fuel Cap PLN-530057973

...
52
Kit-Fuel Line (Small) PLN-530069247

...
53
Kit-Fuel Line (Large) PLN-530069216

...
54
Assy-Fuel Pickup PLN-530095646

...
55
Kit-Engine Gasket (Incl. 7,13,16,45) PLN-530071750

...
56
Assy-Clutch Drum PLN-530150247

...
57
Assy-Clutch Cover (Incl. 60,61) PLN-545077301

...
58
Screw-Align PLN-530016319

...

...
60
Screw 12-24 PLN-530016381

...
61
Nut 12-24 PLN-530016382

...

...
62
Bulb-Purge Not Shown PLN-530058709

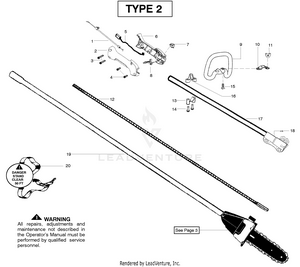

Shaft & Handle Type 2

...
...
1
Assy-Throttle Cable PLN-530059759

...
2
Hsg.-Throttle right PLN-530057541

...


...
5
Assy-Wire PLN-530054183

...
6
Hsg. - Throttle left PLN-530059760

...
7
Kit-Switch PLN-545030601

...
8
TRIGGER RED PLN-530049107

...
9
Assy-Handle (Incl. 10,11,15) PLN-530059101

...
10
Clamp-Handle PLN-530059185


...
12
Flex-Lower PLN-530056570

...
13
Clamp-Lower PLN-530057987

...


...
16
Clamp-Upper PLN-530057986

...
17
KIT UPPER SHAFT BLACK (Incl. 18, flex) PLN-575260201

...

...
19
Assy-Driveshaft PLN-545008090

...
20
Shoulder Strap PLN-530094417

...
20
Manual Not Shown PLN-115260726

...
20
Att. - Hanger (90 deg) Not Shown PLN-530150031

...
20
Decal-Upper Shaft Not Shown PLN-545167703

...
20
Decal-Warning pruner Not Shown PLN-545003066
...
...
...
