Poulan Pro PP236C Gas Saw

Model: PP236C Gas Saw, 236C Gas Saw

Back To Assemblies

Save Part Not Listed?
product name

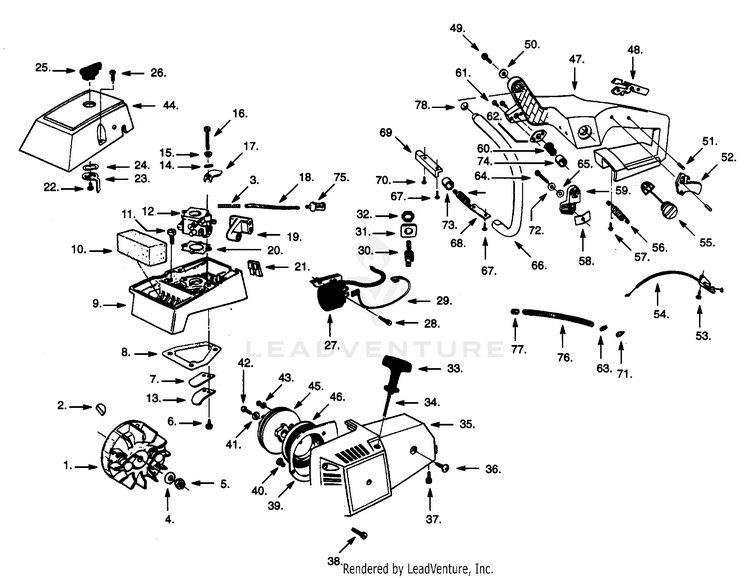

STARTER & SHROUDS

...
...
1
Flywheel Ass'y. (Incl. 8) PLN-530047198
...
2
Flywheel Key PLN-530015126
...
3
Spring PLN-530037264
...
4
Washer PLN-530015127
...
5
Nut PLN-530626605
...
6
SCREW 6-19X.437 PLN-545227101
...
7
Reed Valve PLN-530036331
...
8
Gasket PLN-530019252
...
9
Carburetor Hsg. PLN-530037154
...
10
Air Filter PLN-530023791
...
11
Screw PLN-530015242
...
12
Carburetor PLN-530035353
...
13
Reed Stop PLN-530036332
...
14
Wave Washer PLN-530015254
...
15
Spacer PLN-530023865
...
16
Screw PLN-530015245
...
17
Choke Shutter PLN-530023805
...
18
Line Kit (Bulk#8133) PLN-530069247
...
19
Carb. Adj. Grommet PLN-530036973
...
20
Carb. Gasket PLN-530019045
...
21
Grommet - Throttle Cable PLN-530036972
...
22
Screw PLN-530015407
...
23
Choke Lever PLN-530037070
...
24
Wave Washer PLN-530015147
...
25
Choke Knob PLN-530037116
...
26
Screw PLN-530015168
...
27
Ignition Module PLN-530069403
...
28
Screw PLN-530015816
...
29
Wire Harness PLN-530037014
...
30
Toggle Switch PLN-530026766
...
31
Indicating Plate PLN-530012311
...
32
Switch- Plate and Nut PLN-530002582
...
33
Handle-Starter PLN-530056402
...
34
Rope Kit PLN-530069232
...
35
Fan Hsg. PLN-530037158
...
36
Screw PLN-530015771
...
37
Screw PLN-530016018
...
38
Screw PLN-530015812
...
39
Fan Hsg. Baffle PLN-530037013
...
40
Screw PLN-530015777
...
41
Washer PLN-530015123
...
42
Screw PLN-530016141
...
43
SCREW PLN-530016080
...
44
Carb. Cover PLN-530037155
...
45
Starter Pulley PLN-530069288
...
46
SPRING-STARTER PLN-545008007
...
47
Tank & Handle Assy PLN-530037151
...
48
Throttle Lockout Lever PLN-530036967
...
49
Screw PLN-530016020
...
50
Washer PLN-530016021
...
51
Roll Pin PLN-530015701
...
52
Throttle Trigger PLN-530036986
...
53
Screw PLN-530016016
...
54
Throttle Cable Assy PLN-530036966
...
55
FUEL CAP ASSY W/RET LW PRM PLN-577858601
...
56
Rear Mount Spring PLN-530036954
...
57
Screw PLN-530015906
...
58
Isolator Pad PLN-530024317
...
59
Upper Bracket PLN-530036929
...
60
Spring PLN-530036955
...
61
Screw PLN-530016022
...
62
Isolator Plate PLN-530036946
...
63
Vent Fitting PLN-530024475
...
64
Screw PLN-530015505
...
65
Washer PLN-530015209
...
66
Front Handle PLN-530036939
...
67
Screw PLN-530016018
...
68
AV Strap PLN-530036113
...
69
Isolator Bracket PLN-530036943
...
70
Screw PLN-530016019
...
71
Check Valve PLN-530026119
...
72
Lockwasher PLN-530001642
...
73
Isolator Sleeve PLN-530036953
...
74
Upper Sleeve PLN-530036956
...
75
Fuel Filter Assy PLN-530037016
...
76
Vent Line Kit PLN-530069216
...
77
Vent Plug PLN-530027339
...
78
Spacer PLN-530025678
