Poulan Pro PP221 Gas Chain Saw Type 4

Model: PP221 Gas Chain Saw Type 4

Save Part Not Listed?
product name

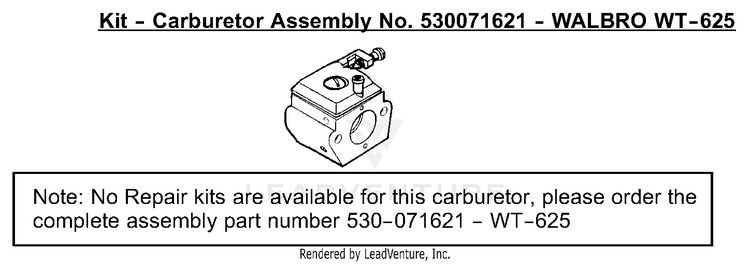

Carburetor Assembly (Walbro WT625) 530071621

...
...
530071621
Carburetor Assembly - WT625 PLN-530071621

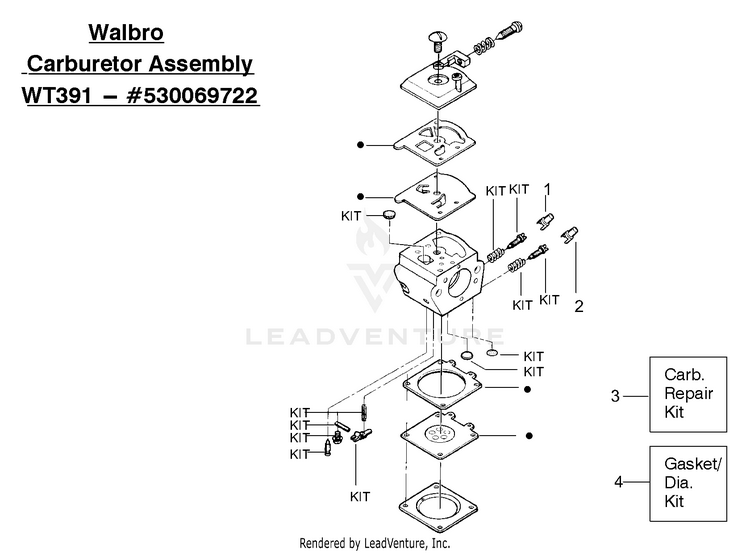

Carburetor Assembly (WT391) 530069722

...
...
1
Limiter Cap-High PLN-530038479
...
2
Limiter Cap-Low PLN-530038478
...
3
Carburetor Repair Kit (KIT=Indicates Contents) PLN-530069826
...
4
Gasket Diaphragm Kit (DOT=Indicates Contents) PLN-530069844
...
530069722
Kit-Carburetor (WT-625) PLN-530071621

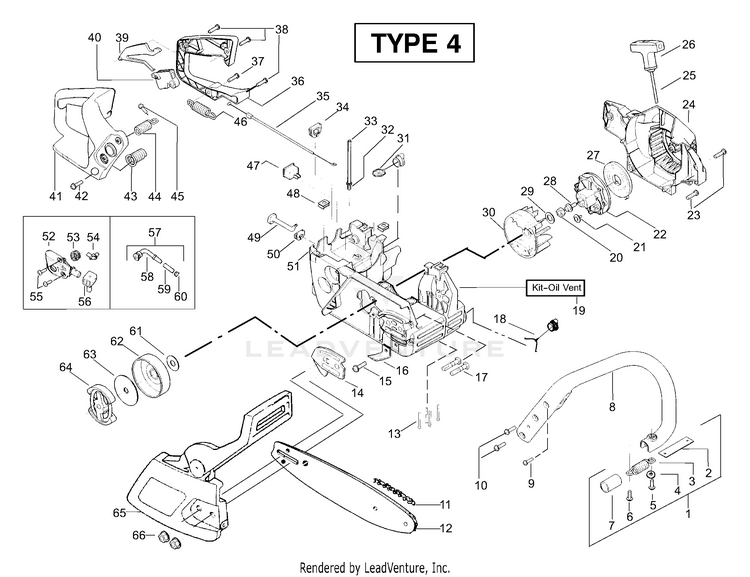

Chassis & Handle Assembly Type 4

...
...
1
SPRING PLN-545006036
...
2
4V STRAP PLN-530037009
...
3
SPRING PLN-545006036
...
4
Washer PLN-530015123
...
5
Screw PLN-530016018
...
6
Screw PLN-530015843
...
7
Sleeve-AV Spring PLN-530036142
...
8
HANDLE PLN-545048001
...
9
Screw PLN-530015940
...
10
Screw PLN-530015814
...
11
ACCY P/PP CHN 16" 56DL 3/8 PLN-581562201
...
12
BAR PLN-578138101
...
13
Screw PLN-530016132
...
14
Plate-Bar Mounting PLN-530038238
...
15
Screw PLN-530015814
...
16
Chain Catcher PLN-530029850
...
17
Bolt-Bar PLN-530016133
...
18
OIL TANK CAP PLN-530057236
...
19
Kit-Oil Check Valve PLN-530071666
...
20
Nut-Flywheel PLN-530016134
...
21
Screw PLN-530016080
...
22
STARTER PULLEY PLN-545034301
...
23
Screw PLN-530015892
...
24
Assy-Fan Housing PLN-530049335
...
25
Kit-Rope PLN-530069232
...
26
Handle-Starter PLN-530056422
...
27
SPRING STARTER PLN-545008015
...
28
Screw PLN-530015920
...
29
Washer-Flywheel PLN-530015127
...
30
FLYWHEEL ASSY PLN-530047534
...
31
FUEL CAP ASSY PLN-580940901
...
32
Fitting-fuel line PLN-530023877
...
33
Kit-Fuel line (large) PLN-530069216
...
34
Grommet-Cable PLN-530047631
...
35
Cable-Throttle PLN-530047602
...
36
Cover-Rear Handle PLN-530047581
...
37
Screw PLN-530015886
...
38
Screw PLN-530015906
...
39
Throttle Lockout PLN-530036098
...
40
Trigger-Throttle PLN-530036097
...
41
Handle-Rear PLN-530047582
...
42
Screw PLN-530015814
...
43
SPRING PLN-545006036
...
44
SPRING PLN-545006036
...
45
Screw PLN-530015875
...
46
SPRING PLN-545006036
...
47
Kit-Switch PLN-530069572
...
48
Nut-"U"-Type PLN-530015922
...
49
Knob-Choke PLN-530047605
...
50
Grommet-Knob PLN-530049005
...
51
Assy-Chassis PLN-530056596
...
52
Kit-Oil Pump (Incl. 53,54,56) PLN-530071259
...
53
Gear-Worm Spring PLN-530037820
...
54
Elbow-Oil Pickup PLN-530049477
...
55
SCREW 6-19X.437 PLN-545227101
...
56
Seal Block PLN-530019206
...
57
Assy-Oil Pickup (Incl. 58-60) PLN-530047663
...
58
Pickup-Oiler PLN-530038373
...
59
Filter-Oil PLN-530056533
...
60
Filter-Oil PLN-530056533
...
61
Washer-Thrust PLN-530015907
...
62
Assy.-Clutch Drum w/bearing PLN-530047061
...
63
Washer-Clutch PLN-530015611
...
64
Assy. Clutch PLN-530014949
...
65
Assy.-Chain Brake PLN-545139915
...
66
Nut-Bar Mounting PLN-530015917

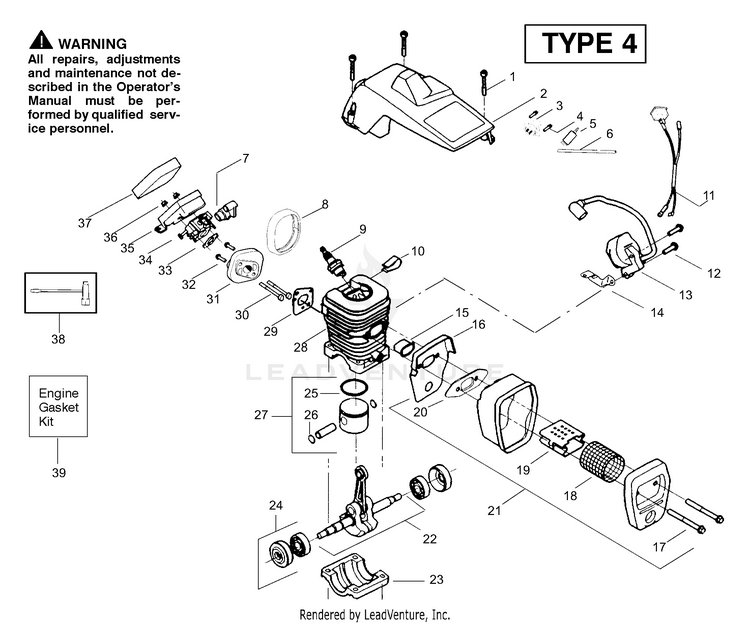

Engine Assembly Type 4

...
...
1
Screw PLN-530016153
...
2
Shield-Cylinder PLN-530071310
...
3
Kit-Purge Bulb PLN-530071835
...
4
Screw PLN-530015780
...
5
Assy-Fuel Pick-up PLN-530095646
...
6
Kit-Line Purge/Carb. (Small Dia) PLN-530069247
...
7
Grommet-Carb Adjust. PLN-530035526
...
8
Seal-Carb Adapter PLN-530054144
...
9
BPMR7A NGK SPARK PLUG PLN-503235111
...
10
Clip-High Tension Lead PLN-530016136
...
11
Assy-Wire Harness (Includes switch) PLN-530049117
...
12
Screw PLN-530015814
...
13
KIT PLN-530071905
...
14
Strap-Ground PLN-530047442
...
15
Insulator-Heat PLN-530037652
...
16
Plate-Muffler Back PLN-530049870
...
17
Screw PLN-530016132
...
18
Screen-Spark PLN-530036103
...
19
Muffler Diffuser PLN-530037813
...
20
Muffler Gasket PLN-530019221
...
21
MUFFLER (Incl. 16-20) PLN-530071904
...
22
CRANKSHAFT ASSY PLN-545113101
...
23
Cap-Crankcase PLN-530037935
...
24
Assy-Seal & Bearing PLN-530056363
...
25
Ring-Piston PLN-545160401
...
26
Retainer-Piston Pin PLN-530015697
...
27
Kit-Piston (Incl. 25,26) PLN-530069719
...
28
Cylinder PLN-530012552
...
29
Gasket-Carb. Adapter PLN-530019249
...
30
Screw PLN-530016187
...
31
Adapter-Carb. PLN-530049700
...
32
Screw PLN-530016386
...
33
GASKET PLN-530019271
...
34
Kit-Carburetor (WT-625) PLN-530071621
...
35
Housing-Air Filter PLN-530047604
...
36
Nut PLN-530016101
...
37
Air Filter-Foam PLN-530037793
...
38
Bar Wrench PLN-530031163
...
39
Kit-Engine Gasket (Incl. 20,29,33) PLN-530069608
...
xx
Operator Manual Not Shown PLN-530163653
...
xx
Instruction Decal Not Shown PLN-530057267
