product name

Poulan Pro PP220 Gas Chain Saw Type 1

Model: PP220 Gas Chain Saw Type 1, 220 Gas Chain Saw

Save Part Not Listed?
product name

Carburetor Assembly

...
...
xx
Kit-Carburetor (WT-625) PLN-530071621
...
1
Limiter Cap-High (brown) PLN-530038479
...
2
Limiter Cap-Low (tan) PLN-530038478
...
3
Carburetor Repair Kit PLN-530069826
...
4
Gasket/Diaphragm Kit (KIT=Indicates Contents) PLN-530069844

Engine Type 1-3

...
...
1
Screw PLN-530016153
...
2
Cylinder Shield PLN-530053183
...
3
Kit-Purge Bulb PLN-530071835
...
4
Screw PLN-530015780
...
5
Fuel Pick-up Ass'y. PLN-530095646
...
6
Kit-Line Purge/Carb. (Small Dia) PLN-530069247
...
7
Kit-Line Purge/Tank (large line) PLN-530069216
...
8
Grommet-Carb Adjust. PLN-530049244
...
9
Limiter Cap-High PLN-530038479
...
10
Limiter Cap-Low PLN-530038478
...
12
BPMR7A NGK SPARK PLUG PLN-503235111
...
13
Clip-High Tension Lead PLN-530016136
...
14
Wire Harness Ass'y (includes switch) PLN-530049117
...
15
Screw PLN-530015814
...
16
Ignition Module PLN-530039198
...
17
Ground Strap PLN-530047442
...
18
Heat Insulator PLN-530037652
...
19
Muffler Back Plate PLN-530049870
...
20
Screw PLN-530016132
...
21
Spark Screen PLN-530036103
...
22
Muffler Diffuser PLN-530037813
...
23
Muffler Gasket PLN-530019221
...
24
MUFFLER (Incl. 19,20, 21,22,23) PLN-530071904
...
25
CRANKSHAFT ASSY PLN-545113101
...
26
Cap-Crankcase PLN-530037935
...
27
Seal & Bearing Assy. PLN-530056363
...
28
Ring-Piston PLN-545160401
...
29
Retainer - Piston Pin PLN-530015697
...
30
Piston Kit (incl. 28-29) PLN-530069719
...
31
Cylinder Kit PLN-530069720
...
32
Gasket - Carb. Adapter PLN-530019249
...
33
Screw PLN-530016187
...
34
Cylinder Shield (incl. 11,2,36,32) PLN-530071310
...
35
Screw PLN-530016386
...
36
GASKET PLN-530019271
...
37
Kit-Carburetor (WT-625) (incl. 9 & 10) PLN-530071621
...
38
Air Filter Housing PLN-530047604
...
39
Nut - Carb. Screw PLN-530016101
...
40
Air Filter - Foam PLN-530037793
...
41
Bar Wrench PLN-530031163
...
42
Engine Gasket Kit (incl. 36,32,23) PLN-530069608
...
42
Operator Manual Not Shown PLN-530163654
...
42
Instruction Decal Not Shown PLN-530038257

Kit - Carburetor Assembly

...
...
530071621
KIT-CARBURETOR (WT-625) PLN-530071621
...
530071820
Kit-Carburetor (Walbro-WT-89) PLN-545081885
...
530071821
Kit-Carburetor (Walbro-WT-89) PLN-545081885

Services Reference

...

No Parts Available for this Schematic

Services Reference

...
...
530015814
SCREW PLN-530015814
...
530053274
SPRING PLN-545006036

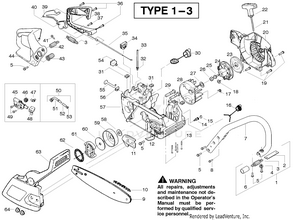

Starter Type 1-3

...
...
1
SPRING PLN-545006036
...
2
4V STRAP PLN-530037009
...
3
SPRING PLN-545006036
...
4
Washer PLN-530015123
...
5
Screw PLN-530015814
...
6
Sleeve-AV Spring PLN-530036142
...
7
HANDLE PLN-545048001
...
8
Screw PLN-530016179
...
9
BAR PLN-578138101
...
9
Bar (16" Pro Lam Quick Adj.) PLN-530044866
...
10
ACCY P/PP CHN 16" 56DL 3/8 PLN-581562201
...
11
Plate-Bar Mounting PLN-530038238
...
12
Chain Catcher PLN-530029850
...
13
Screw PLN-530016132
...
14
Check Valve PLN-530026119
...
15
Plug-Bronze Vent PLN-530038264
...
16
OIL TANK CAP PLN-530057236
...
17
Spring-Starter Dog PLN-530023817
...
18
Screw PLN-530016080
...
19
Screw PLN-530015892
...
20
Fan Housing PLN-530049335
...
21
Rope Kit PLN-530069232
...
22
Handle-Starter PLN-530056422
...
23
SPRING STARTER PLN-545008015
...
24
STARTER PULLEY PLN-545034301
...
25
Screw PLN-530015920
...
26
Nut- Flywheel PLN-530016134
...
27
Washer- Flywheel PLN-530015127
...
28
FLYWHEEL ASSY PLN-530047534
...
29
Bolt - Bar PLN-530016133
...
30
FUEL CAP ASSY PLN-580940901
...
31
Nut - "U"-Type PLN-530015922
...
32
Fitting - Fuel Line PLN-530023877
...
33
Kit-Line purge/tank (large dia.) PLN-530069216
...
34
Grommet-Cable PLN-530047631
...
35
Cable-Throttle PLN-530047602
...
36
Screw PLN-530015906
...
37
Screw PLN-530015886
...
38
Cover-Rear Handle PLN-530047581
...
39
Throttle lockout PLN-530036098
...
40
Throttle trigger PLN-530036097
...
41
Screw PLN-530015875
...
42
SPRING PLN-545006036
...
43
SPRING PLN-545006036
...
44
Rear Handle PLN-530047582
...
45
Oil Pump Kit (Incls. 45- 48) PLN-530071259
...
46
Gear-Worm Spring PLN-530037820
...
47
Elbow-Oil Pickup PLN-530049477
...
48
Seal Block PLN-530019206
...
49
SCREW 6-19X.437 PLN-545227101
...
50
Oil Pick-up Ass'y (Incl. 51-53) PLN-530047663
...
51
Pick-up Oiler PLN-530038373
...
52
Filter-Oil PLN-530056533
...
53
Filter-Oil PLN-530056533
...
54
Kit - Switch PLN-530069572
...
55
Knob - Choke PLN-530047605
...
56
Grommet-Choke knob PLN-530049005
...
57
Assy. - Chassis (incl. 16,29,30,33, and from page two 5,6) PLN-530047621
...
58
Washer - thrust PLN-530015907
...
59
Clutch drum assy- with bearing PLN-530047061
...
60
Washer - Clutch PLN-530015611
...
61
Assy. Clutch (incl 62) PLN-530014949
...
62
Clutch Ass'y. PLN-530014949
...
63
Assy.-Chain Brake PLN-545139915
...
64
Nut-Bar Mounting PLN-530015917
