product name

Poulan Pro PP22 Gas Hedgetrimmer

Model: PP22 Gas Hedgetrimmer, 22 Gas Hedgetrimmer

Back To Assemblies

Save Part Not Listed?
product name

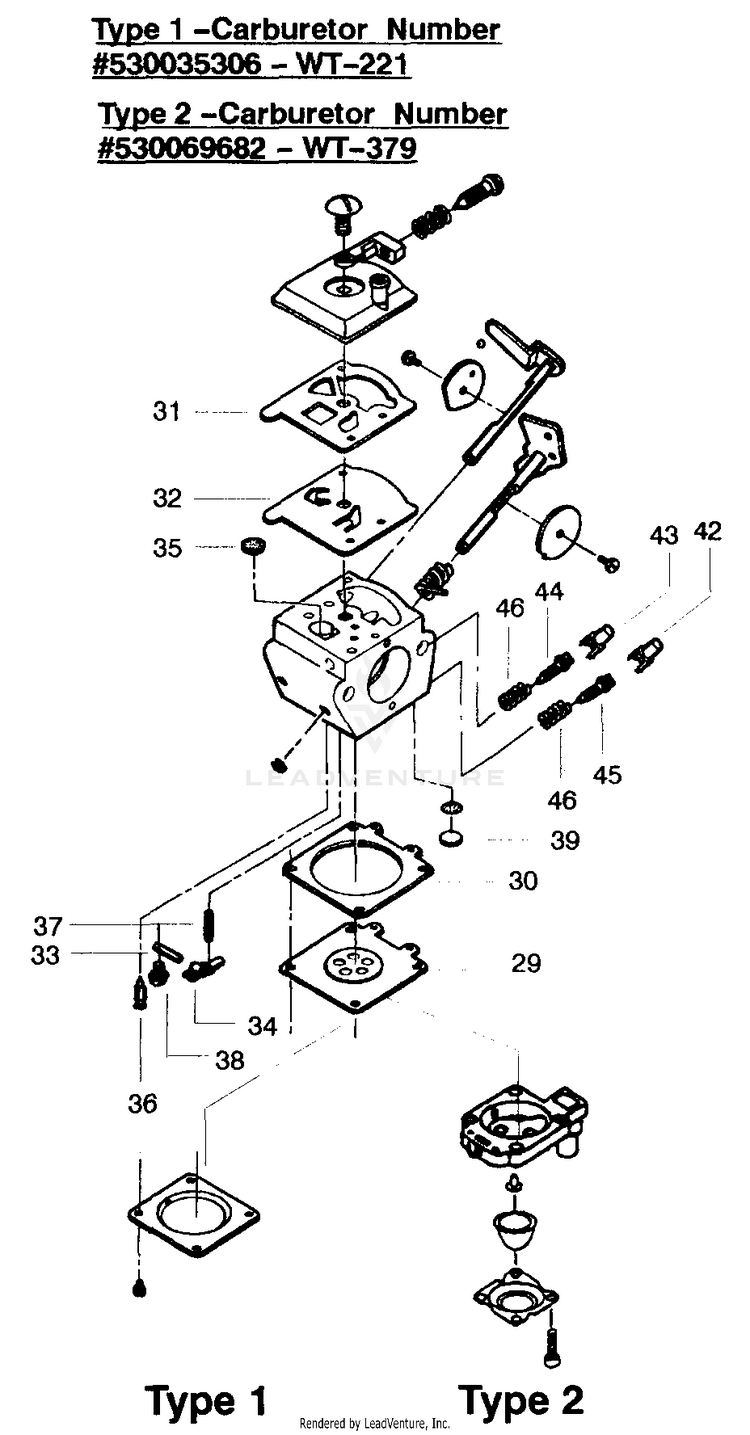

Type 1 Carburetor WT-221

...
...
xx
CARBURETOR PLN-530035305
...
29
DIAPHRAGM PLN-503896701
...
30
Metering Diaphragm Gasket PLN-530035389
...
31
GASKET PLN-504130906
...
32
PUMP DIAPHRAGM PLN-504130807
...
33
Pin PLN-505520125
...
34
Metering Lever PLN-505520127
...
35
Fuel Inlet Screen PLN-530035178
...
36
Needle PLN-503117001
...
37
WT-141 - T1 PLN-530035188
...
38
Metering Lever Pin Screw PLN-530035016
...
39
Welch Plug PLN-530035162
...
44
Needle-High, Walbro New P/N for this IPL PLN-530035407
...
44
Needle-High, Zama New P/N for this IPL PLN-530035443
...
45
Needle-Low, Walbro New P/N for this IPL PLN-530035408
...
45
Needle-Low, Zama New P/N for this IPL PLN-530035444
...
46
Needle Spring, Walbro New P/N for this IPL PLN-530035293
...
46
Needle Spring, Zama New P/N for this IPL PLN-530035445
