Poulan Pro PP22 Gas Hedgetrimmer

Model: PP22 Gas Hedgetrimmer, 22 Gas Hedgetrimmer

Back To Assemblies

Save Part Not Listed?

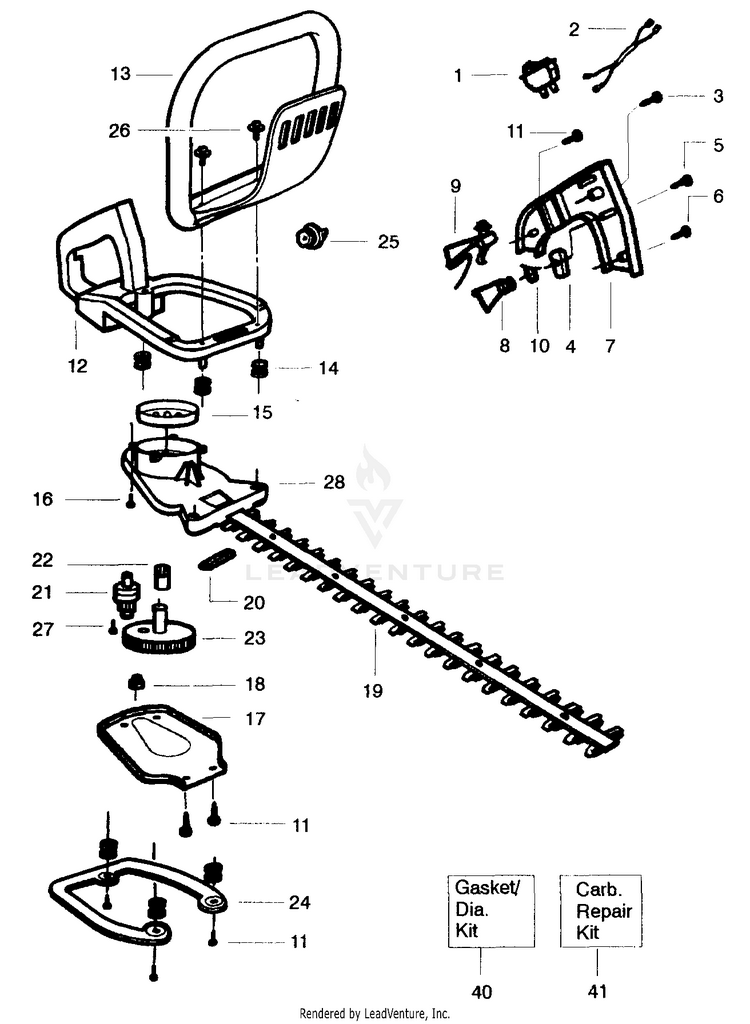

Handle & Blade Assembly

Ignition Switch PLN-530036493

WIRE HARNESS ASSY PLN-545172901

Screw-Handle Cov. PLN-530015775

Trigger Lever PLN-530029958

Screw-Handle Cov. PLN-530015940

Screw-Handle Cov. PLN-530015770

Handle Cover PLN-530038305

Throttle Trigger PLN-530053884

Throttle Lockout PLN-530053900

Trigger Spring PLN-530036123

Screw-Handle Cov. PLN-530015934

Rear Handle/Tank Ass'y. PLN-530047879

Front Handle PLN-530094992

Isolator Spring PLN-530029946

Assy-Drum PLN-530056069

Screw PLN-530015814

Gear Box Plate PLN-530029916

Bushing Blade PLN-530032121

Blade Ass'y. PLN-530403229

Blade Seal PLN-530029948

Pinion Ass'y. PLN-530036228

Drive Gear Bearings PLN-530016013

Drive Gear Kit PLN-530069355

Isolator Plate PLN-530036046

FUEL CAP ASSY W/RET LW PRM PLN-577858601

Screw-Front Handle PLN-530015955

Screw-Gear PLN-530015805

Assy-Gear Box (Incl. 21, 22 & 27) PLN-530071931

Walbro - Gasket/Diaphragm Kit (See "Type 1" or "Type 2 Carburetor" ill. and parts list items 29-32) PLN-530035313

Zama - Gasket/Diaphragm Kit (See "Type 1" or "Type 2 Carburetor" ill. and parts list items 29-32) New P/N for this IPL PLN-530069866

Carb. Repair Kit - Type 1 (See "Type 1 Carburetor" ill. and parts list items 33-40) PLN-530035312

Walbro - Carb. Repair Kit - Type 2 (See "Type 2 Carburetor" ill. and parts list items 33-40, 42-46 & Primer Bulb) PLN-530069656

Zama - Carb. Repair Kit - Type 2 (See "Type 2 Carburetor" ill. and parts list items 33-40, 42-46 & Primer Bulb) New P/N for this IPL PLN-530069867
