Poulan Pro PP195 Gas Trimmer

Model: PP195 Gas Trimmer, 195 Gas Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

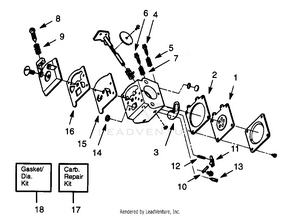

CARBURETOR WA-199 BREAKDOWN

...
...
1
DIAPHRAGM PLN-503896701
...
2
Metering Diaphragm Gasket PLN-530035151
...
3
GASKET PLN-501781301
...
4
H-NEEDLE PLN-501782201
...
5
Hi Speed Needle Spring PLN-530035036
...
6
Idle Needle PLN-530035141
...
7
Idle Needle Spring PLN-530035023
...
8
Idle Speed Screw PLN-530035203
...
9
Spring PLN-501667801
...
10
Pin PLN-505520125
...
11
Metering Lever PLN-505520127
...
12
Metering Lever Spring Included in Gasket/Diaphragm Kit. PLN-530035188
...
13
Needle Included in Gasket/Diaphragm Kit. PLN-503117001
...
14
Inlet Screen Included in Gasket/Diaphragm Kit. PLN-530035178
...
15
PUMP DIAPHRAGM Included in Gasket/Diaphragm Kit. PLN-504130807
...
16
GASKET Included in Gasket/Diaphragm Kit. PLN-504130906
...
17
Carb. Kwik Repair Kit PLN-530035260
...
18
Carb. Gasket/Diaphragm Kit Included in Gasket/Diaphragm Kit. PLN-530035185

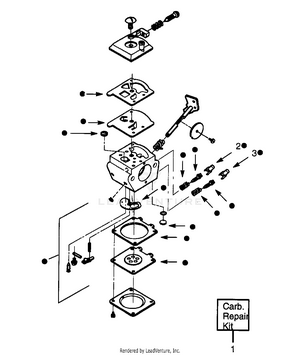

CARBURETORS WT-298,WT-298A BREAKDOWN

...
...
1
Carburetor Repair Kit Parts indicated by an . in illustration are for clarity only, order complete assembly. PLN-530069623
...
2
Limiter Cap-Low PLN-530038317
...
3
Limiter Cap-High PLN-530038318

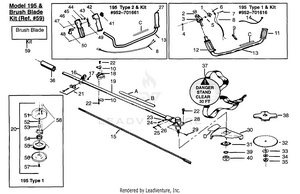

CUTTING HEAD & DRIVE SHAFT

...
...
1
Switch Bracket PLN-530027900
...
2
Handlebar Cap PLN-530027588
...
3
Throttle Lever Ass'y w/Lock(Incl 4 & 17) PLN-530010965
...
4
Nut PLN-530015768
...
5
Spacer PLN-530027689
...
6
Switch- Plate and Nut PLN-530002582
...
7
Screw PLN-530015767
...
8
Type 1 PLN-530027726
...
8
Type 2 PLN-530047144
...
9
Terminal Lock PLN-530027893
...
10
Handlebar Backet PLN-530094572
...
11
Handlebar Grip-Right PLN-530027766
...
12
Handlebar Grip-Left PLN-530027736
...
13
Type 1 PLN-530014103
...
13
Type 2 PLN-530047139
...
14
Tie Strap PLN-530091426
...
15
Drive Shaft PLN-530094566
...
16
Clamp-Harness Ass'y PLN-530094686
...
17
Nut PLN-530015197
...
18
Handlebar Clamp PLN-530012207
...
19
Drive Shaft Housing PLN-530094650
...
20
Twin Line Cutting Head PLN-530094689
...
21
HANDLE KIT PLN-530069347
...
22
Screw (Use w/Metal Shield) PLN-530015791
...
23
Lockwasher PLN-530015328
...
24
Screw PLN-530094612
...
25
Screw PLN-530001711
...
26
Lockwasher PLN-530001642
...
27
Grip-Handlebar-Type 2 PLN-502145101
...
28
GEAR BOX REPLACEMENT KIT PLN-530071781
...
29
Screw PLN-530094616
...
30
SHIELD PLN-530094633
...
31
Shield Retention Plate. PLN-530027615
...
32
8" Brush Blade PLN-952711508
...
33
Washer-Flat-Blade PLN-530015792
...
34
Washer--Belleville PLN-530016240
...
35
Nut-Blade PLN-530015793
...
36
Pad-Drive Shaft Hsg. PLN-530027706
...
37
Shoulder Strap PLN-530094417
...
38
4-Point Blade Optional PLN-952711506
...
39
Seal-Gear Box PLN-530094640
...
40
Dust Cup PLN-530094639
...
41
Rocker Switch PLN-503718201
...
42
Throttle Housing-Left PLN-502208502
...
43
Throttle Lock PLN-502209602
...
44
Spring Throttle Lock PLN-530403152
...
45
Throttle Housing - Right PLN-502208602
...
46
Trigger Spring PLN-502199301
...
47
Screw PLN-503210719
...
48
Screw PLN-503210738
...
49
Throttle Lockout PLN-502199403
...
50
Trigger PLN-502199203
...
51
Hub PLN-530091656
...
52
Line Saver PLN-530091424
...
53
Drive Adaptor PLN-530094690
...
54
Spring PLN-530091657
...
55
Spool w/Line PLN-952711515
...
56
Cover PLN-530091424
...
57
Screw PLN-530091662
...
58
Release Button Ass'y PLN-530093602
...
59
Brush Blade Kit (Inc. 8, 10, 13, 16-19, 22, 27, 30, 31-37 & 41-50) PLN-952701661
...
A
Warning-Upper PLN-530029162
...
B
Warning-Lower PLN-530029163
...
C
Handlebar Warning PLN-530027884
...
D
Blade Direction (Not a serviceable part) PLN-530027749

ENGINE BLOCK & SHROUD

...
...
1
Screw PLN-530015773
...
2
Air Filter Cover PLN-530027529
...
3
Air Filter PLN-530027530
...
4
Screw PLN-530015849
...
5
Spacer PLN-530015852
...
6
Wave Washer PLN-530015254
...
7
Choke Shutter PLN-530038103
...
8
Type 1 PLN-530027527
...
8
Type 2 & 3 PLN-530037930
...
9
Fuel Line PLN-530069247
...
9
Return Line 185R, 195 Type 2 PLN-530069571
...
10
Assy-Fuel Pickup PLN-530095646
...
11
KIT CARBURETOR ASSY PLN-545081825
...
11
Type 2 & 3 (WT-298B) PLN-530069651
...
12
Carburetor Gasket PLN-530019156
...
13
Fuel Cap Ass'y. PLN-530014347
...
14
Screw PLN-530015775
...
15
175, 185 & 195 Type 1 PLN-530037497
...
15
185R & 195 (Type 2) PLN-530047040
...
16
175, 185 & 195 Type 1 PLN-530027995
...
16
185R & 195 (Type 2) PLN-530047087
...
17
Gasket PLN-530019154
...
18
Reed PLN-530027593
...
19
Reed Stop PLN-530027594
...
20
Connecting Rod Ass'y. (Inc. Bearings) PLN-530010960
...
21
Crankshaft Ass'y. See Service Reference 1 PLN-530010934
...
22
Flywheel Key PLN-530015126
...
23
Screw PLN-530015772
...
24
Screw PLN-530015771
...
25
Crankcase Ass'y. (Inc. 33-36) PLN-530014016
...
26
Assy-C'case/C'shaft PLN-530071705
...
27
SCREW 6-19X.437 PLN-545227101
...
28
Piston Pin Retainer PLN-530015162
...
29
Piston Ring PLN-530025875
...
30
GASKET CYL W/ ADHESIVE PLN-530019267
...
31
Piston Kit (Inc. 28, 29, Pin) PLN-530069277
...
33
Inner Bearing PLN-530032103
...
34
Retaining Ring PLN-530015787
...
35
Crankshaft Seal PLN-530019158
...
36
Outer Bearing PLN-530032102
...
37
Crankshaft Ret. Ring PLN-530015789
...
38
Screw PLN-530015717
...
39
Muffler Guard PLN-530027781
...
40
Muffler Kit PLN-530069310
...
41
Muffler Spring PLN-530036409
...
42
Kit-Cylinder PLN-530071581
...
42
Kit-Cylinder PLN-530071581
...
43
Type 1 & 2 (CJ-14) PLN-530030077
...
43
Type 3 (RCJ-8Y) PLN-530030075
...
44
Screw PLN-530015239
...
45
Ignition Module Kit PLN-530039134
...
46
Screw PLN-530015816
...
47
Flywheel Ass'y. PLN-530039189
...
48
Washer PLN-530016030
...
49
Fan Housing PLN-530027945
...
50
Kit-Starter Pulley PLN-530071387
...
51
STARTER SPRING PLN-545008010
...
52
Starter Handle PLN-530027569
...
53
Rope Kit PLN-530069232
...
54
Pulley Hsg. Ass'y. PLN-530014022
...
55
Clutch Washer PLN-530094189
...
56
Clutch PLN-530069254
...
57
Washer PLN-530015796
...
58
Nut PLN-530001733
...
59
Clutch Housing PLN-530014023
...
60
Screw PLN-530015767
...
61
Spacer PLN-530027511
...
62
Screw PLN-530015770
...
63
Screw PLN-530015769
...
64
Screw PLN-530015496
...
65
Pulley Retainer PLN-530027523
...
66
Locknut PLN-530015768
...
67
Engine Gasket Kit (Inc. 12, 17 & 30) PLN-530069276
...
68
Spark Arrestor Kit PLN-952701612
...
69
Screw-Pulley PLN-530016080
...
70
185 & 195 (Type 1) PLN-530027690
...
70
185R & 195 (Type 2) PLN-530047145
...
71
Primer Bulb Ass'y. Type 2 & 3 PLN-530038874
...
72
Screw-Type 2 & 3 PLN-530016091
...
73
Connector 185R & 195 (Type 2) PLN-530038205
...
74
Screw-Starter Spring Type 3 PLN-530015882
...
75
Switch Insulator PLN-530027546
...
76
Switch Ramp PLN-530027545
...
77
Switch Button PLN-530038309
...
78
Switch Spring PLN-530027959
...
79
Lead Wire PLN-530027547
...
80
Screw PLN-530015780
...
xx
175 Not Shown. PLN-530029012
...
xx
185 & 195 Type 1 Decal (Not a serviceable part) Not Shown. PLN-530037988
...
xx
185R & 195 (Type 2) Not Shown. PLN-530038046
...
xx
185R Type 3 Not Shown. PLN-530047451
...
xx
175 Not Shown. PLN-530014056
...
xx
185 & 185R 195 Not Shown. PLN-530014013
...
xx
Type 1 Not Shown. PLN-530014021
...
xx
Type 2 Not Shown. PLN-530047135
...
xx
175 Not Shown. PLN-530067349
...
xx
185 Not Shown. PLN-530082112
...
xx
185R Not Shown. PLN-530083178
...
xx
195 Not Shown. PLN-530082111
...
...
...
