Poulan Pro PP136E Gas Trimmer Type 2

Model: PP136E Gas Trimmer Type 2

Save
Part Not Listed?Part Not Listed?
product name

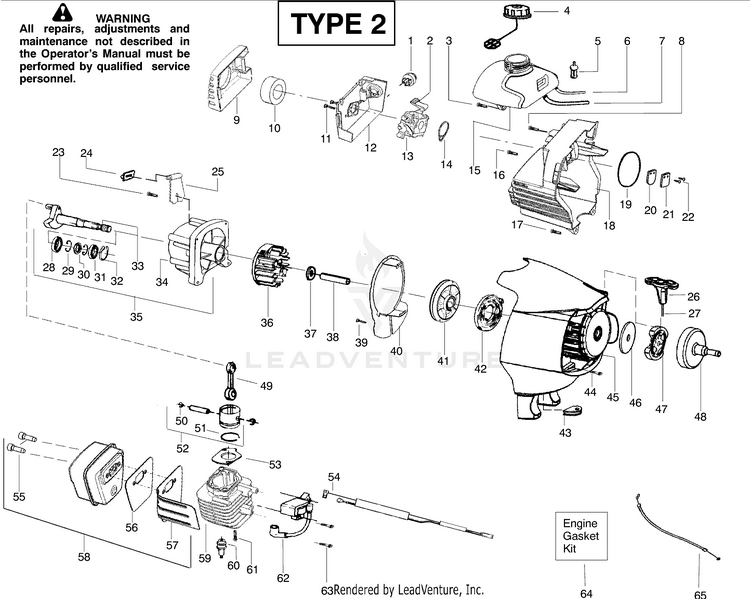

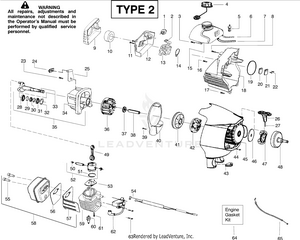

Engine Assembly Type 2

...
...
1
Bulb-Purge PLN-530047721

...
2
Kit-Choke Lever PLN-530071717

...
3
Screw-tank PLN-530015843

...
4
Assy - Fuel Cap w/retainer PLN-530057973

...
5
Assy-Fuel pickup PLN-530095646

...
6
Kit-Fuel Line PLN-530069247

...
7
Kit-Fuel/Purge line PLN-530069216


...
9
Cover-Air box PLN-545000501

...
10
Filter-Air PLN-545082301

...
11
Screw-Carb. PLN-530015849

...
12

...
13
Kit-Carb assy. (C1U-W32) (Note: Repair kits are not available for this carburetor) PLN-545006017

...
14
Seal-Carb. (kit) PLN-545030102

...
15
Assy-Fuel Tank PLN-545075305

...
16
Screw-Crankcase PLN-530015771

...
17
Screw-Shroud PLN-530015952

...
18
Assy-Rear Shroud PLN-545000701

...
19
O-ring-Shroud (kit) PLN-545030102

...
20
Valve-Reed PLN-530027593

...
21
Stop-Reed PLN-530029781

...
22
SCREW 6-19X.437 PLN-545227101

...
23
Screw-Retainer PLN-530015875

...
24
Isolator-Tank PLN-530055492

...
25
Ret.-Tank PLN-530054941

...
26
Handle-Starter PLN-530054834

...
27

...
28
Bearing-Inner PLN-545081601

...
29


...
31
Bearing-Outer PLN-530032102

...
32
Ret.-Crankshaft PLN-530015789

...
33
Assy-Crankshaft PLN-530028807

...
34
Assy-Crankcase Incl. 28,29,30,31 PLN-545081901

...
35
Assy-C’case/C’shaft Incl. 32,33,34 PLN-545006037

...
36
Assy-Flywheel PLN-530055524

...
37

...
38

...
39
Screw-Baffle PLN-530015775

...
40
Plate-Baffle PLN-545115201

...
41
Kit-Pulley PLN-545050408

...
42
KIT STARTER SPRING PLN-545008014

...
43

...
44
Screw-F/hsg. PLN-530016386

...
45
Assy-Fan Housing PLN-530055248

...
46
Washer-Clutch PLN-530094189

...
47
Assy-Clutch PLN-530055122

...
48
Assy-Drum/Adapter PLN-530150247

...
49
Assy-Conn. Rod PLN-530010960

...
50
Ret.-Piston pin PLN-530015162

...
51
Ring-Piston PLN-530012594

...
52
Kit-Piston Incl. 50,51 PLN-530071998

...
53
Gasket-Cylinder (kit) PLN-545030102

...
54
Assy-Leadwire PLN-530058846

...
55
Bolt-Muffler 1/4"-20 PLN-530016387

...
56
Gasket-Muffler (kit) PLN-545030102

...
57

...
58
Kit-Muffler Incl. 55,56,57 PLN-545006016

...
59

...
60
Plug-Spark(RCJ-6Y) PLN-952030249

...
61
Bolt-Cyl. 1/4"-20 PLN-530001624

...
62
Kit - Ignition Module PLN-545081826

...
63
Screw-Module PLN-530016357

...
64
Kit-Gasket/Seal Incl. 14,19, 53,56 PLN-545030102

...
65
Assy-Throttle cable PLN-545026801

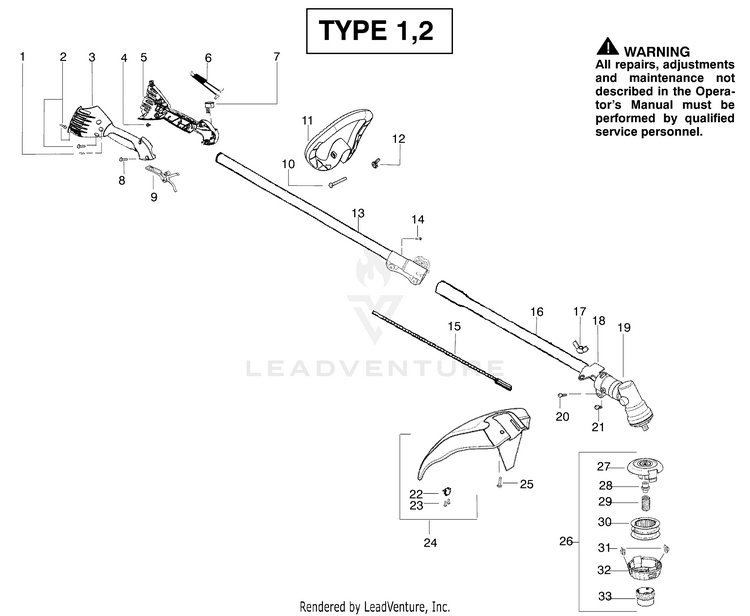

Handle & Shaft Assembly Type 1,2

...
...
1
Screw-alignment PLN-530015805


...
3
Hsg.-Throttle right PLN-530057983

...
4
Screw-Cable Retention PLN-530016326

...
5
Hsg.-Left throttle PLN-530057984

...
6
Assy-Wire PLN-530058843

...
7
Kit-Switch PLN-530069572


...
9
TRIGGER THROTTLE RED PLN-545017701


...
11
Assy-Handle Incl. 10,12 PLN-530058583


...
13
KIT UPPER SHAFT BLACK Incl. flex,clamp & 14 PLN-575260201

...

...
15
Shaft-Flex (lower) PLN-530096218

...
16
Kit-Lower Shaft PLN-530071789


...
18
Bracket-Shield PLN-530057554

...
19

...

...

...
22
Limiter-Line PLN-530052285

...

...
24
Kit-Shield Assy. incl. 22,23 PLN-530071765


...
26
TRIMMER HEAD Incl. 27,28,29,30,31,32,33 PLN-537419211

...
27

...
28

...
29

...
30
Accy-Wound Spool PLN-952711631

...
31
Kit-Cover and Eyelet PLN-545003365

...
32
Kit-Cover and Eyelet PLN-545003365


...
xx
Operator Manual Not Shown PLN-545137291

...
xx
Decal-Shaft Warning Not Shown PLN-545209101

...
xx
Decal-Upper Shaft Not Shown PLN-530057296
...
...
...
