Poulan Pro PP133 Gas Trimmer

Model: PP133 Gas Trimmer

Save
Part Not Listed?Part Not Listed?

product name

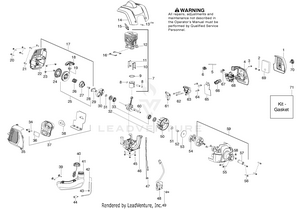

Engine

...
...
1
Cover-Airbox PLN-545177001

...
2
Nut-Carb. Screw PLN-530016101

...
3
Screw 8-32 PLN-530016301

...
4
Base-Airbox PLN-545176901

...
6
Purge Bulb PLN-530047721

...
7
Kit-Piston/Cyl. (Incl. 8,9,10,11,12) PLN-545008046

...
8
Retainer-Piston pin PLN-545194801

...
9
Ring-Piston PLN-545194601

...
10
Insert-Front Transfer Port PLN-545194901

...
11
Insert-Rear Transfer Port PLN-545195001

...
12
Cylinder-Machined PLN-545181801

...
13
Screw M4 x1.75 x 16mm PLN-530016449

...
14
Cover-Top PLN-545156401

...
15
Spark Plug (RCJ- 6Y) PLN-952030249

...
16
Seal-Cylinder(Kit) PLN-545008044

...
17
Assy-Shroud Rear (Incl. 18,19,22,23,24,25) PLN-545190701

...
18
Handle-Starter PLN-545208401

...
19

...
20
Screw M4 x .8 x 25mm PLN-530015897

...
21
Screw M4 x 1.75 x 16mm PLN-530016449

...
22
Housing-Starter w/eyelet PLN-545190601

...
23

...
24
Kit-Starter Spring PLN-545008013

...
25
Kit-Pulley (Incl 26,27,28) PLN-545008049

...
26
Spring-Starter Hub PLN-545188301

...
27
Hub-Starter PLN-545188001

...
28

...
29
Coupling-Starter PLN-545188201

...
30
Assy-Starter Cup PLN-545188701

...
31
Washer-Flat PLN-530015828

...
32
Seal-Crankshaft (kit) PLN-545008044

...
33
Bearing-Crankshaft PLN-545013401

...
34
Bolt-Muffler PLN-530058982

...
35
Guard-Muffler PLN-545156301

...
36
SPARK ARRESTER PLN-545224001

...
37
Assy-Muffler (Incl. 34,36,38) PLN-545180701

...
38
Gasket-Muffler (kit) PLN-545008044

...
39
Screw-Tank Retainer PLN-530016445

...
40
Assy - Fuel Cap w/retainer PLN-530057973

...
41
ASSY FUEL TANK (Incl. 40,42,43,44) PLN-578942701

...
42
Kit-Fuel line (Incl. 43) PLN-530069599

...
43
Fitting-Fuel Line PLN-530023877

...
44
Assy-Fuel Pickup PLN-530095646

...
45
Screw-m5x25mm PLN-530015897

...
46
Crankcase PLN-545181901

...
47
Assy-Leadwire PLN-545191601

...
48
Module-Ignition PLN-545189701

...
49
Screw 8-32 PLN-530016357

...
50
Assy-Flywheel PLN-545120401

...
51

...
52
Spacer-Flywheel PLN-530057852

...
53
Washer-Clutch PLN-530094189

...
54
Assy-Clutch PLN-530055122

...
55
Screw 10-24 x 1" PLN-530015774

...
56
Screw M5 x 25mm PLN-530015897

...
57
Guide-Clutch Drum PLN-545186401

...
58
Locknut 10-24 PLN-530015768

...
59
Assy-Fan Hsg (Incl.55,57,58) PLN-545190801

...
60
CRANKSHAFT PLN-545194001

...
61
Gasket - Adapter / Cyl.(kit) PLN-545008044

...
62
Bolt M5 x .80 PLN-530016418

...
63
Adaptor-Carburetor PLN-575391501

...
64
Screw .20 x 32 PLN-530016441

...
65
Gasket-Carb./Adapter(kit) PLN-545008044

...
66
Boot-Carb. PLN-545190501

...
67
Lever - Choke (red) PLN-574719701

...
68
CARBURETOR (Incl. 5,6) PLN-545189502

...
69
Filter-Air PLN-545195901

...
70
Assy-Airbox Knob PLN-545188801

...
71
Kit - Gasket (Incl. 16,32,38,61,65) PLN-545008044

Shaft & Handle

...
...
1
Assy-Switch Wire PLN-545191801

...
2
Housing-Throttle (RH) PLN-545187602

...
3

...
4
Screw 10-14 x 1/2 PLN-530015805

...
5
Spring-Trigger PLN-545190001

...
6
Kit - Trigger (Incl. 5) PLN-545008077

...
7
Bolt - 1/4-20 x 2 PLN-530015786

...
8
Assy - Throttle Cable PLN-545199301

...
9
Housing-Throttle (LH) PLN-545187502

...
10
Kit-Switch PLN-545008040

...
11
Assy - Handle Assist (Incl. 7,12) PLN-530058583


...
13
KIT UPPER SHAFT BLACK (Incl.#14) PLN-575260201

...
14
ASSY COUPLER BLACK PLN-545213801

...
15
Flexshaft PLN-545132002

...
16
Kit-Driveshaft Lower PLN-545180854

...
17
Kit-Shield (Incl. 18,19,22,23) PLN-545003325

...
18
Limiter-Line PLN-530052286

...
19
Screw - 10-14 x 3/4 PLN-530015814

...
20
Screw - 8-16 x .593 PLN-530015775

...
21
Screw - 12-24 x .960 PLN-530016014

...
22
Bolt - 1/4-20 x 1-1/4 PLN-530015820


...
24
Bracket - Shield PLN-545150701

...
25
Assy - Gearbox 1" PLN-530096099

...
26
Assy - Fixed Line Head (Incl. line & cap) PLN-545053902

...
27
Accy - Line (12 pcs ) PLN-952711635

...
28
Cap - Fixed Line PLN-545049501

...
28
Manual Not Shown PLN-115249426

...
28
Decal-Shaft Warning (lower) Not Shown PLN-545209101

...
28
Decal-Shaft Warning (upper) Not Shown PLN-545167716

...
28
Decal - California Spark / Hand Not Shown PLN-527291101
...
...
...
