Poulan Pro PP1238A Tractor

Model: PP1238A Tractor

Save
 Part Not Listed?Part Not Listed?
product name

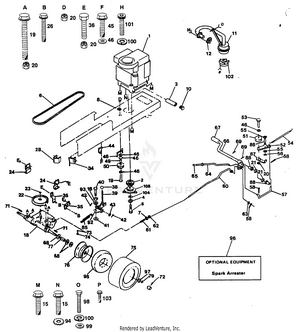

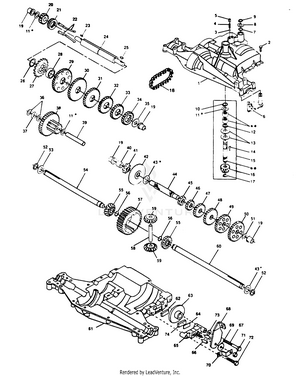

DRIVE

...
...
1
Engine 12 HP, Briggs & Stratton Model No. 281707, Type No. 0413-01 PLN-532124149
...
2
Pulley, Engine (AYP part number) PLN-532140189
...
3
Pipe, Drain, Oil (AYP part number) PLN-532127222
...
4
WASHER 7/16 LOCK PLN-539990247
...
5
Bolt, Hex 7/16-20 x 1-1/4 (AYP part number) PLN-871130720
...
6
V-Belt, Drive (AYP part number) PLN-532125907
...
7
LOCKNUT PLN-873680600
...
8
Clip, Insulated (AYP part number) PLN-532002751
...
11
Muffler (AYP part number) PLN-532125610
...
12
Gasket Eng 1 313 Id Tin Plated (AYP part number) PLN-532272293
...
15
BOLT PLN-874760620
...
16
Washer, Lock 1/4 (AYP part number) PLN-810040400
...
18
Transaxle Foote, 6 Speed, Model No. 4360-7 (AYP part number) PLN-532120898
...
19
Bolt, Hex 3/8-16 x 2-3/4 (AYP part number) PLN-874760644
...
20
Nut, Crownlock 3/8-16 PLN-873680600
...
21
Washer 21/32 x 1 x 16 Ga (AYP part number) PLN-819211616
...
22
Pulley, Transaxle (AYP part number) PLN-532123666
...
23
Ring, Retainer (AYP part number) PLN-812000028
...
24
Bracket, Transaxle (AYP part number) PLN-532109167
...
26
HCS 5/16C X 3/4 PLN-539976934
...
28
Keeper, Belt, L.H. (AYP part number) PLN-532127275
...
34
Keeper, Belt, R.H. (AYP part number) PLN-532127274
...
35
Strap, Torque, Transaxle (AYP part number) PLN-532121520
...
36
Bolt, Hex 3/8-16 x 3/4 (AYP part number) PLN-874760612
...
38
Knob, Shift (AYP part number) PLN-532106933
...
39
Rod, Shift (AYP part number) PLN-532124461
...
40
Bolt, Shift Plate (AYP part number) PLN-871040412
...
41
Washer, Shift Plate (AYP part number) PLN-532105701
...
42
Pin, Cotter 1/8 x 1 (AYP part number) PLN-876020416
...
43
Washer 15/32 x 3/4 x 16 Ga. (AYP part number) PLN-819151216
...
44
Keeper Belt Chassis Span Ctr (AYP part number) PLN-532136715
...
45
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 (AYP part number) PLN-874780612
...
46
WASHER PLN-734117201
...
48
Retainer, Belt (AYP part number) PLN-532109070
...
49
SPACER T PLN-532124965
...
50
Idler, Flat (AYP part number) PLN-532123674
...
51
Pulley, Idler V Groove (AYP part number) PLN-532139245
...
52
Arm,Idler (AYP part number) PLN-532123789
...
53
Bolt, Hex Head 3/8-16 UNC x 1-1/2 (AYP part number) PLN-874930624
...
54
Spring, Return Clutch (AYP part number) PLN-532105709
...
55
Washer, Hardened (AYP part number) PLN-532110812
...
56
Ring, Klip (AYP part number) PLN-812000039
...
57
LINK.CLUTCH.7.66.2005 PLN-532199652
...
58
Pin, Cotter 1/8 x 3/4 (AYP part number) PLN-876020412
...
60
Rod, Brake (AYP part number) PLN-532110437
...
61
SPRING, BRAKE ROD PLN-532151332
...
62
NUT.HEX.3/8-16UNC PLN-873220600
...
63
Washer 13/32 x 13/16 x 16 Ga. (AYP part number) PLN-819131316
...
64
Rod, Brake, Parking (AYP part number) PLN-532125638
...
65
Cap, Plunger (AYP part number) PLN-532071673
...
66
Shaft, Foot Pedal (AYP part number) PLN-532122424
...
67
PEDAL COVER PLN-532008883
...
68
Washer 25/32 x 1-1/4 x 16 (AYP part number) PLN-532121749
...
69
Pin, Roll 3/16 x 1 (AYP part number) PLN-532001572
...
71
Key, Square 2.5 x .1845/.1865 (AYP part number) PLN-532123583
...
72
Cap, Hub (AYP part number) PLN-532104757
...
73
Cap, Valve (AYP part number) PLN-532059192
...
74
Stem, Valve (AYP part number) PLN-532065139
...
75
Tire, Rear (AYP part number) PLN-532123969
...
76
RIM.ASM.8"REAR.YELLOW.SERVICE PLN-532125122
...
77
Spacer (AYP part number) PLN-532109502
...
79
E-Ring (AYP part number) PLN-812000001
...
85
SPRING,BRAKE RETURN PLN-532146682
...
86
Bearing (AYP part number) PLN-532105706
...
87
Retainer, Belt (AYP part number) PLN-532123205
...
88
Bearing, Nylon (AYP part number) PLN-532120183
...
91
Spring (AYP part number) PLN-532105700
...
92
Plate, Shift (AYP part number) PLN-532106919
...
93
WASHER PLN-531003379
...
94
SLW 3/8 STD PLN-539990118
...
95
TUBE - UNIVERSAL FOR 8" RIM PLN-532007152
...
96
Spark Arrester (AYP part number) PLN-532123110
...
97
Washer 25/32 x 1-5/8 x 16 Ga. (AYP part number) PLN-532121748
...
98
BOLT PLN-874780416
...
99
Washer 9/32 x 5/8 x 16 Ga. (AYP part number) PLN-819091016
...
100
Washer, Lock, Heavy Helical Spring (AYP part number) PLN-810040500
...
101
Screw, Hex Head Cap 5/16-18 x 5/8 (AYP part number) PLN-871070510
...
102
Deflector, Muffler (AYP part number) PLN-532101326
...
103
SCREW.HEX.WS.HD.8-18 X 7/8 PLN-532161464
...
104
Washer 1-1/2 x 15/32 x 1/4 (AYP part number) PLN-532126197
...
105
KIT CLUTCH ELECT REPL PLN-532142600
...
xx
Decal, Engine Maintenance (AYP part number) Not Shown. PLN-532121120
...
xx
Decal, HP, Engine (AYP part number) Not Shown. PLN-532120601
...
xx
Decal, V-Belt, Ground Drive (AYP part number) Not Shown. PLN-532109199

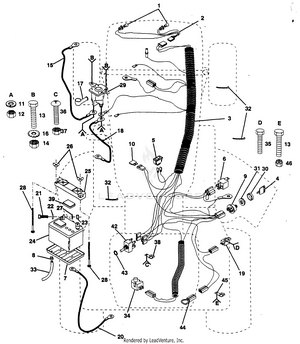

ELECTRICAL

...
...
1
LIGHTBULB PLN-532004152
...
2
Harness, Light Socket (AYP part number) PLN-532110859
...
3
Harness, Ignition (AYP part number) PLN-532128421
...
4
Key, Molded (AYP part number) PLN-532122147
...
5
Switch, Light (AYP part number) PLN-532110712
...
6
Relay (AYP part number) PLN-532109748
...
7
TRAY.BATTERY PLN-532007603
...
8
Clamp, Hose (AYP part number) PLN-532109596
...
9
KIT.SWITCH.IGNITN PLN-532365402
...
10
Fuse (AYP part number) PLN-532108824
...
11
LOCKWASHER PLN-810040400
...
12
NUT.HEX..25-20.UNC PLN-532050675
...
13
HCS 1/4-20. PLN-539990071
...
14
NUT.CROWNLOCK.1/4 PLN-873680400
...
15
Cable Assembly (AYP part number) PLN-532108423
...
16
LOCKWASHER PLN-810040400
...
17
Cover, Terminal (AYP part number) PLN-532124783
...
18
Cable, Battery (AYP part number) PLN-532005114
...
19
Switch, Interlock (AYP part number) PLN-532104445
...
20
Cable, Battery (AYP part number) PLN-532124773
...
21
Bolt, Hex 1/4-20 x 3/4 (AYP part number) PLN-874760412
...
22
Washer 9/32-5/8 x 16 Gauge (AYP part number) PLN-819091016
...
23
NUT.HEX..25-20.UNC PLN-532050675
...
24
BATTERY.DRY.30.AMP PLN-532123899
...
25
BATTERY HOLDDOWN PLN-532150109
...
26
PLN-532146525
...
27
Washer, Lock, Heavy Helical Spring (AYP part number) PLN-810040400
...
28
Bolt, Carriage 1/4-20 x 7-1/2 (AYP part number) PLN-872240460
...
29
Solenoid (AYP part number) PLN-532109081
...
30
KIT.IGN.BOOT/NUT PLN-584446901
...
31
Nut, Ignition (AYP part number) PLN-532124211
...
32
WIRE TIE PLN-532007192
...
33
Tube, Battery Drain (AYP part number) PLN-532109238
...
34
SWITCH.SNAPMOUNT.NC PLN-532421062
...
35
Screw, Hex Tapping #10-24 UNC x 1/2 (AYP part number) PLN-817021008
...
36
Screw, Slotted Pan Head #10-32 x 1/2 (AYP part number) PLN-874641008
...
37
Nut, Keps #10-32 x 1/2 (AYP part number) PLN-873951000
...
38
Clip, Insulated (AYP part number) PLN-532124967
...
39
Caps, Battery (AYP part number) PLN-532121264
...
42
P.T.O. Switch (AYP part number) PLN-532004021
...
43
Hex Nut (AYP part number) PLN-532004022
...
44
Loop, Wire (AYP part number) PLN-532102501
...
45
Clip, Insulated (AYP part number) PLN-532124995
...
46
Nut, Crownlock 1/4-20 (AYP part number) PLN-873680400
...
xx
Sheet, Instruction, Tractor, 15 Degrees Slope (AYP part number) Not Shown. PLN-532101539
...
xx
Manual, Operator's Not Shown. PLN-532127964

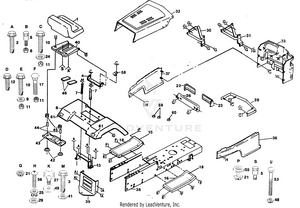

ENCLOSURE

...
...
1
Seat (AYP part number) PLN-532127428
...
2
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 (AYP part number) PLN-874780612
...
3
SCREW 3/8-16X1 PLN-817000616
...
4
Bracket, Pivot, Seat (AYP part number) PLN-532126656
...
5
BOLT.SHOULDER.5/16-18 PLN-532139888
...
6
NUT.71038.31-18.HEX.NYLOCK PLN-873800500
...
7
SPRING.COMPRESSION.SEAT.BLACK PLN-587613301
...
8
532109872 PLN-532109872
...
9
WASHER PLN-734117201
...
10
Bolt, Hex,Washer Thread Rolling 3/8 (AYP part number) PLN-874760612
...
11
Nut, Crownlock 3/8 - 16 PLN-873680600
...
12
Screw, Hex,Washer Thread Rolling 3/8-16 x 12 (AYP part number) PLN-817490608
...
13
Bracket, Fender (AYP part number) PLN-532109873
...
15
Footrest, L.H. (AYP part number) PLN-532124888
...
16
Footrest, R.H. (AYP part number) PLN-532124889
...
17
Bolt, Carriage 3/8-16 x 3/4 (AYP part number) PLN-872110606
...
18
Pad, Footrest (AYP part number) PLN-532128866
...
21
Pal Nut 1/4-20 (AYP part number) PLN-532108067
...
22
Lens, L. H. (AYP part number) PLN-532108361
...
23
Lens, R.H. (AYP part number) PLN-532108360
...
24
Washer 13/32 x 3/4 x 10 Ga. (AYP part number) PLN-819131210
...
25
Retainer (AYP part number) PLN-532127316
...
26
Bezel, Headlight (AYP part number) PLN-532110897
...
27
KNOB.SEAT.ADJ.WINGNUT PLN-532166369
...
28
Strap Assembly Grill (AYP part number) PLN-532125113
...
29
Plastic Grommet (AYP part number) PLN-532127318
...
30
Hinge, Hood, L.H. (AYP part number) PLN-532105797
...
31
Hinge, Hood, R.H. (AYP part number) PLN-532105792
...
32
Hood Assembly (AYP part number) PLN-532125114
...
33
Grill Assembly PLN-532128313
...
36
Side Panel, R. H. (AYP part number) PLN-532125115
...
37
Side Panel, L. H. (AYP part number) PLN-532125116
...
38
Chassis Assembly (AYP part number) PLN-532127168
...
39
Drawbar (AYP part number) PLN-532127866
...
40
Pan, Seat (AYP part number) PLN-532124294
...
41
Washer 13/32 X 1 X 12 Ga (AYP part number) PLN-819131612
...
42
Bushing, Snap (AYP part number) PLN-532121248
...
43
BRKT.MNTNG.SWITCH.SEAT.BLACK PLN-532174648
...
44
Spacer, Split (AYP part number) PLN-532121249
...
45
Spring, Compression (AYP part number) PLN-532121250
...
46
Strip, Foam (AYP part number) PLN-532121251
...
48
NUT.CROWNLOCK.1/4 PLN-873680400
...
49
Washer 17/32 x 1-3/16 x 12 Ga. (AYP part number) PLN-819171912
...
53
Bolt, Carriage 1/4-20 x 1-1/4 (AYP part number) PLN-872170410
...
55
Washer 9/32 x 3/4 x 16 Ga. (AYP part number) PLN-810901216
...
56
Screw, Special (AYP part number) PLN-532127317
...
58
Clip, Insulated (AYP part number) PLN-532002751
...
59
Grommet (AYP part number) PLN-532009151
...
60
Grommet (AYP part number) PLN-532124934
...
61
Reflector, Taillight (AYP part number) PLN-532106202
...
xx
Decal, Clutch/Brake (AYP part number) Not Shown. PLN-532101892
...
xx
Decal, Grill Not Shown. PLN-532127630
...
xx
Decal, Hood, L.H. (AYP part number) Not Shown. PLN-532127618
...
xx
Decal, Hood, R.H. (AYP part number) Not Shown. PLN-532127619
...
xx
Decal, Fender and Grill (AYP part number) Not Shown. PLN-532127622
...
xx
Decal, Fender, R.H. (AYP part number) Not Shown. PLN-532127650
...
xx
Decal, Fender, L.H. (AYP part number) Not Shown. PLN-532127644
...
xx
Decal, Operating Instruction (AYP part number) Not Shown. PLN-532120822
...
xx
Decal, Chassis, 12 HP (AYP part number) Not Shown. PLN-532127638

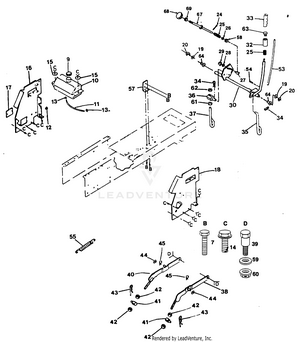

LIFT ADJUSTMENT

...
...
7
Screw, Hex., Tapping, #10-24 x 1/2 (AYP part number) PLN-817021008
...
9
Cap, Fuel (AYP part number) PLN-532123549
...
10
TANK.ASM.FUEL.FRONT.W/CAP PLN-532184900
...
11
Line, Fuel (AYP part number) PLN-532008548
...
12
Grommet (AYP part number) PLN-532124934
...
13
Clamp, Hose (AYP part number) PLN-532123487
...
14
BOLT.HEX.1/4.X.3/4.DICHROMATE PLN-874760412
...
15
Washer 9/32 x 7/8 x 16 Ga. (AYP part number) PLN-819091416
...
16
Panel, Dash, L. H. (AYP part number) PLN-532122795
...
17
Cover, Access (AYP part number) PLN-532121794
...
18
Panel, Dash, R. H. (AYP part number) PLN-532126276
...
19
Washer 21/32 x 1 - 1/4 x 16 Ga. (AYP part number) PLN-819212016
...
20
E-Ring (AYP part number) PLN-812000022
...
24
Pin, Cotter 3/32 x 1/2 (AYP part number) PLN-876020308
...
25
Spring PLN-532122512
...
26
Washer 13/32 x 5/8 x 16 Ga. (AYP part number) PLN-819131016
...
27
Trunnion, Depth Stop PLN-532110810
...
28
Washer 15/32 x 3/4 x 16 Ga. (AYP part number) PLN-819151216
...
29
Ring, Klip #T5304-37 (AYP part number) PLN-812000037
...
30
Shaft, Lift (AYP part number) PLN-532122507
...
32
PLUNGER BUTTON KIT PLN-532125925
...
33
Grip, Handle (AYP part number) PLN-532109413
...
34
Retainer, Spring (AYP part number) PLN-532124670
...
35
Link, Lift (AYP part number) PLN-532110029
...
36
Trunnion, Lift (AYP part number) PLN-532110447
...
37
Link, Lift, Adjustable (AYP part number) PLN-532110448
...
38
Arm, Suspension, R. H. (AYP part number) PLN-532121598
...
39
Bolt, Shoulder 3/8-16 (AYP part number) PLN-532105848
...
40
Arm, Suspension, L. H. (AYP part number) PLN-532121599
...
41
TRUNNION PLN-532175689
...
42
NUT.HEX.JAM.1/2-13 PLN-873350800
...
43
Retainer, Spring (AYP part number) PLN-532009135
...
44
Washer (AYP part number) PLN-532052160
...
45
Retainer, Spring (AYP part number) PLN-532004921
...
53
Lever, Rod (AYP part number) PLN-532121006
...
54
Pin, Groove (AYP part number) PLN-532105767
...
55
Spring, Extension PLN-532124446
...
57
Bracket, Switch (AYP part number) PLN-532108236
...
58
Nut, Special (AYP part number) PLN-532110807
...
59
Washer, Spring (AYP part number) PLN-532110739
...
60
LOCKNUT PLN-873680600
...
61
NUT.ASF.HEX.7/16 PLN-873610700
...
62
NUT.ASF.HEX.7/16 PLN-873610700
...
63
PLUNGER BUTTON KIT PLN-532125925
...
64
Washer, Nylon (AYP part number) PLN-532120183
...
67
Lever, Assembly (AYP part number) PLN-532105768
...
68
Knob (AYP part number) PLN-532100734
...
69
Rod, Lift Adjust (AYP part number) PLN-532110809

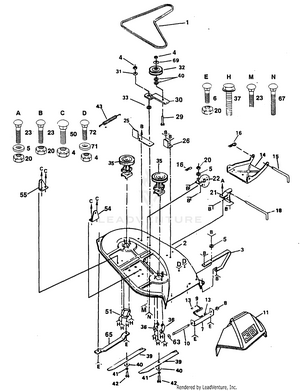

MOWER 38"

...
...
1
V-Belt (AYP part number) PLN-532106085
...
2
DECK HOUSING 38" PLN-532144726
...
3
Runner, RH (AYP part number) PLN-532128772
...
4
Locknut 3/8-16 PLN-873680600
...
5
WASHER - 15X7.3X1.6 PLN-734116301
...
6
Bolt, Carriage 5/16-18 x 5/8 (AYP part number) PLN-872140505
...
7
Bracket Assembly, Deflector (AYP part number) PLN-532137607
...
8
Pushnut (AYP part number) PLN-532110452
...
9
SPRING TORSION PLN-532123713
...
10
Rod, Hinge (AYP part number) PLN-532106735
...
11
Shield, Deflector (AYP part number) PLN-532106736
...
13
Cap (AYP part number) PLN-532105304
...
14
Link, Parallel (AYP part number) PLN-532129762
...
15
Pin, Hinge, Front (AYP part number) PLN-532105744
...
16
Sprint, Retainer (AYP part number) PLN-532004921
...
18
Pin, Hinge, Rear (AYP part number) PLN-532109835
...
20
NUT.71038.31-18.HEX.NYLOCK PLN-873800500
...
21
Bracket, Lift, R. H. (AYP part number) PLN-532109598
...
22
Bracket, Lift, L. H. (AYP part number) PLN-532109597
...
23
BOLT 5/16C X 3/4" CARRIAGE PLN-539990316
...
25
Support, Arm (AYP part number) PLN-532109503
...
26
Stop, Deck, Front (AYP part number) PLN-532109504
...
29
Bolt 3/8-16 x 2 (AYP part number) PLN-874760636
...
30
Arm, Idler (AYP part number) PLN-532127162
...
31
Spacer (AYP part number) PLN-532106902
...
32
Idler, Flat (AYP part number) PLN-532123674
...
33
Washer, Wear 1/16 (AYP part number) PLN-532106513
...
35
Mandrel Assembly (AYP part number) PLN-532121687
...
36
Plate, Support, Mandrel (AYP part number) PLN-532100668
...
37
BOLT PLN-874760620
...
39
BLADE 38" PLN-532143978
...
40
Washer 13/32 x 1-3/4 x 10 Ga. (AYP part number) PLN-819131210
...
41
SLW 3/8 STD PLN-539990118
...
42
Bolt, Hex 3/8-24 x 1-1/2 Gr. 5 (AYP part number) PLN-874610624
...
43
Spring, Extension (AYP part number) PLN-532102727
...
50
Bolt, Carriage 3/8-16 x 3/4 (AYP part number) PLN-872140606
...
51
Plate, Support (AYP part number) PLN-532110445
...
54
Bracket, Suspension, Rear, R. H. (AYP part number) PLN-532105857
...
55
Bracket, Suspension, Rear, L. H. (AYP part number) PLN-532108673
...
63
Washer 11/32 x 5/8 x 16 Ga. (AYP part number) PLN-819111016
...
65
Runner, Mower LH (AYP part number) PLN-532007631
...
67
BOLT.3/8-14X1.25 PLN-583611601
...
69
Washer 13/32 x 13/16 x 16 Ga. (AYP part number) PLN-819131316
...
71
Washer 7/16 x 1 x 10 Ga. (AYP part number) PLN-819141610
...
72
Bolt, Carriage 3/8-16 x 3/4 (AYP part number) PLN-872110606
...
xx
Mower Deck, Complete (AYP part number) Not Shown. PLN-532123928
...
xx
Decal, V-Belt Mower Drive (AYP part number) Not Shown. PLN-532108682
...
xx
Decal, Instruction, Caution (AYP part number) Not Shown. PLN-532109820
...
xx
Decal, Warning (AYP part number) Not Shown. PLN-532121349

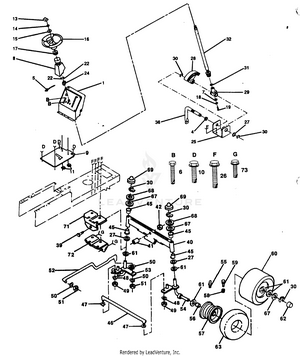

STEERING AND FRONT AXLE

...
...
1
Dash (AYP part number) PLN-532125089
...
4
Nyliner, Snap-in (AYP part number) PLN-532109816
...
5
Control, Throttle (AYP part number) PLN-532121733
...
6
Screw, Hex, Thread Cutting 1/4 - 20 x 5/8 TY23 (AYP part number) PLN-817720410
...
7
WASHER PLN-819091016
...
8
Tube, Steering Shaft (AYP part number) PLN-532124417
...
9
Saddle (AYP part number) PLN-532124814
...
10
Screw, Hex, Washer Head Thread Rolling 3/8-16 x 1/2 (AYP part number) PLN-817490608
...
11
Clip, Insulated (AYP part number) PLN-532002751
...
13
STEERING WHEEL KIT PLN-532150546
...
14
Locknut, Hex, Jam 1/2 - 20 (AYP part number) PLN-873940800
...
15
Washer (AYP part number) PLN-532100712
...
16
STEERING WHEEL KIT PLN-532150546
...
17
Adapter, Steering Wheel (AYP part number) PLN-532100711
...
18
Lockwasher 1/4 (AYP part number) PLN-810040400
...
19
SCREW.HX.WSH.HD PLN-532165857
...
22
Screw, Hex Wsh. Tap #10-16 x 1/2 (AYP part number) PLN-817211008
...
24
Bushing, Steering (AYP part number) PLN-532124373
...
25
Bracket, Steering (AYP part number) PLN-532124036
...
26
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 (AYP part number) PLN-874780612
...
27
WASHER THRUST PLN-532006266
...
28
Gear Sector (AYP part number) PLN-532136874
...
29
STEERING SHAFT SUPPORT PLN-532160395
...
30
Ring, Klip (AYP part number) PLN-812000029
...
31
Washer (AYP part number) PLN-532057079
...
32
Shaft, Steering (AYP part number) PLN-532128752
...
36
PITMAN SHAFT ASSY PLN-532156365
...
39
Bolt, Hex 5/8-11 x 3-3/4 (AYP part number) PLN-874761060
...
40
Axle, Front (AYP part number) PLN-532105669
...
41
Spacer, Bearing, Front Axle (AYP part number) PLN-532110438
...
42
LOCKNUT M (1 2) (5 2) PLN-583612401
...
45
BEARING.STEERING.COLUMN PLN-532003366
...
46
ROD.ASM.TIE.BALL.JOINT.NOVAN PLN-532170162
...
47
WASHER - 15X7.3X1.6 PLN-734116301
...
48
Washer, Lock (AYP part number) PLN-810040500
...
49
PLN-873610500
...
50
SLW 3/8 STD PLN-539990118
...
51
LOCKNUT PLN-873680600
...
52
Link Drag Sol Ball Jt 20 064 (AYP part number) PLN-532130468
...
53
SPINDLE ASM LH PLN-532156483
...
54
Spindle, R. H. (AYP part number) PLN-532105654
...
55
Fitting, Grease (AYP part number) PLN-532000278
...
56
Bearing, Flange PLN-532009040
...
57
RIM.ASM.6".FRONT.SILVER PLN-532106732
...
58
Cap, Valve (AYP part number) PLN-532059192
...
59
Stem, Valve (AYP part number) PLN-532065139
...
60
Tire (AYP part number) PLN-532124157
...
61
Washer 25/32 x 1-1/4 x 16 Ga. (AYP part number) PLN-532121749
...
62
Cap, Hub (AYP part number) PLN-532104757
...
63
Tube, Front PLN-532059904
...
67
Washer 25/32 x 1-5/8 x 16 Ga. (AYP part number) PLN-532121748
...
68
Washer 27/32 x 1-1/4 x 16 Ga. (AYP part number) PLN-819272016
...
69
Cap, Spindle (AYP part number) PLN-532121232
...
71
Support, Saddle, Rear (AYP part number) PLN-532105663
...
72
Support, Saddle, Front (AYP part number) PLN-532105664
...
73
Screw, Hex Washer Thdrol. 5/16-18 x 1/2 (AYP part number) PLN-817490508
...
xx
Decal, Insert, Steering Wheel (AYP part number) Not Shown. PLN-532127646
...
xx
Decal, Instruction, Operating (AYP part number) Not Shown. PLN-532109821

TRANSAXLE FOOTE - MODEL NUMBER 4360-7

...
...
1
Housing, Upper (Dana part number) PLN-003865
...
2
Screw, Tapping, 1/4-20 x .734 Lg. (Dana part number) PLN-001919
...
3
Ball, Detent (Dana part number) (Dana part number) PLN-001151
...
4
Spring, Detent (Dana part number) PLN-003626
...
5
Screw, Set (Dana part number) PLN-003623
...
6
Ass;y., Shifter (Dana part number) PLN-004336
...
7
O-Ring (Dana part number) PLN-003884
...
8
Washer, Plain .505 x .942 x .006 (Dana part number) Use in combinations to maintain proper clearances. PLN-003885
...
8
Washer, Plain, .505 x .942 x .010 (Dana part number) Use in combinations to maintain proper clearances. PLN-003886
...
8
Washer, Plain, .505 x .942 x .015 (Dana part number) Use in combinations to maintain proper clearances. PLN-003887
...
8
Washer, Plain, .505 x .942 x .020 (Dana part number) Use in combinations to maintain proper clearances. PLN-003888
...
8
Washer, Plain, .505 x .942 x .026 (Dana part number) Use in combinations to maintain proper clearances. PLN-003889
...
8
Washer, Plain, .505 x .942 x .030 (Dana part number) Use in combinations to maintain proper clearances. PLN-003121
...
8
Washer, Plain, .505 x .942 x .040 (Dana part number) Use in combinations to maintain proper clearances. PLN-003890
...
9
Ring, Retaining (Dana part number) PLN-001100
...
10
Ring, Retaining (Dana part number) PLN-001099
...
11
Washer, Plain, .632 x 1.00 x .010 (Dana part number) PLN-001959
...
11
Washer, Plain, .632 x 1.00 x .020 (Dana part number) PLN-001441
...
11
Plain Washer .632 x 1.00 x .026 (Dana part number) PLN-001423
...
11
Washer, Plain, .632 x 1.00 x .031 (Dana part number) PLN-001082
...
11
Washer, Plain, .632 x 1.00 x .036 (Dana part number) PLN-001424
...
11
Washer, Plain, .632 x 1.00 x .041 (Dana part number) PLN-001068
...
11
Washer, Plain, .632 x 1.00 x .046 (Dana part number) PLN-001425
...
11
Washer, Plain, .632 x 1.00 x .050 (Dana part number) PLN-001358
...
11
Washer, Plain, .632 x 1.00 x .060 (Dana part number) PLN-001145
...
xx
Washer, Plain, .632 x 1.00 x .082 (Dana part number) PLN-001319
...
12
O-Ring (Dana part number) PLN-003312
...
13
Washer, Plain, .632 x 1.38 x .046 PLN-531003876
...
14
Key, Woodruff, #9 PLN-530001374
...
15
Ass'y., Kit, Input Shaft (Dana part number) PLN-004134
...
16
Pinion, Bevel, 14T. (Dana part number) PLN-003590
...
17
Ring, Retaining (Dana part number) PLN-003624
...
18
Chain, 24 Pitches (Dana part number) PLN-003625
...
19
Bearing, Flange (Dana part number) PLN-001542
...
20
Gear, Spur, 14T. PLN-530003773
...
21
Collar, Clutch (Dana part number) PLN-003631
...
22
Key, Clutch (Dana part number) PLN-003828
...
23
Key, Woodruff PLN-530001369
...
24
Shaft, Intermediate (Dana part number) PLN-003883
...
25
Key, Woodruff, #61(Dana part number) PLN-001375
...
26
Ring, Retaining (Dana part number) PLN-003627
...
27
Sprocket, 18T.(Dana part number) PLN-003830
...
28
Spacer (Dana part number) PLN-003841
...
29
Gear, Spur, 37T. PLN-530003786
...
30
Gear, Spur, 35T. PLN-530003785
...
31
Gear, Spur, 30T. (Dana part number) PLN-003867
...
32
Gear, Spur, 25T. PLN-530003783
...
33
Gear, Spur, 22T. (Dana part number) PLN-003869
...
34
Gear, Spur, 19T. (Dana part number) PLN-003741
...
35
Washer, Plain, .640 x 1.37 x .061 (Dana part number) PLN-003628
...
36
Plain Washer .632 x 1.00 x .026 (Dana part number) PLN-001423
...
37
Spacer, .630 x 1.00 x .169 (Dana part number) PLN-003422
...
38
Ass'y., Gear, Comb., 12T. & 35T. (Dana part number) PLN-004286
...
39
Shaft, Idler (Dana part number) PLN-003877
...
40
Spacer, .635 x.875 x .755 (Dana part number) PLN-003901
...
41
Sprocket, 9T. (Dana part number) PLN-003645
...
42
Gear, Bevel, 42T. (Dana part number) PLN-003853
...
43
Washer, Plain, .758 x 1.12 x .010 (Dana part number) Use in combinations to maintain proper clearances. PLN-003749
...
43
Washer, Plain, .758 x 1.12 x .015 (Dana part number) Use in combinations to maintain proper clearances. PLN-003652
...
43
Washer, Plain, .758 x 1.12 x .020 (Dana part number) Use in combinations to maintain proper clearances. PLN-003693
...
43
Washer, Plain, .758 x 1.12 x .025 (Dana part number) Use in combinations to maintain proper clearances. PLN-003653
...
43
Washer, Plain, .758 x 1.25 x .020 (Dana part number) Use in combinations to maintain proper clearances. PLN-003408
...
43
Washer, Plain, .758 x 1.25 x .025 (Dana part number) Use in combinations to maintain proper clearances. PLN-003732
...
43
Washer, Plain, .758 x 1.25 x .031 (Dana part number) Use in combinations to maintain proper clearances. PLN-003184
...
43
Washer, Plain, .758 x 1.25 x .035 (Dana part number) Use in combinations to maintain proper clearances. PLN-003733
...
43
Washer, Plain, .758 x 1.25 x .040(Dana part number) Use in combinations to maintain proper clearances. PLN-003198
...
43
Washer, Plain, .758 x 1.25 x .045 (Dana part number) Use in combinations to maintain proper clearances. PLN-003734
...
43
Washer, Plain, .758 x 1.25 x .050 (Dana part number) Use in combinations to maintain proper clearances. PLN-003735
...
43
Washer, Plain, .758 x 1.25 x .055 (Dana part number) Use in combinations to maintain proper clearances. PLN-003736
...
43
Washer, Plain, .758 x 1.25 x .062 (Dana part number) Use in combinations to maintain proper clearances. PLN-003180
...
44
Shaft, Drive (Dana part number) PLN-003882
...
45
Gear, Spur, 12T. (Dana part number) PLN-003646
...
46
Gear, Spur, 15T. (Dana part number) PLN-003707
...
47
Gear, Spur, 20T. (Dana part number) PLN-003866
...
48
Gear, Spur, 25T. (Dana part number) PLN-003719
...
49
Gear, Spur, 28T. (Dana part number) PLN-003868
...
50
Gear, Spur, 31T. (Dana part number) PLN-003683
...
51
Washer, Plain, .632 x 1.00 x .060 (Dana part number) PLN-001145
...
52
Seal, Felt (Dana part number) PLN-003191
...
53
Washer, Plain, .758 x 1.25 x .062 (Dana part number) PLN-003180
...
54
Axle, L.H. (Dana part number) PLN-003880
...
55
Gear, Miter, 15T. PLN-530003780
...
56
Ring, Retaining (Dana part number) PLN-003656
...
57
Gear, Spur, 32T. (Dana part number) PLN-003839
...
58
Shaft, Cross (Dana part number) PLN-003919
...
59
Gear, Miter, 15T. PLN-530003781
...
60
Axle, R.H. (Dana part number) PLN-003881
...
61
Housing, Lower (Dana part number) PLN-003864
...
62
Puck, Friction (Dana part number) PLN-003920
...
63
Disc, Brake (Dana part number) PLN-003276
...
64
Spacer (Dana part number) PLN-003758
...
65
Jaw, Brake (Dana part number) PLN-003916
...
66
Pin, Dowel (Dana part number) PLN-003843
...
67
Screw, Tapping, 5/16-18 x 2 25 Lg. (Dana part number) PLN-003915
...
68
Lever, Actuating PLN-530003768
...
69
Washer, Plain, ..321 x 1.00 x .055 PLN-530003760
...
70
Bracket, Anti-Rotation (Dana part number) PLN-003917
...
71
Nut, Lock, 5/16-24 (Dana part number) PLN-003847
...
72
Screw, Tapping, 5/16-18 x 1.44 Lg. (Dana part number) PLN-003724
...
73
Washer, Plain, .343 x .81 x .059 PLN-530003906
...
74
Puck, Friction (Dana part number) PLN-003907
...
75
Grease (Dana part number) PLN-004300
