Poulan Pro PP117 Gas Trimmer

Model: PP117 Gas Trimmer, 117 Gas Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

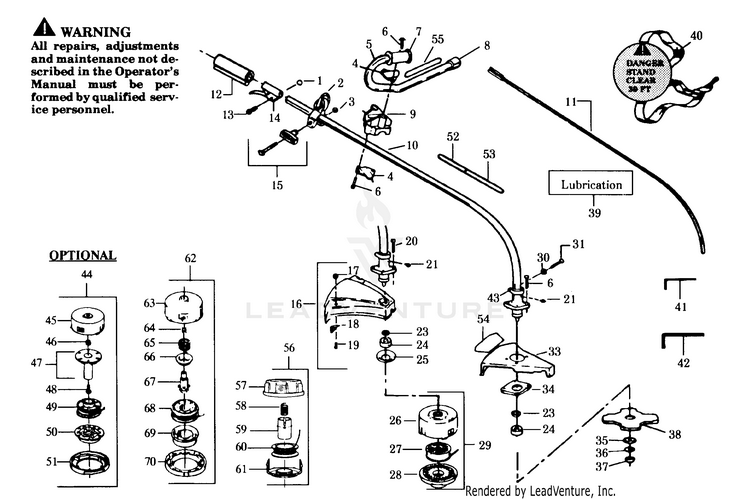

CUTTING HEAD & DRIVE SHAFT ASSEMBLIES

...
...
1
Nut PLN-530015768
...
2
Clamp Harness Ass'y. PLN-530094686
...
3
Locknut PLN-530015197
...
4
Handlebar Bracket PLN-530094572
...
5
Handlebar PLN-530010723
...
6
Screw PLN-530015791
...
7
Handlebar Grip PLN-530092086
...
8
Handlebar Cap PLN-530092192
...
9
Handlebar Clamp PLN-530012207
...
10
Drive Shaft Housing PLN-530094643
...
11
Drive Shaft PLN-530094555
...
12
Grip PLN-530029445
...
13
Screw PLN-530015774
...
14
Throttle Lever Ass'y. (Inc. #1 &13) PLN-530010959
...
15
HANDLE KIT PLN-530069347
...
16
Shield Kit Ass'y. (Inc. #17,18,19) PLN-530069256
...
17
Nut PLN-530403094
...
18
Line Limiter PLN-530094570
...
19
Screw PLN-530015037
...
20
Screw PLN-530016107
...
21
Screw PLN-530015518
...
23
Washer PLN-530092216
...
24
Dust Cup PLN-530092359
...
25
Grass Washer PLN-530094571
...
26
Hub Ass'y. PLN-530094592
...
27
Spool w/Line PLN-952711501
...
28
Cover PLN-530094494
...
29
Cutting Head Ass'y. (Inc. #26-28) PLN-952711503
...
30
Washer PLN-530092227
...
31
Screw PLN-530625509
...
33
SHIELD PLN-530094633
...
34
Shield Retention Plate PLN-530027615
...
35
Washer PLN-530015792
...
36
Washer--Belleville PLN-530016240
...
37
Nut 3/8 PLN-530093748
...
38
Weed Blade PLN-952711507
...
39
LUBE, FLEX SHAFT NLA PLN-952708514
...
40
Shoulder Strap PLN-530094417
...
41
Hex Wrench (5/32) PLN-530031159
...
42
Hex Wrench (3/16) PLN-530031098
...
43
Bearing Housing Ass'y. (Inc.23,& 24) PLN-530094581
...
44
Cutting Head Ass'y. PLN-952711504
...
45
Hub Ass'y. PLN-530094562
...
46
Spring PLN-530094956
...
47
Locking Plate Kit PLN-530069312
...
48
Screw PLN-530015542
...
49
Spool w/Line PLN-952711502
...
50
Cover PLN-530094521
...
51
Release Button PLN-530094522
...
52
Decal-Shaft Warning (Upper) PLN-530029160
...
53
Decal-Shaft Warning (Lower) PLN-530029161
...
54
Decal-Blade Direction (Not a serviceable part) PLN-530027749
...
55
Decal-Handlebar PLN-530027778
...
56
Cutting Head Ass'y. PLN-952711520
...
57
Hub Ass'y. PLN-530094878
...
58
Spring PLN-530094830
...
59
Release Button PLN-530094827
...
60
Spool w/Line PLN-952711521
...
61
Cover PLN-530094828
...
62
Cutting Head Ass'y. PLN-952711525
...
63
Hub PLN-530071295
...
64
Line Saver PLN-530093898
...
65
Spring PLN-530340007
...
66
Cap Spring PLN-530328929
...
67
Drive Gear PLN-530093897
...
68
Spool w/Line PLN-952711526
...
69
Release Button PLN-530344046
...
70
Cover PLN-530344102

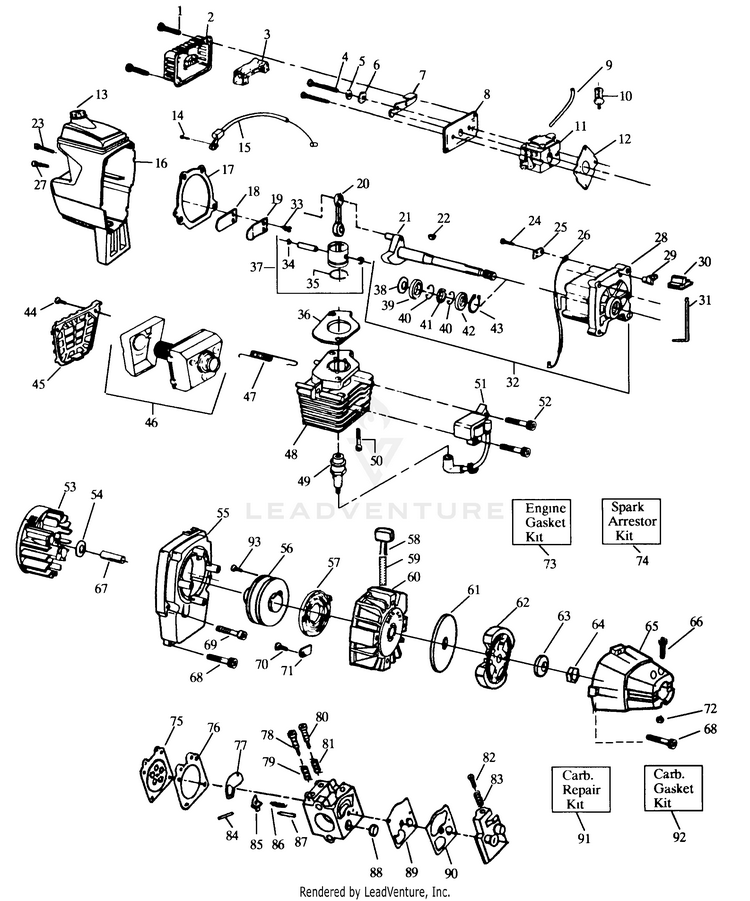

ENGINE BLOCK & SHROUDS

...
...
1
Screw PLN-530015773
...
2
Air Filter Cover PLN-530027529
...
3
Air Filter PLN-530027530
...
4
Screw PLN-530015849
...
5
Spacer-Choke PLN-530015852
...
6
Wave Washer PLN-530015254
...
7
Choke Shutter PLN-530027526
...
8
Air Filter Plate PLN-530027527
...
9
Fuel Line Kit PLN-530069247
...
10
Assy-Fuel Pickup PLN-530095646
...
11
KIT CARBURETOR ASSY PLN-545081825
...
12
Carburetor Gasket Included in Carburetor Kwik Repair Kit. PLN-530019156
...
13
Assy-Fuel Cap PLN-530014347
...
14
Screw PLN-530015775
...
15
Throttle Cable Ass'y., Model 114 PLN-530037497
...
16
Shroud & Tank Ass'y. PLN-530027995
...
17
Gasket Included in Carburetor Kwik Repair Kit. PLN-530019154
...
18
Reed PLN-530027593
...
19
Reed Stop PLN-530027594
...
20
Connecting Rod Ass'y. (Inc. Bearings) PLN-530010960
...
21
Crankshaft Ass'y. PLN-530010934
...
22
Flywheel Key PLN-530015126
...
23
Screw PLN-530015772
...
24
Screw PLN-530015780
...
25
Switch Insulator PLN-530027546
...
26
Lead Wire PLN-530027547
...
27
Screw PLN-530015771
...
28
Crankcase Ass'y. (Inc. #39-42) PLN-530014016
...
29
Switch Ramp PLN-530027545
...
30
Switch Button PLN-530038309
...
31
Switch Spring PLN-530027959
...
32
Assy-C'case/C'shaft PLN-530071705
...
33
Screw PLN-530015241
...
34
Piston Pin Retainer PLN-530015162
...
35
Piston Ring PLN-530025875
...
36
GASKET CYL W/ ADHESIVE Included in Carburetor Kwik Repair Kit. PLN-530019267
...
37
Piston Kit (Inc. #34,35 & pin) PLN-530069277
...
38
Spacer PLN-530015788
...
39
Inner Bearing PLN-530032103
...
40
Retaining Ring PLN-530015787
...
41
Crankshaft Seal PLN-530019158
...
42
Outer Bearing PLN-530032102
...
43
Crankshaft Retaining Ring PLN-530015789
...
44
Screw PLN-530015717
...
45
Muffler Guard PLN-530027781
...
46
Muffler Kit PLN-530069310
...
47
Muffler Spring PLN-530036409
...
48
Kit-Cylinder PLN-530071581
...
49
Spark Plug PLN-530030077
...
50
Screw PLN-530015239
...
51
Ignition Module Kit PLN-530039134
...
52
Screw PLN-530015816
...
53
Flywheel Ass'y PLN-530039189
...
54
Washer PLN-530016030
...
55
Fan Housing PLN-530027946
...
56
Kit-Starter Pulley PLN-530071387
...
57
STARTER SPRING PLN-545008010
...
58
Starter Handle PLN-530027569
...
59
Rope Kit PLN-530069232
...
60
Pulley Housing Ass'y. PLN-530014022
...
61
Clutch Washer PLN-530094189
...
62
Clutch Ass'y. Kit PLN-530069254
...
63
Washer PLN-530015796
...
64
Nut PLN-530001733
...
65
Clutch Housing PLN-530014023
...
66
Screw PLN-530015767
...
67
Spacer PLN-530027511
...
68
Screw PLN-530015770
...
69
Screw PLN-530015769
...
70
Screw PLN-530015496
...
71
Pulley Retainer PLN-530027523
...
72
Locknut PLN-530015768
...
73
Engine Gasket Kit (Inc.12,17,36) PLN-530069276
...
74
Spark Arrestor Kit PLN-952701612
...
75
DIAPHRAGM PLN-503896701
...
76
Metering Diaphragm Gasket PLN-530035151
...
77
GASKET PLN-501781301
...
78
H-NEEDLE PLN-501782201
...
79
Hi Speed Needle Spring PLN-530035036
...
80
Idle Needle PLN-530035141
...
81
Idle Needle Spring PLN-530035023
...
82
Idle Speed Screw PLN-530035203
...
83
Spring PLN-501667801
...
84
Pin Included in Carburetor Kwik Repair Kit. PLN-505520125
...
85
Metering Lever Included in Carburetor Kwik Repair Kit. PLN-505520127
...
86
Metering Lever Spring Included in Carburetor Kwik Repair Kit. PLN-530035188
...
87
Needle Included in Carburetor Kwik Repair Kit. PLN-503117001
...
88
Inlet Screen Included in Carburetor Kwik Repair Kit. PLN-530035178
...
89
PUMP DIAPHRAGM PLN-504130807
...
90
GASKET PLN-504130906
...
91
Carb. Kwik Repair Kit PLN-530035260
...
92
Gasket Diaphragm Kit PLN-530069844
...
93
SCREW PLN-530016080
...
xx
Operator Manual Not Shown. PLN-530068776
...
xx
Instruction Decal Not Shown. PLN-530029012
...
xx
Carton (Not a serviceable part) Not Shown. PLN-530061125
...
xx
Carton Contents Bag Not Shown. PLN-530014019
...
...
...
