Poulan Pro PP115 Gas Trimmer

Model: PP115 Gas Trimmer, 115 Gas Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

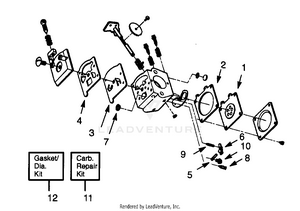

CARBURETORS WT-245 & WT-299 BREAKDOWN

...
...
1
DIAPHRAGM PLN-503896701
...
2
Metering Diaphragm Gasket PLN-530035151
...
3
GASKET PLN-504130906
...
4
Pump Diaphragm PLN-530035168
...
5
Pin Included in Carburetor Kwik Repair Kit. PLN-505520125
...
6
Metering Lever Included in Carburetor Kwik Repair Kit. PLN-505520127
...
7
Fuel Inlet Screen Included in Carburetor Kwik Repair Kit. PLN-530035178
...
8
Needle Included in Carburetor Kwik Repair Kit. PLN-503563401
...
9
WT-141 - T1 Included in Carburetor Kwik Repair Kit. PLN-530035188
...
10
Screw Included in Carburetor Kwik Repair Kit. PLN-505316717
...
11
Carburetor Repair Kit PLN-530069842
...
12
GASKET SET PLN-531004519

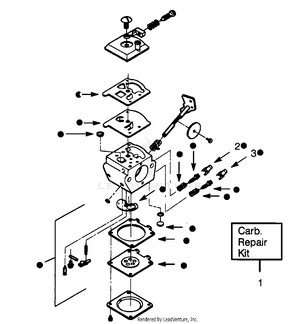

CARBURETORS WT-299A & WT-380 BREAKDOWN

...
...
1
Carburetor Repair Kit (DOT Indicates Contents on illus.) Parts indicated by an . in illustration are for clarity only, order complete assembly. PLN-530069623
...
1
WT-299A Parts indicated by an . in illustration are for clarity only, order complete assembly. PLN-530069390
...
2
Limiter Cap-Low PLN-530038317
...
3
Limiter Cap-High PLN-530038318

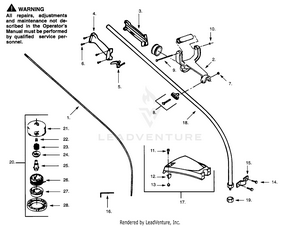

CUTTING HEAD & DRIVE SHAFT ASSEMBLIES

...
...
1
Drive Shaft PLN-530094551
...
2
Antivibe Handle Ass'y. (Inc. 10 & 9) PLN-530010958
...
3
Throttle Hsg. (Left) PLN-530036514
...
4
Throttle Hsg. (Right) PLN-530036515
...
5
Throttle Lever PLN-530036556
...
6
Screw PLN-530015957
...
7
Nut PLN-530015197
...
8
HANDLE KIT PLN-530069347
...
9
Screw PLN-530015784
...
10
Locknut PLN-530015785
...
11
Screw PLN-530015337
...
12
Line Limiter PLN-530094570
...
13
Nut PLN-530403094
...
14
Screw PLN-530016107
...
15
Bracket Shield PLN-530093653
...
16
Hex Wrench (5/32) PLN-530031159
...
17
Shield Kit Ass'y. (Inc. 11,12,13,14) PLN-530069249
...
18
ASM-DR.SHAFT W/SHIELD PLN-530071371
...
19
Dust Cup PLN-530094543
...
20
Cutting Head Ass'y. PLN-952711547
...
21
Hub PLN-530071295
...
22
Line Saver PLN-530093898
...
23
Spring PLN-530340007
...
24
Cap Spring PLN-530328929
...
25
Drive Gear PLN-530093897
...
26
Spool w/Line PLN-952701523
...
27
Release Button PLN-530401183
...
28
Cover PLN-530092133
...
xx
Carton Contents Bag PLN-530047067
...
xx
Type 2 PLN-530081991
...
xx
Type 3 PLN-530083192
...
xx
Shaft Warning Decal Not Shown. PLN-530029159
...
xx
Instruction Decal Not Shown. PLN-530047450

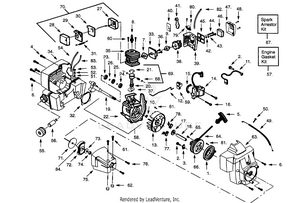

ENGINE, & SHROUD

...
...
1
STARTER SPRING PLN-545008010
...
2
Screw PLN-530015775
...
3
Retainer PLN-530027523
...
4
Screw PLN-530015934
...
5
Starter Handle PLN-530027569
...
6
SCREW PLN-530016386
...
7
Gasket - Cylin./Carb. PLN-530019233
...
8
Spark Plug PLN-530030075
...
9
Gasket PLN-530019194
...
10
Retainer PLN-530015941
...
11
Lead Wire PLN-530029606
...
12
Switch Wire Form PLN-530037321
...
13
FLYWHEEL ASSY PLN-545221701
...
14
Ignition Module PLN-530039163
...
15
Spacer PLN-530036145
...
16
Screw PLN-530015954
...
17
Washer PLN-530015149
...
18
Spacer PLN-530037705
...
19
Crankshaft Ass'y. PLN-530014864
...
20
Connecting Rod Ass'y. PLN-530069615
...
21
Piston Ring PLN-530036404
...
22
Crankcase Ass'y. PLN-530014861
...
23
Inner Bearing PLN-530032125
...
24
Outer Bearing PLN-530032124
...
25
C'case Seal PLN-530019179
...
26
Retaining Ring PLN-530015945
...
27
Muffler Body PLN-530036578
...
28
Muffler Cover PLN-530036577
...
29
Muffler Baffle-Exit PLN-530038602
...
30
Muffler Baffle-First PLN-530036579
...
31
Muffler Spring PLN-530016197
...
32
Gasket PLN-530019181
...
34
Type 1 PLN-530014852
...
34
Type 2 & 3 PLN-530047091
...
35
Cylinder PLN-530069373
...
36
Screw PLN-530016014
...
37
Gasket PLN-530019223
...
38
Type 1 (WT-245) PLN-530035329
...
38
Type 2 (WT-299) PLN-530035350
...
38
Carburetor Assembly - WT-639 PLN-530071639
...
39
Type 1 PLN-530037390
...
39
Type 2 & 3 PLN-530037971
...
40
Choke Plate PLN-530037326
...
41
Choke Shutter PLN-530038102
...
42
Wave Washer PLN-530015254
...
43
Choke Spacer PLN-530015852
...
44
Screw PLN-530015849
...
45
Filter Plate PLN-530037413
...
46
Air Filter Foam PLN-530037331
...
47
Air Filter Cover PLN-530037292
...
48
Screw PLN-530015957
...
49
Throttle Cable Ass'y. PLN-530037415
...
50
Screw PLN-530015814
...
51
Check Valve PLN-530026119
...
52
Element PLN-530029717
...
53
Retainer PLN-530029696
...
54
Fuel Line-Prim./Carb PLN-530069571
...
55
Fuel Cap Ass'y. PLN-530014347
...
56
Assy-Fuel Pickup PLN-530095646
...
57
Gasket-Cylind./Carb. PLN-530069616
...
58
C'case & C'shaft Ass'y. PLN-530071625
...
59
Switch Button PLN-530038309
...
60
Screw PLN-530015953
...
61
Screw PLN-530016072
...
62
Locknut PLN-530015768
...
63
Fan Housing PLN-530047017
...
64
Rope Kit PLN-530069232
...
65
Screw PLN-530016080
...
66
STARTER PULLEY KIT PLN-530071786
...
67
Spark Arrestor Kit PLN-530069380
...
68
Piston Pin Retainer PLN-530015162
...
69
Piston Kit (Inc. 21,68 & Pin) PLN-530069620
...
70
Muffler Kit PLN-530069660
...
71
Washer PLN-530015611
...
72
Clutch Ass'y. PLN-530069491
...
73
Washer PLN-530015828
...
74
Nut PLN-530626605
...
75
Clutch Hsg. PLN-530014924
...
76
Screw PLN-530015886
...
77
Starter Dog PLN-530029939
...
78
Spring - Starter Dog PLN-530047570
...
79
Primer Bulb Ass'y.-Type 2 & 3 PLN-530038874
...
80
Screw-Type II PLN-530015780
...
81
Screw-Flywheel PLN-530015882
...
82
Fuel Line-Prim./Tnk. PLN-530069216
...
83
Fuel Line-Carb./Tnk. PLN-530069247
...
84
Clutch Ass'y. PLN-530014949
...
...
...
