Poulan Pro PP1136A Tractor

Model: PP1136A Tractor

Back To Assemblies

Save
Part Not Listed?Part Not Listed?
product name

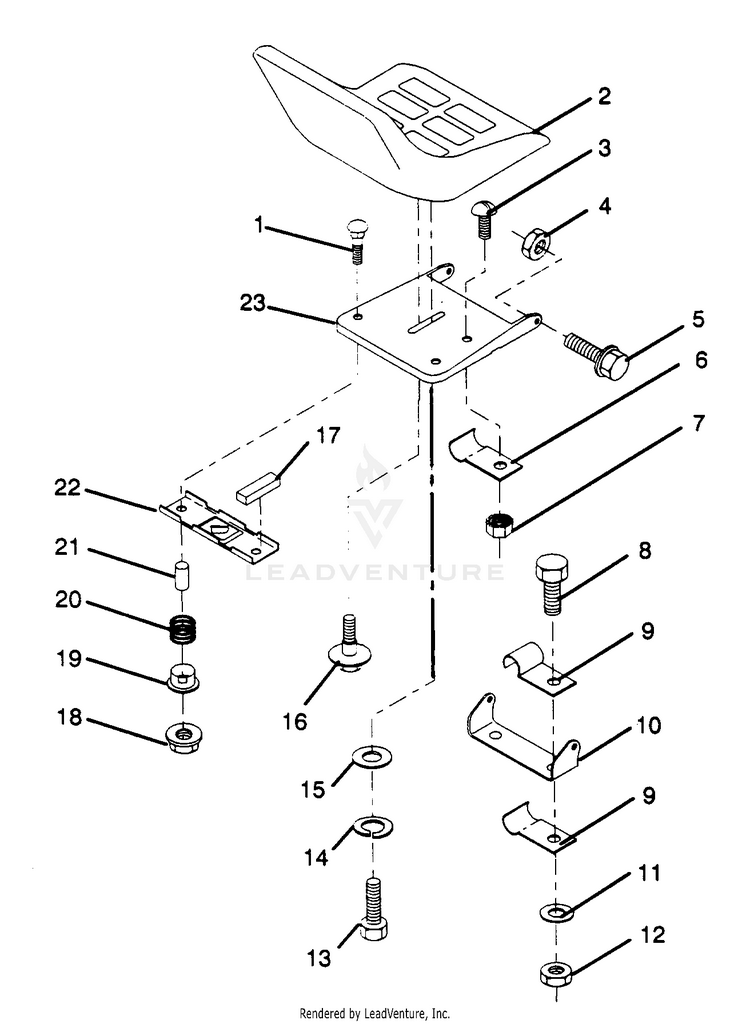

SEAT

...
...
1
Bolt, Carriage 1/4-20 x 1 1/4 (AYP part number) PLN-872170410

...
2
Seat (AYP part number) PLN-532127427

...
3
Screw, Slotted Pan Head 10-32 x 1/2 (AYP part number) PLN-874641008

...
4
NUT.71038.31-18.HEX.NYLOCK PLN-873800500

...
5
BOLT.SHOULDER.5/16-18 PLN-532139888

...
6
Clip, Insulated (AYP part number) PLN-532124967

...
7
Nut, Keps 10-32 UNF (AYP part number) PLN-873951000

...
8
Bolt, Fin. Hex 3/8-16 UNC x 3/4 (AYP part number) PLN-874760612

...
9
Clip, Insulated (AYP part number) PLN-532126471

...
10
Bracket, Pivot Seat (AYP part number) PLN-532126656

...
11
Washer 13/32 x 3/4 x 10 Ga. (AYP part number) PLN-819131210

...
12
Nut, Crownlock 3/8-16 UNC PLN-873680600

...
13
BOLT.HEX.BLACK PLN-871110814

...
14
Washer, Lock Hvy Helical Spring (AYP part number) PLN-810040800

...
15
Washer, 17/32 x 1 3/16 x 12 Ga. (AYP part number) PLN-819171912

...
16
Bolt, Shoulder (AYP part number) PLN-532127018

...
17
Strip, Foam (AYP part number) PLN-532121251

...
18
NUT.CROWNLOCK.1/4 PLN-873680400

...
19
Bushing, Snap (AYP part number) PLN-532121248

...
20
Spring, Compression (AYP part number) PLN-532121250

...
21
Spacer, Split 28 Id. x .88 Lg. (AYP part number) PLN-532121249

...
22
BRKT.MNTNG.SWITCH.SEAT.BLACK PLN-532174648

...
23
Pan, Seat (AYP part number) PLN-532124294
...
...
...
