Poulan Pro PP1136 Tractor

Model: PP1136 Tractor

Back To Assemblies

Save
Part Not Listed?Part Not Listed?
product name

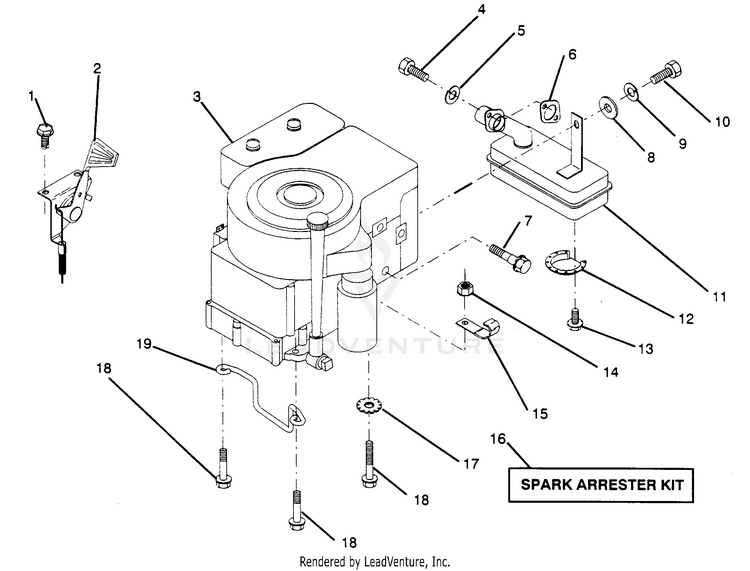

ENGINE / THROTTLE

...
...
1
HCS 1/4-20. PLN-539990071

...
2
Control, Throttle (AYP part number) PLN-532132752

...
3
Engine, Briggs and Stratton PLN-532124101

...
4
SCREW.SOCKET HD.5/16-1 PLN-532192334

...
5
Washer, Lock Heavy Helical Spring 5/16 (AYP part number) PLN-810040500

...
6
Gasket Eng 1 313 Id Tin Plated (AYP part number) PLN-532272293

...
7
Bolt, Shoulder 5/16 (AYP part number) PLN-532121094

...

...
9
Washer, Lock Heavy Helical Spring 1/4 (AYP part number) PLN-810040400

...
10
Bolt, Hex Fin. 1/4-20 UNC x 1-1/4 (AYP part number) PLN-874780412

...
11
Muffler (AYP part number) PLN-532124097

...
12
Deflector, Muffler (AYP part number) PLN-532101326

...
13
SCREW.HEX.WS.HD.8-18 X 7/8 PLN-532161464

...
14
Nut, Keps 3/8-16 (AYP part number) PLN-873510600

...
15
Clip, Insulated (AYP part number) PLN-532002751

...
16
Arrestor, Spark (optional equipment) (AYP part number) PLN-532121851

...
17
SLW 3/8 STD PLN-539990118

...
18
Bolt, Hex Head 3/8-16 UNC x 1-1/2 (AYP part number) PLN-874930624

...
19
Keeper, Ground Drive Belt (AYP part number) PLN-532126636

...
xx
Decal, Engine HP (AYP part number) Not Shown. PLN-532108760
...
...
...
