Poulan Pro PP033 Gas Trimmer

Model: PP033 Gas Trimmer, 033 Gas Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

Carburetor Assembly (WT598) P/N 530071403

...
...
1
Limiter Cap PLN-530038404
...
2
Carburetor Repair Kit (KIT = Indicates Contents) PLN-530069824
...
3
Gasket Diaphragm Kit (DOT = Indicates Contents) PLN-530069844
...
530071403
Assy-Carb(WT628) PLN-530071637

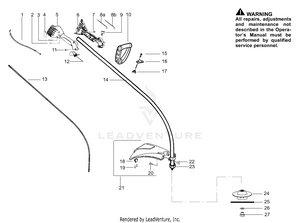

Drive Shaft & Cutting Head

...
...
1
Assy-Throttle cable PLN-530054942
...
2
Screw-alignment PLN-530015805
...
3
Screw-(10-24) PLN-530015774
...
4
Screw-handle/fan hsg. PLN-530015886
...
5
Throttle Hsg.-Right PLN-530054837
...
6
Kit-Left Throttle Hsg. PLN-530071553
...
7
Nut-Hex (10-24) PLN-530016284
...
8A
Assy-Front wire PLN-530054943
...
8B
Assy-Front wire (upper) PLN-530055724
...
9
Kit-Switch PLN-530071356
...
10
Assy-Assist Handle PLN-530055699
...
11
Screw PLN-530015886
...
12
Trigger-Throttle PLN-530054940
...
13
Shaft-Flex PLN-530095964
...
14
Assy-Driveshaft PLN-530055371
...
15
Bolt PLN-530015820
...
16
Clamp-Handle assist PLN-530094847
...
17
Nut PLN-530091373
...
18
Limiter-Line PLN-530052285
...
19
Screw PLN-530015814
...
20
Bolt PLN-530015820
...
21
Kit -Shield Ass'y. (Incls. 18-19) PLN-530071328
...
22
Nut PLN-530091373
...
23
Dustcup PLN-530094543
...
24
Assy-Cutting Head PLN-530054485
...
25
Tube-Line PLN-530095953
...
26
Washer PLN-530016296
...
27
Nut-Shoulder PLN-530016297
...
xx
Operator Manual Not Shown PLN-530086198
...
xx
Decal-Shaft Warning Not Shown PLN-530055350

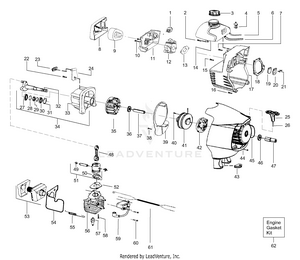

Engine Assembly

...
...
1
Bulb-purge PLN-530047721
...
2
Screw-tank PLN-530015843
...
3
Assy-Fuel cap PLN-530049858
...
4
Assy-Fuel pick-up PLN-530095646
...
5
Kit-Fuel Line PLN-530069247
...
6
Kit-Fuel/Purge line PLN-530069216
...
7
Screw PLN-530015775
...
8
Cover-Air box PLN-530054935
...
9
Filter-Air PLN-530054946
...
10
Screw-carb. PLN-530015849
...
11
Air Box PLN-530054934
...
12
Assy-Carb(WT628) PLN-530071637
...
13
Gasket-Carb. PLN-530071401
...
14
Assy-Fuel Tank PLN-545075305
...
15
Screw-crankcase PLN-530015771
...
16
Screw-shrd to f/hsg. PLN-530015952
...
17
Shroud PLN-530054936
...
18
Gasket-shrd to c/case PLN-530071401
...
19
Valve-reed PLN-530027593
...
20
Stop-reed PLN-530054596
...
21
SCREW 6-19X.437 PLN-545227101
...
22
Screw-tank retainer PLN-530015875
...
23
Isolator-fuel tank PLN-530055492
...
24
Ret.-fuel tank PLN-530054941
...
25
Handle-starter PLN-530054834
...
26
Kit-Rope PLN-530071400
...
27
Bearing-inner PLN-530032103
...
28
Retainer PLN-530015787
...
29
Seal PLN-530019158
...
30
Bearing-outer PLN-530032102
...
31
Retainer-crankshaft PLN-530015789
...
32
Assy-crankshaft PLN-530012430
...
33
Assy-crankcase PLN-530014016
...
34
Assy-c'case/c'shaft (Incl. 27-31,32,33) PLN-530071686
...
35
Assy-Flywheel PLN-530071402
...
36
Washer PLN-530016030
...
37
Spacer PLN-530055620
...
38
Screw-baffle PLN-530015775
...
39
Plate-baffle PLN-530056864
...
40
Screw-rope PLN-530016326
...
41
Kit-pulley (Incl. #40) PLN-530071399
...
42
KIT STARTER SPRING PLN-545008011
...
43
Grommet PLN-530019182
...
44
SCREW PLN-530016386
...
45
Housing-Fan w/eyelet PLN-530055248
...
46
Washer PLN-530016030
...
47
Coupling-drive PLN-530012427
...
48
Assy-Connecting rod PLN-530010960
...
49
Retainer-piston pin PLN-530015162
...
50
Ring-Piston PLN-530025875
...
51
Kit-Piston PLN-530069277
...
52
Gasket-Cylinder PLN-530071401
...
53
Kit-Muffler PLN-530069310
...
54
Shield PLN-530058957
...
55
Spring-muffler PLN-530036409
...
56
Kit-Cylinder PLN-530071581
...
57
Spark Plug PLN-503235112
...
58
Bolt-Cylinder PLN-530001624
...
59
Kit - Ignition Module PLN-545081826
...
60
Screw-module PLN-530015816
...
61
Assy-Rear wire PLN-530057238
...
62
Kit-Gasket PLN-530071401
...
...
...
