product name

Poulan Pro ETM17 Electric Trimmer

Model: ETM17 Electric Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

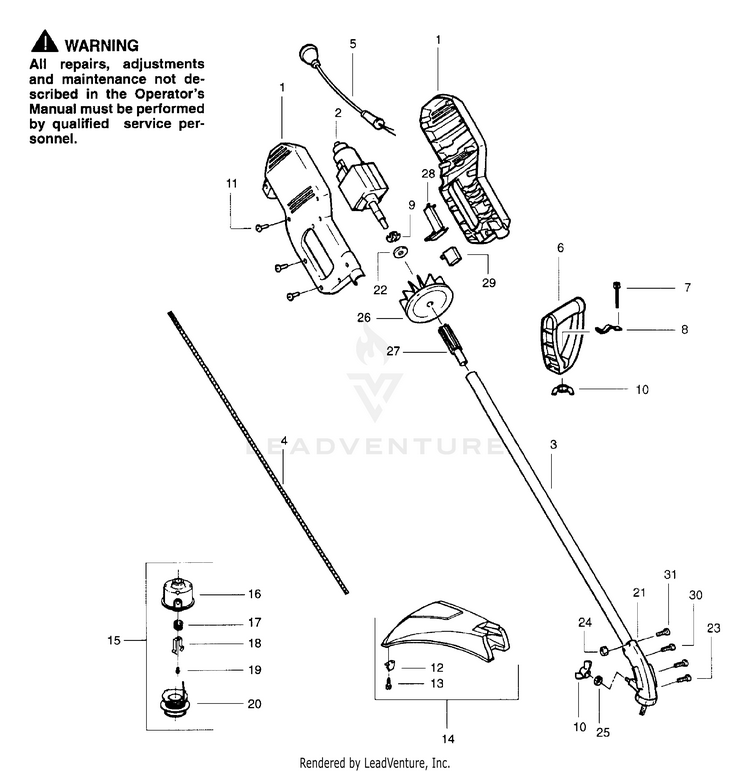

ETM17 Electric Trimmer

...
...
1
Housing Set PLN-530402797
...
2
Motor PLN-530402688
...
3
Tube Ass'y. PLN-530403318
...
4
Flex Shaft PLN-530095391
...
5
Wiring Harness Ass'y. (Incl. Switch) PLN-530402803
...
6
Assist Handle PLN-530038708
...
7
Bolt PLN-530015820
...
8
Clamp - Assist Handle PLN-530094742
...
9
Clip Retainer PLN-530403111
...
10
Nut PLN-530091373
...
11
Screw PLN-530016120
...
12
Line Limiter PLN-530095387
...
13
Screw - Line Limiter PLN-530015880
...
14
Shield Kit Ass'y. (Incl.12 & 13) PLN-530069752
...
15
Cutting Head Ass'y. (Incl. 16 - 20) PLN-952701666
...
16
Hub Ass'y. PLN-530069690
...
17
Spring PLN-530401464
...
18
Retainer - Clip PLN-530401466
...
19
Screw w/ Washer - Head PLN-530401467
...
20
Spool w/Line PLN-952711527
...
21
Gear Box Ass'y. PLN-530052308
...
22
Washer - Drive Adaptor PLN-530403112
...
23
Screw PLN-530016202
...
24
Locknut PLN-530015768
...
25
Washer PLN-530016129
...
26
Fan PLN-530402798
...
27
Drive Adaptor Ass'y. PLN-530402801
...
28
Trigger Switch PLN-530402799
...
29
Switch PLN-530402802
...
30
Screw PLN-530016224
...
31
SCREW PLN-530016386
...
xx
Operator Manual Not Shown PLN-530084676
...
xx
Shaft Warning Decal Not Shown PLN-530403323
...
...
...
