Poulan Pro BVM200VS Gas Blower

Model: BVM200VS Gas Blower

Save
Part Not Listed?Part Not Listed?

product name

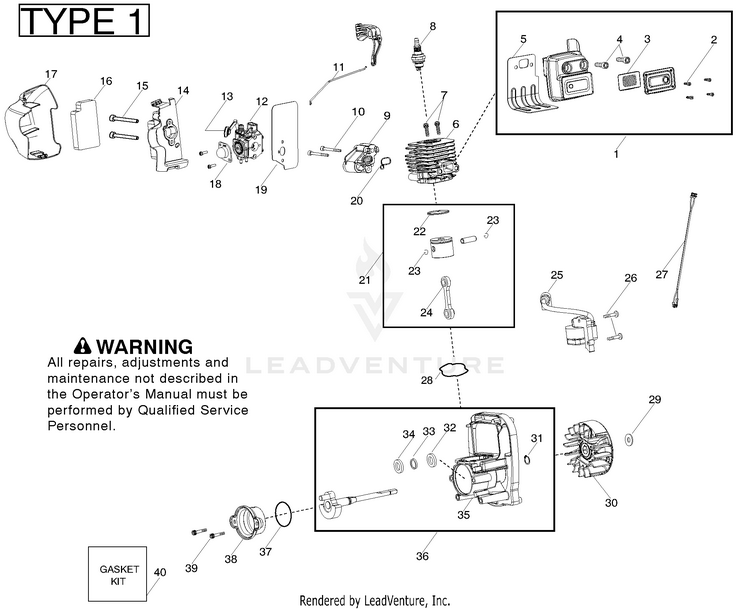

Engine Type 1

...
...
1
Assy - Muffler (Incl. 2,3,4,5) PLN-525592801


...
3
Assy - Muffler PLN-525592801


...
5
Gasket-Muffler (gasket kit) PLN-545081832

...
6


...
8
Spark Plug (RCJ-6Y) PLN-952030249

...
9
Adapter - Carb. PLN-545084901

...

...
11
Linkage - Throttle PLN-545115501

...
12
Kit - Carb. Assy (WT847) (Incl. 13,18) PLN-545081831

...
13
Lever- Choke, Gold PLN-545157102

...
13
Lever- Choke, Red PLN-545157103

...
14
Base - Airbox PLN-545112603

...

...
16

...
17
Cover - Air Box Filter PLN-545112702

...
18
Bulb - Purge (walbro 188-16) PLN-530035497

...
19
Gasket (Carb / Adapter) (gasket kit) PLN-545081832

...
20
O-Ring (Adapter / Cylinder) (gasket kit) PLN-545081832

...
21
Kit - Piston / Connecting Rod (Incl. 22,23,24) PLN-545081864

...
22
PISTON RING PLN-545154009

...
23
Retainer - Wrist Pin PLN-530015162

...
24
KIT PISTON CONN ROD FORGED PLN-545156002

...
25
Kit - Ignition Module PLN-545081826

...

...
27
Assy - Wire Harness PLN-545127601

...
28
O-Ring (Cyl/Crankcase) (gasket kit) PLN-545081832

...
29

...
30
FLYWHEEL ASSY PLN-545221701

...
31
Retainer - Crankshaft PLN-530015941

...
32
Bearing - Outer PLN-530055728


...
34
Bearing - Inner PLN-530032125

...
35
Assy - Crankcase (Incl. 32,33,34) PLN-530012582

...
36
Assy - Crankcase & Crankshaft (Incl. 31,35) PLN-545102102

...
37
O-Ring (Rear Plug) (gasket kit) PLN-545081832

...
38
Assy - Rear Plug (Incl. 37) PLN-530057954

...

...
40
Kit - Gasket (Incl. 5,19,20,28,37) PLN-545081832

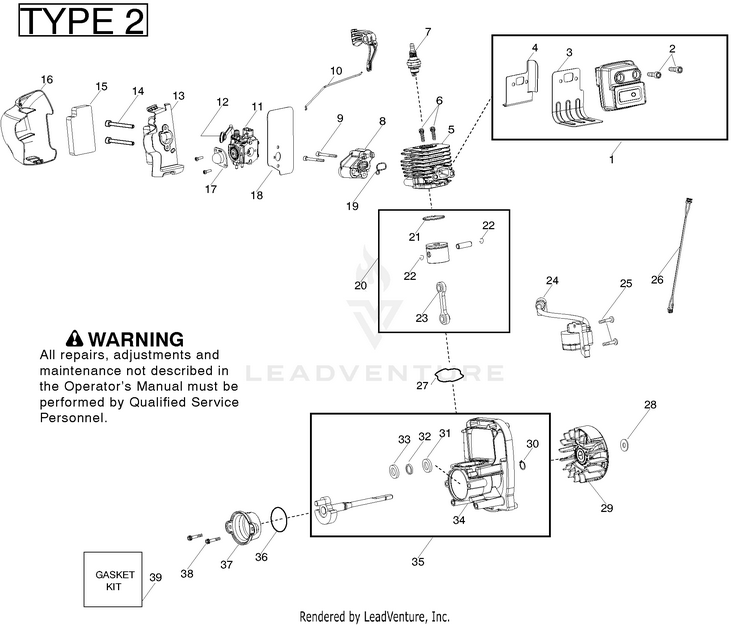

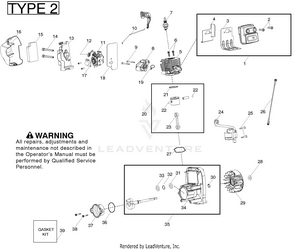

Engine Type 2

...
...
1
Assy - Muffler (Incl. 2,3,4) PLN-525592801


...
3
Gasket-Muffler (gasket kit) PLN-545081832

...
4
Shield - Muffler Heat PLN-545098801

...
5


...
7
Spark Plug (RCJ-6Y) PLN-952030249

...
8
Adapter - Carb. PLN-545084901


...
10
Linkage - Throttle PLN-545115501

...
11
Kit - Carb. Assy (WT847) (Incl. 12,17) PLN-545081831

...
12
Lever- Choke, (Gold) PLN-545157102

...
12
Lever- Choke, (Red) PLN-545157103

...
13
Base - Airbox PLN-545112603

...

...
15

...
16
Cover - Air Box Filter PLN-545112702

...
17
Bulb - Purge (walbro 188-16) PLN-530035497

...
18
Gasket (Carb / Adapter) (gasket kit) PLN-545081832

...
19
O-Ring (Adapter / Cylinder) (gasket kit) PLN-545081832

...
20
Kit - Piston / Connecting Rod (Incl. 21,22,23) PLN-545081864

...
21
PISTON RING PLN-545154009

...
22
Retainer - Wrist Pin PLN-530015162

...
23
KIT PISTON CONN ROD FORGED PLN-545156002

...
24
Kit - Ignition Module PLN-545081826

...

...
26
Assy - Wire Harness PLN-545127601

...
27
O-Ring (Cyl/Crankcase) (gasket kit) PLN-545081832

...
28

...
29
FLYWHEEL ASSY PLN-545221701

...
30
Retainer - Crankshaft PLN-530015941

...
31
Bearing - Outer PLN-530055728


...
33
Bearing - Inner PLN-530032125

...
34
Assy - Crankcase (Incl. 31,32,33) PLN-530012582

...
35
Assy - Crankcase & Crankshaft (Incl. 30,34) PLN-545102102

...
36
O-Ring (Rear Plug) (gasket kit) PLN-545081832

...
37
Assy - Rear Plug (Incl. 36) PLN-530057954

...

...
39
Kit - Gasket (Incl. 3,18,19,27,36) PLN-545081832

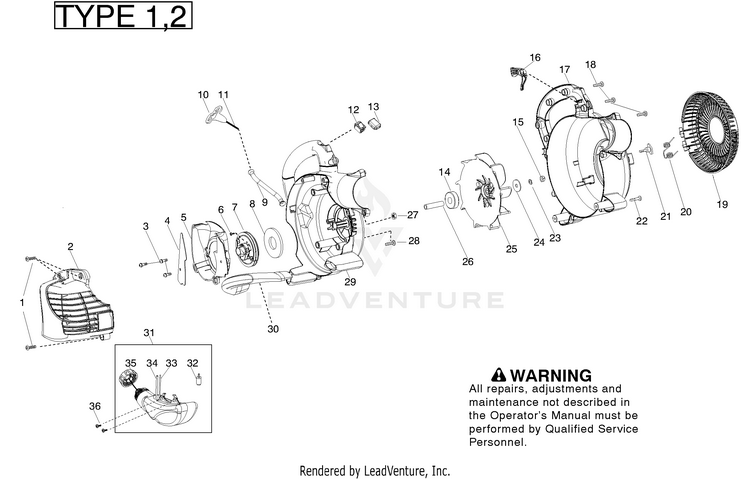

Housing Type 1, 2

...

...
2
Assy - Engine Cover PLN-545135806


...
4
Shield - Baffle PLN-545134001

...


...
7
Kit - Starter Pulley PLN-545081852

...
8
KIT STARTER SPRING PLN-545008011

...
9
Tube - Starter Rope PLN-545107101

...
10
Handle - starter PLN-530054834

...
11
Kit - Rope PLN-545081833

...
12
Kit - Switch (momentary) (Incl. 13) PLN-545081830

...
13
Protector - Switch PLN-545128201

...
14


...
16
Trigger - Throttle PLN-545113803

...
17
Assy - Scroll LH (Incl. 19,20) PLN-545134103

...

...
19
Door- Vac PLN-545100801

...
20
Spring - Vac Door PLN-545115601

...
21
Knob - Blower PLN-545144501

...
22
Screw - Handle Vac PLN-530016406

...
23
Washer - Lock PLN-530092322

...
24
Washer - Impeller PLN-545109901

...
25
ASSY IMPELLER HUB PRO GOLD PLN-580780901

...
26
Spacer - Flywheel PLN-545113701


...

...
29
FAN HOUSING (Incl. 14) PLN-545100903

...
30
Handle - Vac PLN-545101201

...
31
FUEL TANK (Incl. 32,33,34,35) PLN-576764901

...
32
Assy - Fuel Pickup PLN-530095646

...
33
Kit - Fuel Line (carb/purge) PLN-530069247

...
34
Kit - Fuel Line (tank/purge) PLN-530069216

...
35
Assy - Fuel Cap w/retainer PLN-530057973

...
36
Screw - Fuel Tank Retainer PLN-530016445

...
36
Manual Not Shown PLN-115351127

...
36
Decal - Warning Not Shown PLN-527290301

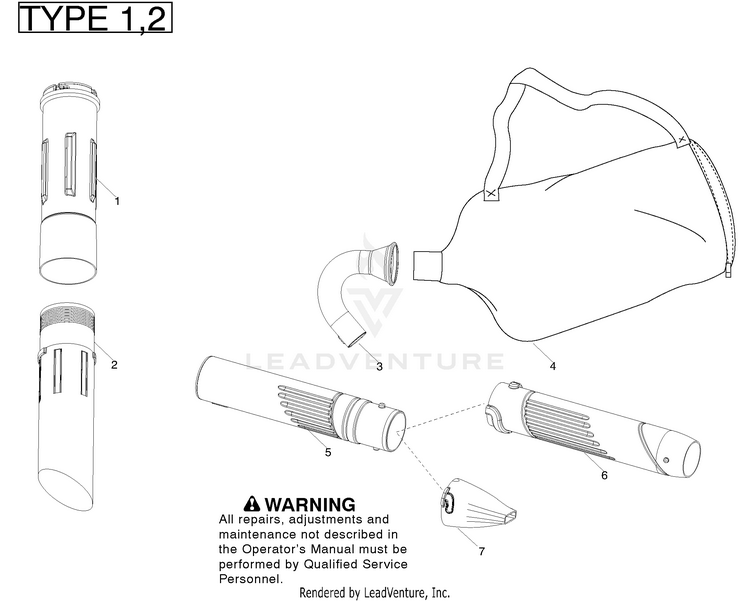

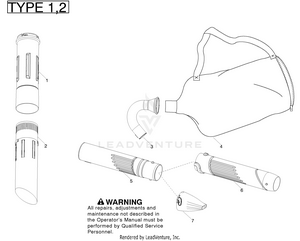

Tubes Type 1,2

...
...
1
Tube - Upper Vac PLN-545099401

...
2
Tube - Lower Vac PLN-530095589

...
3

...
4
Assy - Vac Bag PLN-530095564

...
5
Tube - Upper Blower PLN-545100501

...
6
Tube - Lower Blower PLN-545100601

...
7
Nozzle - High Speed PLN-545151201
...
...
...
