Poulan Pro BP406 Back Pack Blower

Model: BP406 - Poulan Pro Back Pack Blower

Save
 Part Not Listed?Part Not Listed?

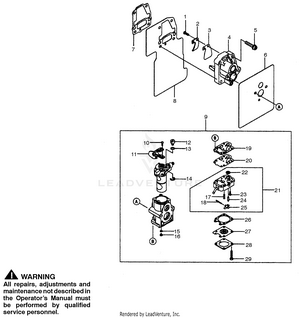

product name

Carburetor

...
...
1
Screw m3x12 PLN-921722091
...
2
Stopper PLN-320852105
...
3
Valve-Reed PLN-120222059
...
4
Insulator PLN-160732235
...
5
Screw m5x25 PLN-920092235
...
6
Gasket-carb. "B" PLN-110612160
...
7
Gasket-Insulator "A" PLN-110612150
...
8
Gasket "C" PLN-110612196
...
9
Assy-Carburetor PLN-150042034
...
10
Screw "A" PLN-920092277
...
11
Bracket PLN-110532066
...
12
Arm PLN-210832073
...
13
Washer PLN-922002074
...
14
Ring-Snap PLN-920332078
...
15
O-Ring PLN-920552147
...
16
Jet-Main #56 PLN-920632480
...
17
Spring PLN-921442308
...
18
Pin PLN-920432094
...
19
Gasket PLN-110612054
...
20
Diaphragm PLN-430282067
...
21
Body PLN-161602138
...
22
Filter PLN-140432051
...
23
Screw PLN-920092336
...
24
Valve-Float PLN-160302078
...
25
Lever PLN-160552051
...
26
Gasket PLN-110602456
...
27
Diaphragm PLN-430282090
...
28
Cover PLN-140252157
...
29
Screw PLN-920092438

Engine

...
...
1
Screw PLN-214B0408
...
2
Plate PLN-132712250
...
3
Cylinder-Engine PLN-110052156
...
4
Bolt m5x20 PLN-545145461
...
5
Gasket-Cylinder PLN-110612148
...
6
Bolt m6x20 PLN-545145465
...
7
Screw PLN-920092411
...
8
Spark Arrestor PLN-180772134
...
9
Assy-Muffler PLN-490692417
...
10
Screw m5x14 PLN-545145467
...
11
Gasket PLN-110612186
...
12
Gasket PLN-110612188
...
13
Ring-Piston (Set) PLN-130086067
...
14
Piston-Engine PLN-130012164
...
15
Pin-Piston PLN-130022094
...
16
Ring-Snap PLN-920332058
...
17
Spacer PLN-920262352
...
18
Bearing-Small End PLN-130332059
...
19
Pin PLN-920431302
...
20
Crankcase PLN-140802057
...
21
Seal-Oil (15-25-7-F) PLN-920492259
...
22
Screw m5x40 PLN-545145462
...
23
Bearing-Ball PLN-920452269
...
24
Assy-Crankshaft PLN-491192224
...
25
Crankcase "A" TK045D AC51 Engine PLN-140802058

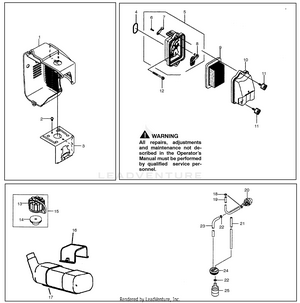

Fuel Tank

...
...
1
Shround-Engine "A" PLN-490892635
...
2
Screw m5x10 PLN-545145463
...
3
Shround-Engine PLN-490892612
...
4
O-Ring 31.2 i.d. PLN-920552205
...
5
Assy-Air filter case PLN-110382091
...
6
Screw m3x10 PLN-920092359
...
7
Lever PLN-131682493
...
8
Valve PLN-161262241
...
9
Element-Air Filter PLN-110292022
...
10
Cap-Air Filter PLN-110652119
...
11
Bolt m5x18 PLN-921532107
...
12
Screw m5x55 PLN-545145466
...
13
Cap-Assy tank PLN-510482083
...
14
Breather PLN-140692088
...
15
Assy-Cap/Breather PLN-999966089
...
16
Band PLN-545145480
...
17
Fuel Tank PLN-545145479
...
18
Clamp PLN-921702110
...
19
Tube 2.3x5x93 PLN-921922086
...
20
Pump-Priming carb PLN-490432073
...
21
Tube 3x5x300 PLN-921912136
...
22
Clamp PLN-921712073
...
23
Tube 3x6x160 "A" PLN-921922150
...
24
Grommet-tank PLN-920712142
...
25
Filter-Fuel PLN-490192085

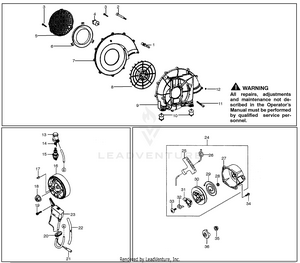

Housing

...
...
1
Screw m5x25 PLN-545145494
...
2
Screw m5x65 PLN-545145498
...
3
Screw-Tapping m5x20 PLN-545145491
...
4
Vibro-Isolating rubber PLN-545145492
...
5
Cover-Fan PLN-545145500
...
6
Cover PLN-545145501
...
7
Case-Fan PLN-545145493
...
8
Fan PLN-545145495
...
9
Case-Fan PLN-545145496
...
10
Vibro-Isolating rubber PLN-545145492
...
11
Screw m6x30 PLN-545145497
...
12
Nut-Nylon PLN-545145499
...
13
Cap-Spark plug PLN-211302056
...
14
Terminal PLN-211692051
...
15
Plug-Spark (BPMR7A(NGK) Solid) PLN-920702113
...
16
Flywheel PLN-210502310
...
17
Key-Woodruff PLN-545145464
...
18
Nut-m10 PLN-922101325
...
19
Bolt m4x20 PLN-921532079
...
20
Grommet PLN-920712164
...
21
Wire-Lead PLN-260112379
...
22
Tube 6x7.4x300 PLN-920592233
...
23
Assy-Ignition coil PLN-211712246
...
24
Starter-Recoil PLN-490882540
...
25
Grip-Starter Recoil PLN-460752153
...
26
Rope-3.5x1000 PLN-591062174
...
27
Case-Starter Recoil PLN-320992400
...
28
Spring PLN-921452142
...
29
Spring-Recoil "A" PLN-921452143
...
30
Reel-Starter Recoil PLN-591012117
...
31
Pawl-Starter Recoil PLN-131652101
...
32
Retainer PLN-140202113
...
33
Screw PLN-921722083
...
34
Screw m4x16 PLN-920092386
...
35
Nut PLN-922102094
...
36
Pulley-Starting PLN-490802198

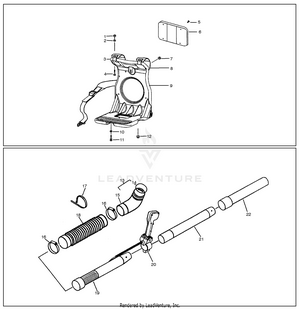

Tube

...
...
1
Nut-Nylon Flange PLN-545145468
...
2
Washer PLN-545145469
...
3
Shoulder Band PLN-545145470
...
4
Screw-Truss PLN-376L0616
...
5
Clip PLN-545145473
...
6
Pad-Knapsack PLN-545145474
...
7
Nut PLN-545145472
...
8
Shoulder Band PLN-545145471
...
9
Frame-Knapsack PLN-545145478
...
10
Washer PLN-545145469
...
11
Screw m6x25 PLN-545145475
...
12
Nut PLN-545145472
...
13
Elbow Pipe C.P. PLN-545145481
...
14
O-Ring PLN-545145482
...
15
Elbow Pipe PLN-545145483
...
16
Hose Band PLN-545145484
...
17
Wire Band PLN-545145485
...
18
Flex Pipe PLN-545145486
...
19
Base Pipe PLN-545145487
...
20
Assy-Throttle Lever PLN-545145488
...
21
Middle Pipe PLN-545145489
...
22
Bend Pipe PLN-545145490
...
...
...
