Poulan Pro BP402 Back Pack Blower

Model: BP402 - Poulan Pro Back Pack Blower

Save
 Part Not Listed?Part Not Listed?
product name

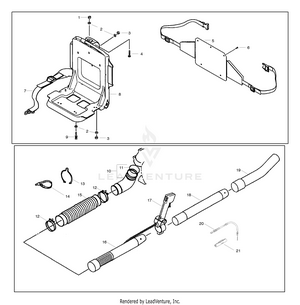

Back Pack & Tube Assembly

...
...
1
Nut-Nylon Flange PLN-530089316
...
2
Washer PLN-530089444
...
3
Nut-Hex-U PLN-530089326
...
4
Screw-Truss PLN-376L0616
...
5
Pad-Knapsack PLN-91027-128
...
6
Clip PLN-68027-107
...
7
Band-Shoulder PLN-36063-196
...
8
Frame-Knapsack PLN-36122-124
...
9
Screw m6x15 PLN-375L0615
...
10
Pipe-Elbow C.P. (Incl .#11) PLN-530089363
...
11
O-Ring PLN-545145482
...
12
Band-Hose PLN-68031-120
...
13
Clamp-Wire PLN-530089436
...
14
Band-Wire PLN-530089230
...
15
Pipe-Flex PLN-530089225
...
16
Pipe-Base PLN-530089386
...
17
Assy-Throttle Lever PLN-71056-208
...
18
Pipe-Middle PLN-530089387
...
19
Pipe-Bend PLN-530089388
...
20
Cable-Throttle PLN-540122578
...
21
Case PLN-320992326

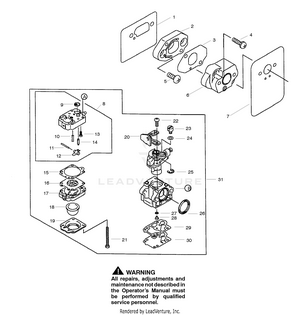

Carburetor Assembly

...
...
1
Gasket-Insulator PLN-530058433
...
2
Adapter PLN-530058431
...
3
Gasket PLN-530058434
...
4
Screw-Pan-WP PLN-233B0520
...
5
Screw-Pan PLN-214B0616
...
6
Insulator PLN-530058432
...
7
GASKET PLN-110602388
...
8
Body PLN-530058477
...
9
Filter PLN-140432051
...
10
Spring PLN-921442308
...
11
Pin PLN-920432094
...
12
Lever PLN-160552051
...
13
Screw PLN-530058450
...
14
Valve-Float PLN-160302078
...
15
Gasket PLN-530058454
...
16
Diaphragm PLN-530058455
...
17
Body PLN-530058456
...
18
PRIMING PUMP PLN-490432067
...
19
Cover-Primer Pump PLN-530058458
...
20
Bracket PLN-530058437
...
21
Screw PLN-530058459
...
22
Screw "A" PLN-920092277
...
23
Arm PLN-210832073
...
24
Washer PLN-922002074
...
25
Ring-Snap PLN-530058441
...
26
Packing PLN-530058442
...
27
O-Ring PLN-920552147
...
28
Jet-Main #60 PLN-530058444
...
29
Gasket PLN-530058445
...
30
Diaphragm PLN-430282067
...
31
CARB ASSY PLN-150032738

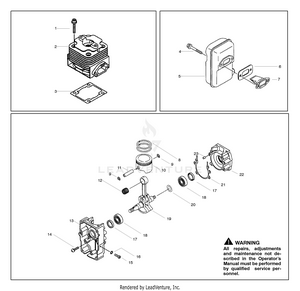

Cylinder & Crankcase Assembly

...
...
1
Bolt PLN-530058381
...
2
Cylinder-Engine PLN-110052133
...
3
Gasket-Cylinder PLN-110602350
...
4
Bolt 6x65 PLN-921502180
...
5
MUFFLER-COMP KAAZ # PLN-490702751
...
6
Gasket-Muffler PLN-110092873
...
7
Arrester-Spark PLN-180772093
...
8
Ring-Piston Set PLN-530094023
...
9
Ring-Snap PLN-530094025
...
10
Piston-Engine PLN-130012121
...
11
Pin-Piston PLN-530094024
...
12
Bearing-Needle PLN-530094027
...
13
Crankcase PLN-140022330
...
14
Screw-Pan-WS PLN-223B0630
...
15
Screw-Pan PLN-214B0608
...
16
Gasket PLN-751Q0600
...
17
Seal-Oil PLN-920492076
...
18
Bearing-Ball 6202C3 PLN-920452005
...
19
Assy-Crankshaft (incl. #12) PLN-530058389
...
20
Shim-T=0.10 PLN-920252134
...
20
Shim-T=0.20 PLN-920252135
...
20
Shim-T=0.40 PLN-530094030
...
20
Shim-T=0.60 PLN-530058394
...
21
Gasket-Crankcase PLN-110092521
...
22
Crankcase PLN-140022333
...
23
Pin-Dowel PLN-551A0610

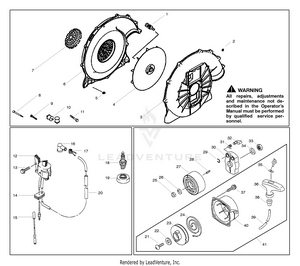

Housing & Ignition Assembly

...
...
1
Bolt-Lock PLN-530058344
...
2
Nut-Nylon PLN-572L0600
...
3
Case-Fan PLN-51123-179
...
4
Fan PLN-51125-112
...
5
Nut-Hex PLN-530089324
...
6
Case-Fan PLN-51123-178
...
7
Cover-Fan PLN-36083-105
...
8
Screw-Socket PLN-412L0665
...
9
Screw-Tapping m5x20 PLN-470L0520
...
10
Isolator-Vibro Rubber PLN-530089368
...
11
Bolt-Lock PLN-530058346
...
12
Assy-Ignition Coil PLN-530089445
...
13
Bolt PLN-530094080
...
14
Grommet PLN-920712077
...
15
Wire-Lead PLN-260112321
...
16
Cap-Spark Plug PLN-530094085
...
17
Terminal PLN-530094086
...
18
Plug-Spark NGK (BPMR7A)solid PLN-920702107
...
19
Boot PLN-490062051
...
20
Tube-6x7.4x300 PLN-920592233
...
21
Screw PLN-920092218
...
22
Washer PLN-922002019
...
23
Reel-Starter Recoil PLN-591012085
...
24
Spring-Recoil PLN-921442038
...
25
Nut-Hex (fine) PLN-314R1000
...
26
Washer PLN-920222147
...
27
Flywheel PLN-210502260
...
28
Key PLN-920382078
...
29
Ring-Snap PLN-920332010
...
30
Pulley-Starting PLN-490802155
...
31
Spring-Return PLN-921442046
...
32
Pawl-Recoil Starter PLN-131652070
...
33
Nut-Hex (fine) PLN-315B0800
...
34
W-Plain-S PLN-410B0800
...
35
Plate-Recoil Starter PLN-131692386
...
36
Grip-Recoil Starter PLN-530058416
...
37
Screw PLN-530058422
...
38
Guide-Rope PLN-130702064
...
39
Rope 3.8x850 PLN-591062117
...
40
Case-Recoil Starter PLN-320992210
...
41
Starter-Recoil (incl.# 21-40) PLN-490882380

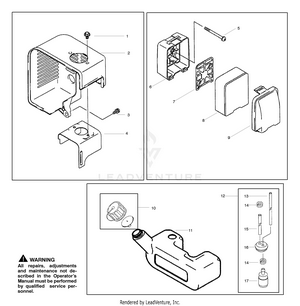

Tank & Air Filter Assembly

...
...
1
Bolt PLN-921512063
...
2
Shroud-Engine PLN-490892370
...
3
Screw PLN-920092285
...
4
Shroud-Engine PLN-490892298
...
5
Screw PLN-920092274
...
6
Assy-Air Filter Case PLN-530058475
...
7
Plate-Air Filter PLN-530058477
...
8
AIR FILTER ELEMENT PLN-110132179
...
9
Cap-Air Filter PLN-530058479
...
10
Assy-Tank Cap PLN-530058366
...
11
Tank-Fuel PLN-36066-113
...
12
Assy-Fuel Pickup (Incl. 13-17) PLN-530058367
...
13
Tube 3x5x250 PLN-530058473
...
14
Clamp PLN-921712073
...
15
TUBE PLN-921912049
...
16
Grommet-tank PLN-920712142
...
17
Filter-Fuel PLN-490192085
...
...
...
