product name

Poulan Pro BP400 Gas Blower

Model: BP400 Gas Blower

Save
 Part Not Listed?Part Not Listed?
product name

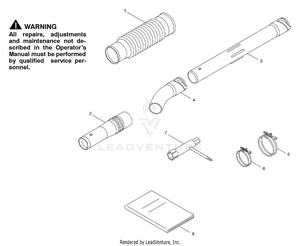

*Attachments

...
...
1
Tube - Flex PLN-530058481
...
2
Tube - Base PLN-530058482
...
3
Tube - Middle PLN-530058483
...
4
Nozzle PLN-530058484
...
5
Clamp - Wire Lg. PLN-530058485
...
6
Clamp - Wire Sm. PLN-530058486
...
7
Scrench PLN-530058487
...
8
Manual PLN-530088812

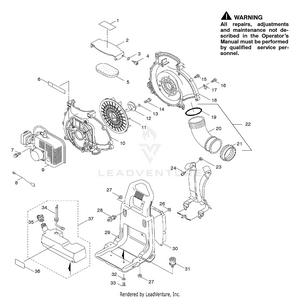

Blower Assembly

...
...
1
Label - Model/Inst. (Not a serviceable part) PLN-530058370
...
2
Cover PLN-530058351
...
3
Washer - Cover screw PLN-530058352
...
4
Screw - Cover PLN-530058353
...
5
Packing PLN-530058350
...
6
Label - Warning (Not a serviceable part) PLN-530058371
...
7
Bolt PLN-530058337
...
8
Ground Wire PLN-530058338
...
9
Shroud PLN-490892370
...
10
Fan Housing - Rear PLN-530058339
...
11
Impeller PLN-530058341
...
12
Plate - Impeller PLN-530058342
...
13
Washer - Spring PLN-530058343
...
14
Bolt PLN-530058344
...
15
Screw - Fan Housing PLN-530058346
...
16
Screw - Clamp PLN-530058354
...
17
Clamp PLN-530058345
...
18
Fan Housing-Front PLN-530058340
...
19
O-Ring (large) PLN-530058347
...
20
Tube - Blower Outlet PLN-530058348
...
21
Joint - Rubber PLN-530058349
...
22
Kit-Tube & O-Ring (Incl. 19,20,21) PLN-530071388
...
23
Nut PLN-530058358
...
24
Bolt PLN-530058357
...
25
Assy. - Shoulder Strap PLN-530058356
...
26
Fastener - Pad PLN-530058363
...
27
Nut PLN-530058360
...
28
Isolator - Top PLN-530058359
...
29
Frame PLN-530058355
...
30
Pad - Cushion PLN-530058362
...
31
Isolator - Bottom PLN-530058361
...
32
Washer PLN-530058368
...
33
Screw PLN-530058369
...
34
Fuel Filter Assy. PLN-530058367
...
35
Fuel Cap Assy. PLN-530058366
...
36
Label-Fuel (Caution) (Not a serviceable part) PLN-530058372
...
37
Fuel Tank Assy. (Incl. 32,33,34 & 39) PLN-530058364

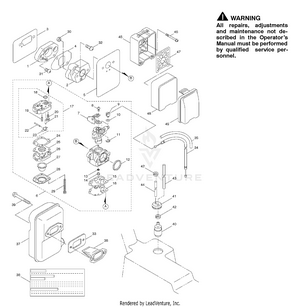

Carburetor Assembly

...
...
1
Adapter PLN-530058431
...
2
Insulator PLN-530058432
...
3
Gasket PLN-530058433
...
4
Gasket PLN-530058434
...
5
GASKET PLN-110602388
...
6
CARB ASSY PLN-150032738
...
7
Bracket PLN-530058437
...
8
Screw "A" PLN-920092277
...
9
Arm PLN-210832073
...
10
Washer PLN-922002074
...
11
Snap Ring PLN-530058441
...
12
Packing PLN-530058442
...
13
O-Ring PLN-920552147
...
14
Main Jet PLN-530058444
...
15
Gasket PLN-530058445
...
16
Diaphragm PLN-430282067
...
17
Body Assy. PLN-530058447
...
18
Filter PLN-140432051
...
19
Spring PLN-921442308
...
20
Screw PLN-530058450
...
21
Float Valve PLN-160302078
...
22
Pin PLN-920432094
...
23
Lever PLN-160552051
...
24
Gasket PLN-530058454
...
25
Diaphragm PLN-530058455
...
26
Body PLN-530058456
...
27
PRIMING PUMP PLN-490432067
...
28
Primer Pump Cover PLN-530058458
...
29
Screw PLN-530058459
...
30
Nut PLN-920152097
...
31
Screw PLN-530058461
...
32
Screw PLN-233B0520
...
33
Muffler Gasket PLN-110092873
...
34
Throttle Cable PLN-530058464
...
35
Vinyl Pipe PLN-530058465
...
36
Spark Arrester PLN-180772093
...
37
MUFFLER-COMP KAAZ # PLN-490702751
...
38
Label-fuel mix inst. PLN-530058468
...
39
Bolt PLN-921502180
...
40
Filter-Fuel PLN-490192085
...
41
Grommet-tank PLN-920712142
...
42
Clamp PLN-921712073
...
43
Tube PLN-530058473
...
44
TUBE PLN-921912049
...
45
Air filter case Assy. PLN-530058475
...
46
Screw PLN-530058476
...
47
Air Filter Plate PLN-530058477
...
48
AIR FILTER ELEMENT PLN-110132179
...
49
Air Filter Cap PLN-530058479

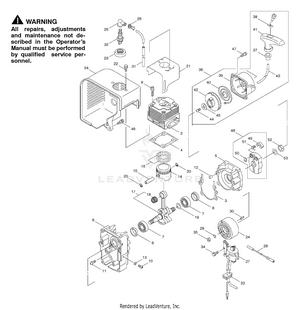

Engine Assembly

...
...
2
Cylinder PLN-110052133
...
3
Gasket PLN-110092521
...
4
Gasket PLN-110602350
...
5
Crankcase PLN-140022239
...
6
CRANKCASE PLN-530058378
...
7
Bearing PLN-920452005
...
8
Oil Seal PLN-920492076
...
9
Bolt PLN-530058381
...
10
Screw PLN-214B0608
...
11
Screw PLN-223B0630
...
12
Dowel Pin PLN-551A0610
...
13
Gasket PLN-751Q0600
...
14
Piston PLN-130012121
...
15
Piston Pin PLN-130022065
...
16
Piston Ring Set PLN-530094023
...
17
Crankshaft Assy. (Incl. #18) PLN-530058389
...
18
Needle Bearing PLN-530094027
...
19
Shim 0.10mm PLN-920252134
...
19
Shim 0.20mm PLN-920252135
...
19
Shim 0.40mm PLN-530094030
...
19
Shim 0.60mm PLN-530058394
...
20
Snap Ring PLN-920332058
...
21
Shroud-Heat Shield PLN-490892298
...
22
Bolt PLN-921512063
...
23
Boot PLN-490062051
...
24
Flywheel PLN-530058399
...
25
Spark Plug Cap PLN-530094085
...
26
Terminal PLN-530094086
...
27
Ignition Coil Assy. PLN-530089445
...
28
Leadwire PLN-260112321
...
29
Washer PLN-920222147
...
30
Key PLN-920382078
...
31
Tube PLN-920592233
...
32
Spark Plug PLN-530058407
...
33
Grommet PLN-920712077
...
34
Bolt PLN-530094080
...
35
Nut PLN-314R1000
...
36
Assy-Recoil Starter PLN-490882380
...
37
Rope Guide PLN-130702064
...
38
Plate PLN-131692386
...
39
Recoil Starter Case PLN-320992210
...
40
Spring-Recoil PLN-921442038
...
41
Grip PLN-530058416
...
42
Pulley PLN-591012085
...
43
Rope PLN-591062117
...
44
Screw PLN-920092218
...
45
Washer PLN-922002019
...
46
Screw PLN-920092285
...
47
Screw PLN-530058422
...
48
Starter Pulley PLN-490802155
...
49
Pawl PLN-131652070
...
50
Snap Ring PLN-920332010
...
51
Return Spring PLN-921442046
...
52
Nut PLN-315B0800
...
53
Washer PLN-410B0800
...
54
Shroud PLN-490892370

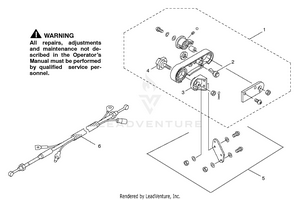

Throttle Lever Assembly

...
...
1
Throttle lever Assy. PLN-530058490
...
2
Switch PLN-530058506
...
3
Flange PLN-530058502
...
4
Knob Bolt PLN-530058503
...
5
Kit - Plate PLN-530071389
...
6
Assy. - Throttle Cable PLN-530058511
...
...
...
