Poulan Pro BH2660 Poulan Pro Gas Saw

Model: BH2660 Poulan Pro Gas Saw

Back To Assemblies

Save Part Not Listed?
product name

Engine

...
...
1
Screw PLN-530016153
...
2
Assy-Cylinder Shield (includes # 16) PLN-530055638
...
3
Kit-Fuel Line (Small) PLN-530069247
...
4
Kit-Purge Bulb (incl. #5) PLN-530071835
...
5
Screw PLN-530015780
...
6
Assy-Fuel Pick-up PLN-530095646
...
7
Strap-Ground PLN-530047442
...
8
Ignition Module PLN-530039198
...
9
Screw PLN-530015814
...
10
Assy-Wire Harness PLN-530057475
...
11
Foam- Air Filter PLN-530037793
...
12
Nut PLN-530016101
...
13
Assy- Air Box PLN-530057702
...
14
Grommet-Carb Adjust PLN-530035526
...
15
Seal-Carb Adapter PLN-530054144
...
16
Reflector-Heat PLN-530055698
...
17
BPMR7A NGK SPARK PLUG PLN-503235111
...
18
Clip-High Tension Lead PLN-530016136
...
19
Cylinder PLN-530012550
...
20
Backplate-Muffler PLN-530049870
...
21
Gasket-Muffler(kit) PLN-530069608
...
22
Diffuser-Muffler PLN-530037813
...
23
Screen-Spark PLN-530036103
...
24
Bolt-Muffler PLN-530016132
...
25
Grommet-Throttle Cable PLN-530047631
...
26
Kit-Carburetor (Walbro-WT-89) PLN-545081885
...
26
Kit-Carburetor (Walbro-WT-89) PLN-545081885
...
27
Gasket-Carb. (kit) PLN-530069608
...
28
Screw PLN-530016386
...
29
Carb. Adapter PLN-530049700
...
30
Screw PLN-530016187
...
31
Gasket- Adaptor(kit) PLN-530069608
...
32
Ring-Piston PLN-545160401
...
33
Retainer-Piston Pin PLN-530015697
...
34
Kit-Piston (Incl. 32 & 33) PLN-530071408
...
35
Kit-Engine Gasket (Incl. 21, 27 & 31) PLN-530069608
...
36
Wrench-bar PLN-530031163
...
37
Assy-Seal & Bearing PLN-530056363
...
38
Cap-Crankcase PLN-530037935
...
39
CRANKSHAFT ASSY PLN-545113101
...
40
MUFFLER (Incl . 20,21,22,23,24) PLN-530071904
...
40
Manual Not Shown PLN-545123780
...
40
Decal-Warning Not Shown PLN-530057757

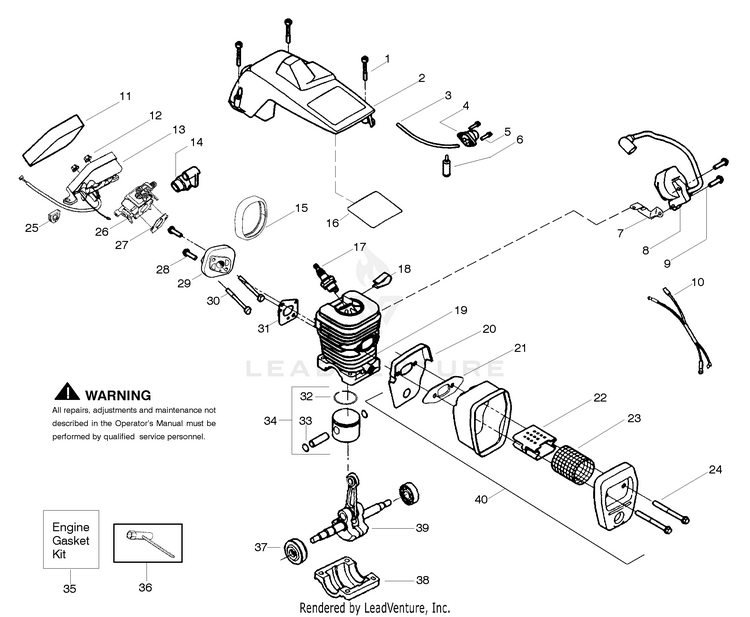

Schematic Image Zoomed
