product name

Poulan Pro 222 Gas Saw, PP222

Model: 222 Gas Saw, PP222 Gas Saw, 222 - Poulan Pro

Back To Assemblies

Save Part Not Listed?
product name

Starter

...
...
1
Kit-Trigger & Lockout (Includes Pin) PLN-530071832
...
2
Lever-Switch PLN-530038227
...
3
Spring-Switch PLN-530016149
...
4
Screw PLN-530015775
...
5
Kit-Fuel Line (Large) PLN-530069216
...
6
Fitting - Fuel line PLN-530023877
...
7
FUEL CAP ASSY PLN-580940901
...
8
Clip - ''U'' PLN-530055322
...
9
Shield - Heat PLN-530055183
...
10
Lever-Choke PLN-530047989
...
11
Grommet-Choke lever PLN-530049005
...
12
Wire-Throttle PLN-530037809
...
13
Nut-Speed PLN-530015922
...
14
Assy.-Clutch PLN-530014949
...
15
Washer-Clutch PLN-530015611
...
16
Assy-Drum W/brg. PLN-530047061
...
17
Washer - Thrust PLN-530015907
...
18
Assy-Chassis (Incl. # 1,5,6,7,13, 30,31,32) PLN-530058908
...
19
FLYWHEEL ASSY PLN-530047534
...
20
Washer-Flywheel PLN-530015127
...
21
Nut-Flywheel PLN-530016134
...
22
Screw PLN-530015920
...
23
Housing-Fan PLN-530049335
...
24
Screw PLN-530015892
...
25
Handle-Starter PLN-530056402
...
26
Kit-Rope PLN-530069232
...
27
SPRING STARTER PLN-545008015
...
28
STARTER PULLEY PLN-545034301
...
29
Screw PLN-530016080
...
30
Kit-Oil Check Valve PLN-530071666
...
31
Assy-Oil Cap PLN-530057236
...
32
Bolt - Bar PLN-530016133
...
33
Chain Catcher PLN-530029850
...
34
Screw PLN-530015814
...
35
Plate-Bar Mounting PLN-530038238
...
36
Assy.-Chain Brake PLN-545139915
...
37
Nut-Bar Mounting PLN-530015917
...
38
BAR PLN-578138101
...
39
ACCY P/PP CHN 16" 56DL 3/8 PLN-581562201
...
40
Screw PLN-530016132
...
41
Screw PLN-530015814
...
42
Handle-Front PLN-530059173
...
43
Screw PLN-530015940
...
44
Kit-Oil Pump (Incl 45,46,48) PLN-530071259
...
45
Gear-Worm Spring PLN-530037820
...
46
Elbow-Oil Pickup PLN-530049477
...
47
SCREW 6-19X.437 PLN-545227101
...
48
Block-Seal PLN-530019206
...
49
Assy-Oil-Pickup (Incl. 50, 51 ) PLN-530047663
...
50
Pickup-Oiler PLN-530038373
...
51
Filter-Oil PLN-530056533

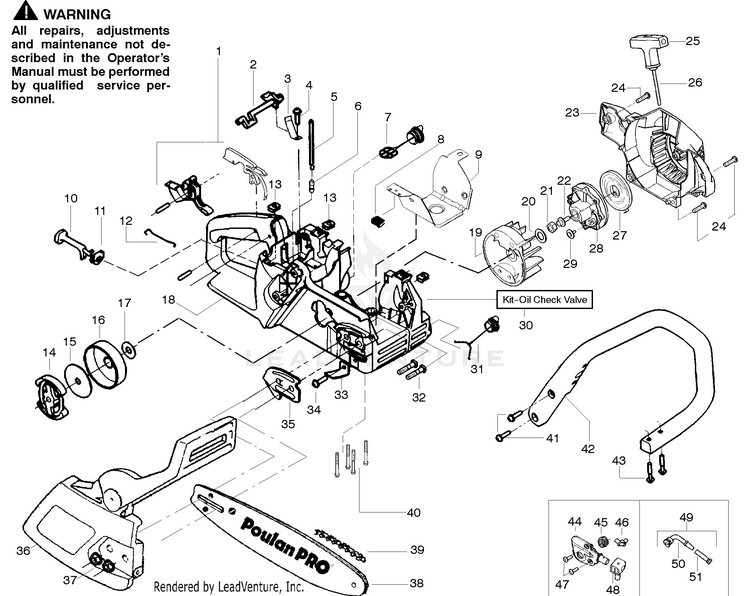

Schematic Image Zoomed
