Poulan Pro 112 Gas Trimmer

Model: 112 Gas Trimmer

Save Part Not Listed?
product name

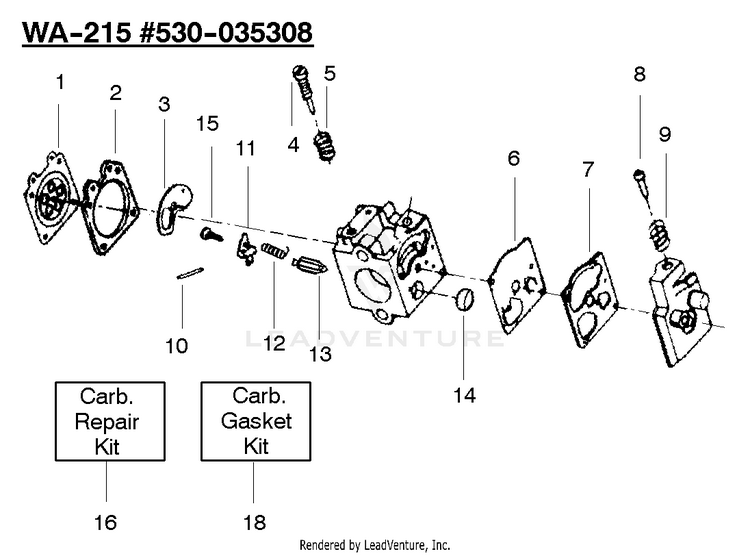

Carburetor Assy. (WA-215) PN 530-035308

...
...
1
DIAPHRAGM (Indicates Contents) PLN-503896701
...
2
Metering Diaphragm Gasket (Indicates Contents) PLN-530035011
...
3
Circuit Plate Gasket (Indicates Contents) PLN-530035211
...
4
Mixture Needle PLN-530035212
...
5
Mixture Needle Spring PLN-530035293
...
6
PUMP DIAPHRAGM (Indicates Contents) PLN-504130807
...
7
GASKET (Indicates Contents) PLN-504130906
...
8
Idle Speed Screw PLN-530035203
...
9
Idle Speed Spring PLN-530035121
...
10
Pin (Indicates Contents) PLN-505520125
...
11
Metering Lever (Indicates Contents) PLN-505520127
...
12
Metering Lever Spring (Indicates Contents) PLN-530037330
...
13
Inlet Needle Valve (Indicates Contents) PLN-530035016
...
14
Fuel Inlet Screen (Indicates Contents) PLN-530035178
...
15
Metering Lever Pin Screw (Indicates Contents) PLN-530035016
...
16
Carb. Kwik Repair Kit (Indicates Contents) PLN-530035264
...
17
Gasket Diaphragm Kit (Indicates Contents) PLN-530069844
...
530-035308
CARBURETOR PLN-530035308

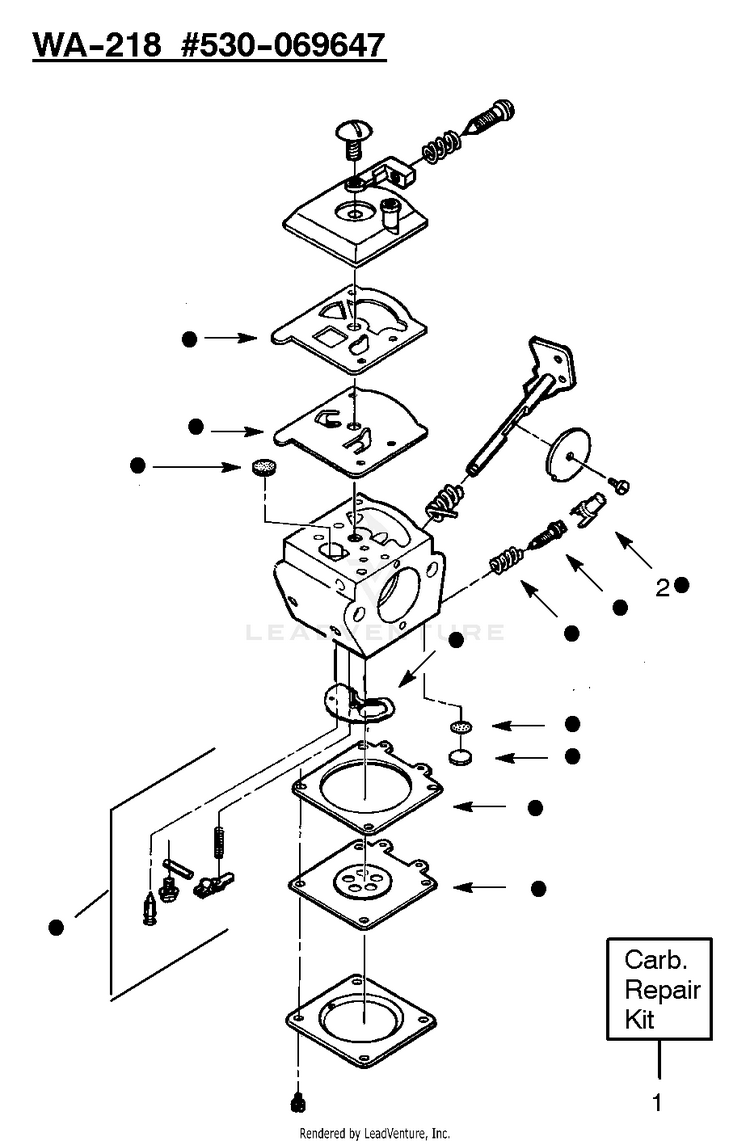

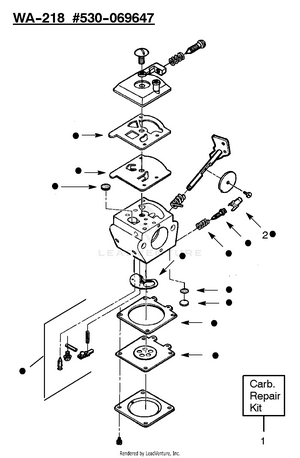

Carburetor Assy. (WA-218) PN 530-069647

...
...
1
Fuel Inlet Screen (DOT = Indicates Contents) PLN-530035300
...
2
Limiter Cap PLN-530038404
...
530-069647
CARBURETOR PLN-530069647

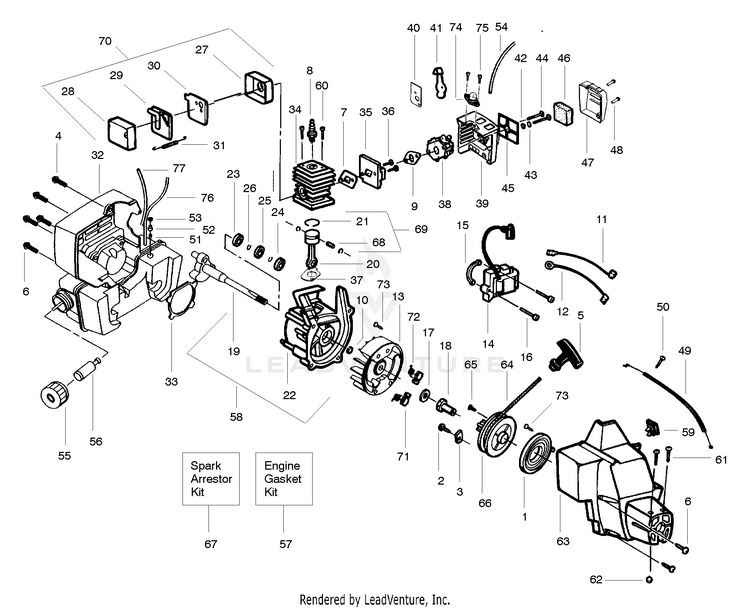

Engine Assy.

...
...
1
STARTER SPRING PLN-545008010
...
2
Screw PLN-530015775
...
3
Retainer PLN-530027523
...
4
Screw PLN-530015934
...
5
Starter Handle PLN-530027569
...
6
SCREW PLN-530016386
...
7
Cylinder Gasket PLN-530019233
...
8
Spark Plug PLN-503235112
...
9
Gasket PLN-530019194
...
10
Retainer PLN-530015941
...
11
Lead Wire PLN-530014663
...
12
SWITCH, GROUND WIRE PLN-581425901
...
13
FLYWHEEL ASSY PLN-545221701
...
14
Ignition Module PLN-530039163
...
15
Spacer PLN-530036145
...
16
Screw PLN-530015954
...
17
Washer PLN-530015828
...
18
Drive Coupling PLN-530027953
...
19
Crankshaft Ass'y. PLN-530014532
...
20
Connecting Rod Ass'y. PLN-530069615
...
21
Piston Ring PLN-530036404
...
22
Crankcase Ass'y. PLN-530014861
...
23
Inner Bearing PLN-530032125
...
24
Outer Bearing PLN-530032124
...
25
C'case Seal PLN-530019179
...
26
Retaining Ring PLN-530015945
...
27
Muffler Body PLN-530036578
...
28
Muffler Cover PLN-530036577
...
29
Muffler Baffle-Exit PLN-530038602
...
30
Muffler Baffle-First PLN-530036579
...
31
Muffler Spring PLN-530016197
...
32
Shroud & Tank Assy. Type 1 PLN-530014852
...
32
Shroud & Tank Assy. Type 2 & 3 PLN-530047091
...
33
Gasket PLN-530019181
...
34
Kit-Carb. Adaptor PLN-530069769
...
36
Screw PLN-530016014
...
37
Gasket PLN-530019223
...
38
CARBURETOR PLN-530035308
...
38
CARBURETOR PLN-530069647
...
39
Air Box Type 1 PLN-530037390
...
39
Air Box Type 2 & 3 PLN-530037971
...
40
Choke Plate PLN-530037326
...
41
Choke Shutter PLN-530038102
...
42
Wave Washer PLN-530015254
...
43
Choke Spacer PLN-530015852
...
44
Screw PLN-530015887
...
45
Filter Plate PLN-530037413
...
46
Air Filter Foam PLN-530037331
...
47
Air Filter Cover PLN-530037292
...
48
Screw PLN-530015957
...
49
Assy Throttle Cable PLN-530071548
...
50
Screw PLN-530015814
...
51
Check Valve PLN-530026119
...
52
Element PLN-530029717
...
53
Retainer PLN-530029696
...
54
Fuel Line-Prim./Carb PLN-530069571
...
55
Fuel Cap Ass'y. PLN-530014347
...
56
Assy-Fuel Pickup PLN-530095646
...
57
Engine Gasket Kit (Incl. 7,9,33,37) PLN-530069616
...
58
C'case & C'shaft Assy. (Incl. 10,19,22-26) PLN-530014729
...
59
On/Off Switch PLN-530069572
...
60
Screw PLN-530015953
...
61
Screw PLN-530016072
...
62
Locknut PLN-530015768
...
63
Fan Housing PLN-530014921
...
64
Rope Kit PLN-530069232
...
65
Screw PLN-530016080
...
66
STARTER PULLEY KIT PLN-530071786
...
67
Spark Arrestor Kit PLN-530069380
...
68
Piston Pin Retainer PLN-530015162
...
69
Kit-Piston (Incl. 21,68 & Pin) PLN-530069621
...
70
Muffler Kit PLN-530069660
...
71
Starter Dog PLN-530029939
...
72
Starter Spring PLN-530047570
...
73
Screw-Flywheel PLN-530015882
...
74
Primer Bulb Ass'y. Type 2 & 3 PLN-530038874
...
75
Screw-Type II PLN-530015780
...
76
Fuel Line-Prim./Tnk. PLN-530069216
...
77
Fuel Line-Carb/Tnk. PLN-530069247

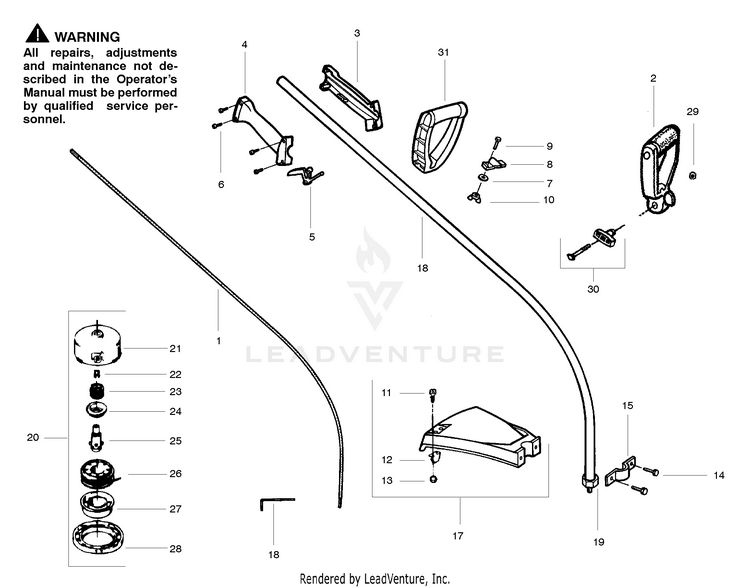

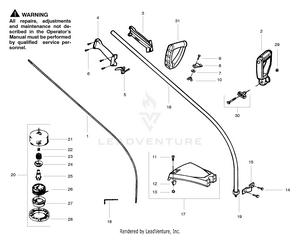

Handle & Shaft Assy.

...
...
1
Drive Shaft PLN-530095176
...
2
Handle PLN-530010957
...
3
Throttle Hsg. (Left) PLN-530036514
...
4
Throttle Hsg. (Right) PLN-530036515
...
5
Throttle Lever PLN-530036556
...
6
Screw PLN-530015957
...
7
Washer PLN-530092062
...
8
Clamp PLN-530094742
...
9
Bolt PLN-530015820
...
10
Nut PLN-530091373
...
11
Screw PLN-530015337
...
12
Line Limiter PLN-530094570
...
13
Nut PLN-530403094
...
14
Screw PLN-530016107
...
15
Bracket Shield PLN-530093653
...
16
Hex Wrench (5/32) PLN-530031159
...
17
Shield Kit Ass'y. (Incl. 11-14) PLN-530069249
...
18
ASM-DR.SHAFT W/SHIELD PLN-530071371
...
19
Dust Cup PLN-530094543
...
20
Cutting Head Ass'y. (Incl. 21-28) PLN-952711547
...
21
Hub PLN-530071295
...
22
Line Saver PLN-530093898
...
23
Spring PLN-530340007
...
24
Cap Spring PLN-530328929
...
25
Drive Gear PLN-530093897
...
26
Spool w/Line PLN-952701523
...
27
Release Button PLN-530401183
...
28
Cover PLN-530092133
...
29
Nut PLN-530015197
...
30
HANDLE KIT PLN-530069347
...
31
Assy-Assist Handle PLN-530055699
...
xx
Carton Contents Bag Not Shown PLN-530047068
...
xx
Operator Manual Type 2 Not Shown PLN-530081794
...
xx
Operator Manual Type 3 Not Shown PLN-530083186
...
xx
Shaft Warning Decal Not Shown PLN-530047899
...
xx
Instruction Decal Not Shown PLN-530047450

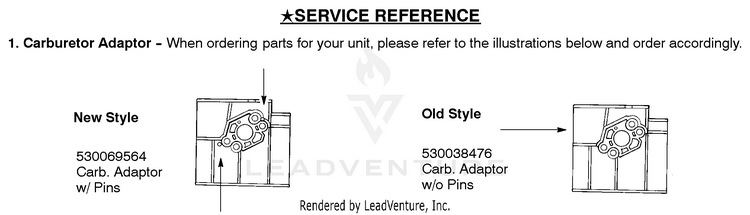

Service Reference

...

No Parts Available for this Schematic
