Poulan Paramount TT70C-00 Electric Trimmer

Model: TT70C-00 Electric Trimmer

Back To Assemblies

Save Part Not Listed?
product name

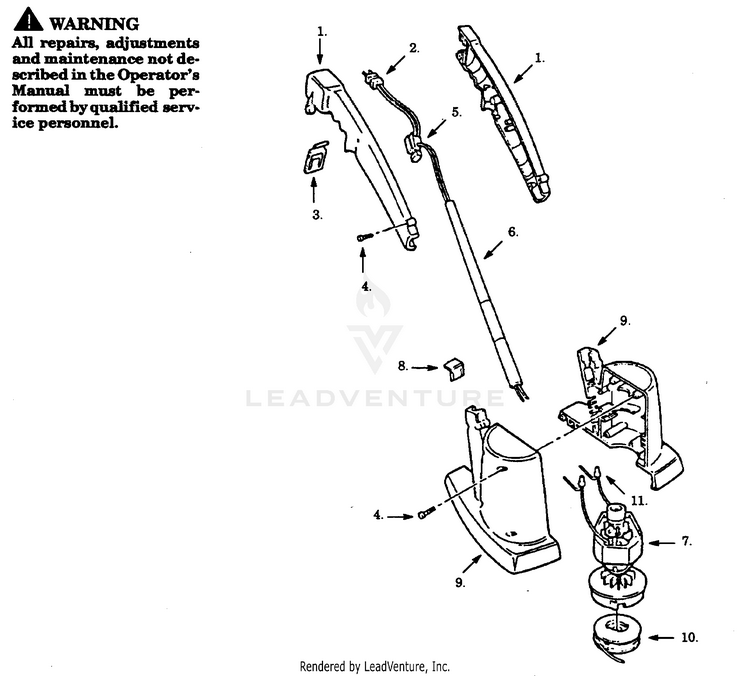

TRIMMER ASSEMBLY

...
...
1
Handle Set PLN-534192415
...
2
Harness Ass'y. PLN-534802500
...
3
Cord Retainer PLN-534781115
...
4
Screw PLN-534184700
...
5
Switch PLN-534193003
...
6
Tube Assy. PLN-534801600
...
7
Motor & Head Ass'y. PLN-534763001
...
8
Line Cutter PLN-534833500
...
9
Housing Set PLN-534291022
...
10
Spool & Line PLN-952710513
...
11
Terminal Cap PLN-534561000
