Poulan Paramount TT120C-00 Electric Trimmer

Model: TT120C-00 Electric Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

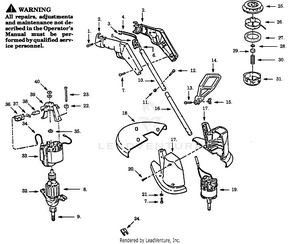

TRIMMER ASSEMBLY

...
...
1
Screw PLN-534826802
...
2
Handle Set PLN-534826522
...
3
Wire Terminal Ass'y. PLN-534825700
...
4
Wire Terminal Ass'y. PLN-534827900
...
5
Trigger Switch PLN-534193003
...
6
Harness Ass'y. PLN-534762006
...
7
Screw PLN-534826801
...
8
Armature PLN-534367600
...
9
Shaft Adaptor PLN-534401700
...
10
Upper Tube PLN-534828100
...
11
Stop Nut PLN-534828300
...
12
Screw PLN-534829600
...
13
Bolt PLN-534828400
...
14
Assist Handle PLN-534159205
...
15
Wing Nut PLN-534828500
...
16
Lower Tube PLN-534828200
...
17
Housing Set PLN-534826602
...
18
Guard & Blade Ass'y. PLN-534368003
...
19
Motor Ass'y. PLN-534450013
...
20
Screw PLN-534826800
...
21
Washer PLN-534828700
...
22
Lockwasher PLN-534520020
...
23
Screw PLN-534500261
...
24
Wrench PLN-534166800
...
25
RearPlate/Baffle Ass'y PLN-534832900
...
26
Spool & Line PLN-952710512
...
27
Foam Pad PLN-534167700
...
28
O-Ring PLN-534316200
...
29
Adapter Nut PLN-534166700
...
30
Spring PLN-534819200
...
31
Hub Ass'y. PLN-534167935
...
32
Armature Endbell PLN-534872701
...
33
Field Ass'y. PLN-534367803
...
34
Lead Wire Ass'y. PLN-534810031
...
35
Washer PLN-534494616
...
36
Brush Holder Ass'y. PLN-534260007
...
37
Brush Spring PLN-534570009
...
38
Brush PLN-534200018
...
39
Endbell Ass'y. (Brush) PLN-534872601
...
40
Retaining Ring PLN-534246701
...
...
...
