Poulan Paramount SK160-01 Electric Trimmer

Model: SK160-01 Electric Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

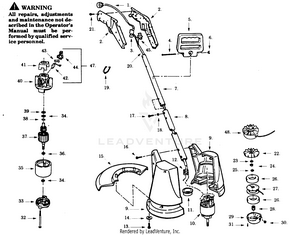

TRIMMER/BRUSHCUTTER ASSEMBLY

...
...
1
Power Cord PLN-534234500
...
2
R.H./L.H. Handle PLN-534356704
...
3
Trigger Switch PLN-534193001
...
4
Bolt PLN-534218100
...
5
Side Handle PLN-534282605
...
6
Wing Nut PLN-534437000
...
7
Upper Tube PLN-534222502
...
8
Lower Tube PLN-534223200
...
9
R.H./L.H. Housing PLN-534271614
...
10
Motor PLN-534225018
...
11
Air Baffle PLN-534487214
...
12
P.C. Bridge Kit PLN-534327002
...
13
Screw PLN-534193800
...
14
Washer PLN-534653000
...
15
Line Cutter Guard PLN-534379655
...
16
Screw PLN-534222400
...
17
Screw PLN-534970001
...
18
Lockwasher PLN-534713000
...
19
Hanger PLN-534270100
...
20
Harness Ass'y. PLN-534316002
...
21
Screw PLN-534193700
...
22
Rear Plate PLN-534487105
...
23
Washer PLN-534228803
...
24
Retaining Ring PLN-534246702
...
25
Wire Retaining Ring PLN-534487400
...
26
Foam Pad PLN-534158602
...
27
Spool & Line PLN-534486815
...
28
Spring PLN-534157401
...
29
Hub Ass'y. PLN-534486465
...
30
Eyelet PLN-534157600
...
31
Cotter Pin PLN-534270300
...
32
Screw PLN-534228700
...
33
Endbell Ass'y. (Drive) PLN-534207101
...
34
Washer PLN-534228800
...
35
Field Ass'y. PLN-534227001
...
36
Retaining Ring PLN-534747002
...
37
Armature Ass'y. PLN-534225117
...
38
Retaining Ring PLN-534246700
...
39
Washer PLN-534238903
...
40
Endbell Ass'y. (Brush) PLN-534227501
...
41
Insulator PLN-534226000
...
42
Brush PLN-534227800
...
43
Brush Spring PLN-534228000
...
44
Brush Holder PLN-534227700
...
45
Power Switch PLN-534332500
...
46
Operator Manual Not Shown. PLN-534883531
...
47
Brush Kit (Incl. 42,43,44) PLN-534450400
...
48
Cutting Head Ass'y. PLN-534722625
...
...
...
