Poulan Paramount SK140-00 Electric Trimmer

Model: SK140-00 Electric Trimmer

Back To Assemblies

Save Part Not Listed?
product name

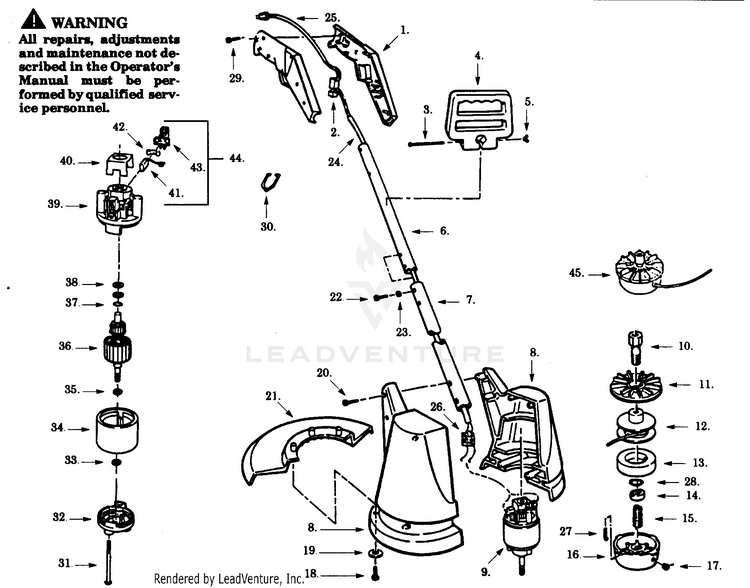

TRIMMER/BRUSHCUTTER ASSEMBLY

...
...
1
R.H./L.H. Handle PLN-534356714
...
2
Trigger Switch PLN-534193001
...
3
Bolt PLN-534218100
...
4
Side Handle PLN-534282705
...
5
Wing Nut PLN-534437000
...
6
Upper Handle Tube PLN-534222502
...
7
Lower Handle Tube PLN-534223200
...
8
R.H./L.H. Housing PLN-534271624
...
9
Motor PLN-534225003
...
10
Drive Adapter PLN-534223325
...
11
Rear Plate PLN-534157305
...
12
Spool & Line PLN-534486805
...
13
Foam Pad PLN-534158600
...
14
Drive Adapter Nut PLN-534156205
...
15
Spring PLN-534157401
...
16
Hub PLN-534159805
...
17
Eyelet PLN-534157600
...
18
Screw PLN-534193800
...
19
Washer PLN-534653000
...
20
Screw PLN-534222400
...
21
Line Cutter Guard PLN-534379645
...
22
Screw PLN-534970001
...
23
Washer PLN-534713000
...
24
Harness PLN-534162314
...
25
Power Cord PLN-534234500
...
26
P.C. Bridge Kit PLN-534404400
...
27
Cotter Pin PLN-534270300
...
28
O-Ring PLN-534316201
...
29
Screw PLN-534193700
...
30
Hanger PLN-534270100
...
31
Screw PLN-534228703
...
32
Endbell Output PLN-534207101
...
33
Washer PLN-534238903
...
34
Field Ass'y. PLN-534227004
...
35
Retainer Ring PLN-534246700
...
36
Armature PLN-534225103
...
37
Retainer Ring PLN-534747002
...
38
Washer PLN-534228800
...
39
Endbell (Brush) PLN-534227501
...
40
Insulator PLN-534226000
...
41
Brush PLN-534227800
...
42
Spring PLN-534228000
...
43
Brush Holder PLN-534227700
...
44
Brush Kit (Incl. 41,42,43) PLN-534450400
...
45
Cutting Head Ass'y. PLN-534157005
...
46
Operator Manual Not Shown. PLN-534883520
