Poulan Paramount PT92C-00 Electric Trimmer

Model: PT92C-00 Electric Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

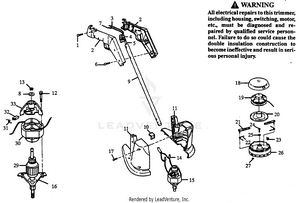

TRIMMER ASSEMBLY

...
...
1
Screw PLN-534826802
...
2
Handle Set PLN-534826502
...
3
Plug PLN-534825700
...
4
Trigger Switch PLN-534193003
...
5
Harness PLN-534827500
...
6
Screw PLN-534826801
...
7
Plug PLN-534827900
...
8
Washer,Shim PLN-534608056
...
9
Tube PLN-534826700
...
10
Line Cutter PLN-534958001
...
11
Housing Set PLN-534826602
...
12
Screw PLN-534619037
...
13
Retaining Ring PLN-534605011
...
14
Terminal Cap PLN-534561000
...
15
Motor/Adapter Ass'y. PLN-534968404
...
16
End Bell PLN-534872701
...
17
Screw PLN-534826800
...
18
Cover PLN-534919200
...
19
Spool w/Line PLN-952710536
...
20
Cam PLN-534100640
...
21
Arm PLN-534918800
...
22
Spring PLN-534908501
...
23
Line Shield PLN-534918500
...
24
Screw PLN-534978600
...
25
Washer PLN-534908700
...
26
Housing Ass'y. (Inc. 21-23,26,27) PLN-530400739
...
27
Push Nut PLN-534400700
...
29
Armature/Endbell Ass'y. PLN-534517400
...
30
Field Ass'y. PLN-534521010
...
31
Brush Spring PLN-534601015
...
32
Carbon Brush PLN-534600042
...
33
Bracket/Plate Ass'y. PLN-534522012
...
...
...
