Poulan Paramount PT90-02 Electric Trimmer

Model: PT90-02 Electric Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

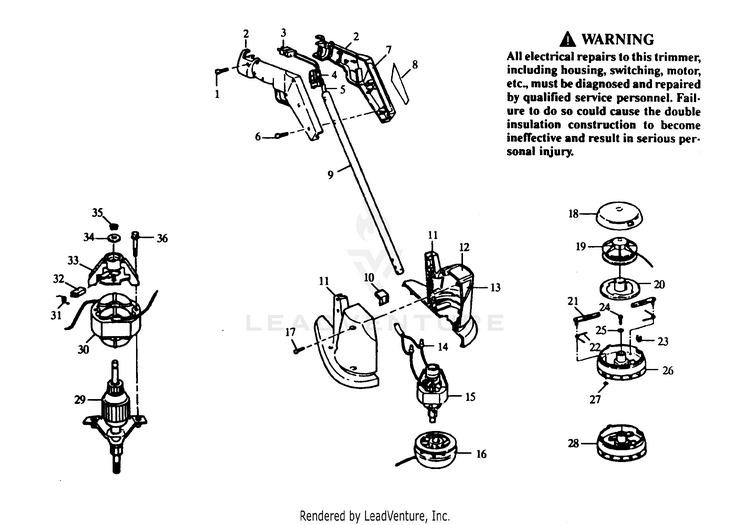

TRIMMER ASSEMBLY

...
...
1
Screw PLN-534826802
...
2
Handle Set PLN-534826522
...
3
Plug PLN-534936001
...
4
Trigger Switch PLN-534193003
...
5
Harness PLN-534762007
...
6
Screw PLN-534826801
...
7
Handle Label (Not a serviceable part) PLN-534826900
...
8
Warning Label (Not a serviceable part) PLN-534969700
...
9
Tube PLN-534826701
...
10
Line Cutter PLN-534958001
...
11
Housing Set PLN-534826602
...
12
Housing Top Label (Not a serviceable part) PLN-534969600
...
13
Housing Front Label (Not a serviceable part) PLN-534969800
...
14
Terminal Cap PLN-534561000
...
15
Motor/Adapter Ass'y. PLN-534968404
...
16
Cutting Head Ass'y. PLN-534918301
...
17
Screw PLN-534826800
...
18
Cover PLN-534919200
...
19
Spool w/Line PLN-534919002
...
20
Cam PLN-534100640
...
21
Arm PLN-534918800
...
22
Spring PLN-534908501
...
23
Line Shield PLN-534918500
...
24
Screw PLN-534978600
...
25
Washer PLN-534908700
...
26
Housing/Baffle Ass'y. PLN-534972601
...
27
Push Nut PLN-534400701
...
28
Housing Ass'y. (Incl. 21-23,26,27) PLN-534972601
...
29
Armature/Endbell Ass'y. PLN-534981701
...
30
Field Ass'y. PLN-534521010
...
31
Brush Spring PLN-534601015
...
32
Carbon Brush PLN-534600042
...
33
Bracket/Plate Ass'y. PLN-534522012
...
34
Washer, Shim PLN-534608056
...
35
Retaining Ring PLN-534605011
...
36
Screw PLN-534619037
...
xx
Operator Manual Not Shown. PLN-534886940
...
...
...
