Poulan Paramount PT162-01 Electric Trimmer

Model: PT162-01 Electric Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

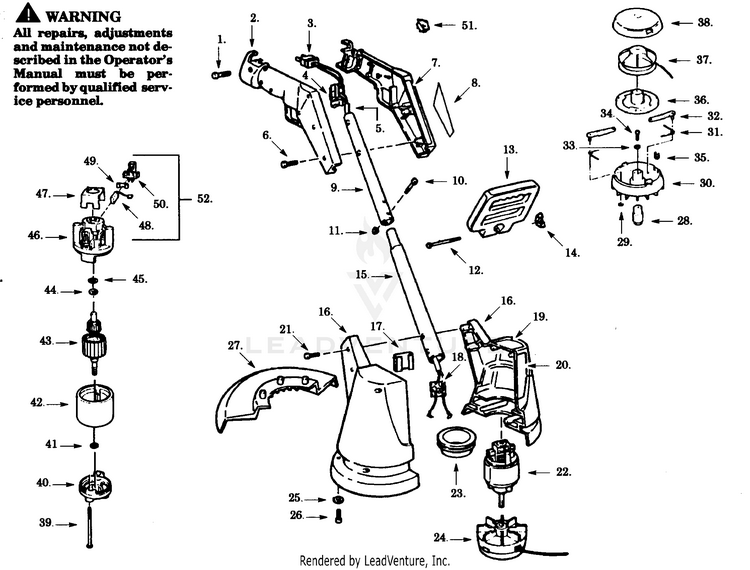

TRIMMER ASSEMBLY

...
...
1
Screw PLN-534826802
...
2
Handle Set PLN-534826532
...
3
Plug PLN-534936001
...
4
Trigger Switch PLN-534193001
...
5
Harness Ass'y. PLN-534830300
...
6
Screw PLN-534826801
...
7
Handle Label (Not a serviceable part) PLN-534829900
...
8
Warning Label PLN-534924000
...
9
Upper Tube PLN-534828100
...
10
Screw PLN-534829600
...
11
Stop Nut PLN-534828300
...
12
Bolt PLN-534828401
...
13
Assist Handle PLN-534282705
...
14
Wing Nut PLN-534828500
...
15
Lower Tube PLN-534828200
...
16
Housing Set PLN-534271682
...
17
Insulator Shield PLN-534337100
...
18
P.C. Board Ass'y. PLN-534787500
...
19
Housing Label (Not a serviceable part) PLN-534924300
...
20
Hsg. Front Label (Not a serviceable part) PLN-534924100
...
21
Screw PLN-534790300
...
22
Motor Ass'y. PLN-534225020
...
23
Air Baffle PLN-534487245
...
24
Cutting HeadAss'y. PLN-534907305
...
25
Washer PLN-534828700
...
26
Screw PLN-534826800
...
27
Guard & Blade Ass'y. PLN-534379655
...
28
Drive Adapter PLN-534900301
...
29
Push Nut PLN-534400700
...
30
Housing Head PLN-534014477
...
31
Spring PLN-534908500
...
32
Arm PLN-534899200
...
33
Washer PLN-534908700
...
34
Screw PLN-534136401
...
35
Line Shield PLN-534900200
...
36
Cam PLN-534014475
...
37
Spool & Line PLN-952710507
...
38
Cover PLN-534036644
...
39
Screw PLN-534228700
...
40
Endbell Ass'y. (Drive) PLN-534207101
...
41
Washer PLN-534228800
...
42
Field Ass'y. PLN-534227001
...
43
Armature Ass'y. PLN-534225120
...
44
Washer PLN-534228802
...
45
Washer PLN-534238903
...
46
Endbell Ass'y. (Brush) PLN-534227501
...
47
Insulator PLN-534226000
...
48
Carbon Brush PLN-534227800
...
49
Brush Spring PLN-534228000
...
50
Brush Holder PLN-534227700
...
51
Speed Switch PLN-534332500
...
52
Brush Kit (Incl. 48,49,50) PLN-534450400
...
xx
Operator Manual PLN-534886710
...
...
...
