Poulan Paramount PT1400-00 Electric Trimmer

Model: PT1400-00 Electric Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

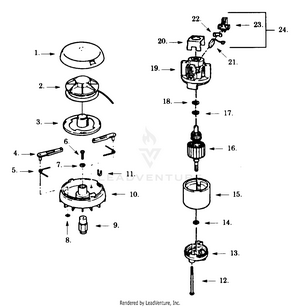

CUTTING HEAD ASSEMBLY

...
...
1
Cover PLN-534899400
...
2
Spool & Line PLN-534907901
...
3
Cam PLN-534839100
...
4
Arm PLN-534899200
...
5
Spring PLN-534908500
...
6
Screw PLN-534136401
...
7
Washer PLN-534908700
...
8
Push Nut PLN-534400700
...
9
Drive Adapter PLN-534900301
...
10
Housing Head PLN-534980301
...
11
Line Shield PLN-534900200
...
12
Screw PLN-534228703
...
13
Endbell Ass'y. (Drive) PLN-534207101
...
14
Washer PLN-534228800
...
15
Field Ass'y. PLN-534227004
...
16
Armature Ass'y. PLN-534767701
...
17
Washer PLN-534228802
...
18
Washer PLN-534238903
...
19
Endbell Ass'y. (Brush) PLN-534227501
...
20
Insulator PLN-534226000
...
21
Brush PLN-534227800
...
22
Brush Spring PLN-534228000
...
23
Brush Holder PLN-534227700
...
24
Brush Kit (Incl. 21,22,23) PLN-534450400

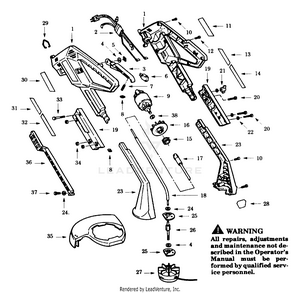

TRIMMER ASSEMBLY

...
...
1
Motor Hsg. Set PLN-534787902
...
2
Harness Ass'y. PLN-534789301
...
3
Trigger PLN-534788305
...
4
Washer PLN-534228802
...
5
Push Nut PLN-534790800
...
6
Switch PLN-534789000
...
7
Trigger Spring PLN-534790700
...
8
Square Nut PLN-534808100
...
9
Motor Ass'y. PLN-534768301
...
10
Screw PLN-534790300
...
11
Warning Label (Not a serviceable part) PLN-534798700
...
12
Screw PLN-534790301
...
13
Model No. Label (L) (Not a serviceable part) PLN-534909600
...
14
Logo Label (L) PLN-534909800
...
15
Fan Clamp PLN-534560103
...
16
Fan PLN-534526802
...
17
Flex Shaft Ass'y. PLN-534788505
...
18
Sleeve Tubing PLN-534788902
...
19
Housing Clamp PLN-534788102
...
20
Screw PLN-534829601
...
21
Knob PLN-534903000
...
22
Washer PLN-534828701
...
23
Spindle Housing PLN-534788005
...
24
Washer PLN-534636002
...
25
Bearing Holder Disk PLN-534790600
...
26
Shaft Adapter PLN-534789900
...
27
Cutting Head Ass'y. PLN-534907306
...
28
Start-N-Feed Label (Not a serviceable part) PLN-534933400
...
29
Hanger PLN-534270100
...
30
Nameplate Label (Not a serviceable part) PLN-534909100
...
31
Model No. Label (R) (Not a serviceable part) PLN-534909700
...
32
Logo Label (R) PLN-534909300
...
33
Screw PLN-534903100
...
34
Nut PLN-534790500
...
35
Guard Ass'y. PLN-534790400
...
36
Assist Handle PLN-534788405
...
37
Screw PLN-534808200
...
38
Washer PLN-534757900
...
39
Operator Manual Not Shown. PLN-534886620
...
...
...
