Poulan Paramount PT140-03 Electric Trimmer

Model: PT140-03 Electric Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

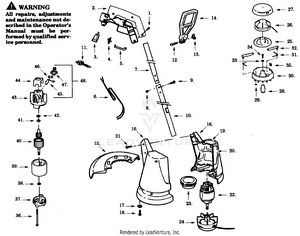

TRIMMER ASSEMBLY

...
...
1
Screw PLN-530352036
...
2
Handle Set PLN-530351822
...
3
Cord Retainer PLN-530347653
...
4
On/Off Switch PLN-530347897
...
5
Trigger Switch PLN-530351826
...
6
Harness Ass'y. PLN-534014593
...
7
Upper Tube PLN-534500111
...
8
Nut PLN-530403094
...
9
Screw PLN-530346034
...
10
Lower Tube w/ Decal PLN-534014600
...
11
Plug Ass'y. PLN-534014597
...
12
Screw PLN-530625509
...
13
Wing Nut PLN-530400013
...
14
Assist Handle PLN-534036733
...
15
Guard & Blade Assy. PLN-534379645
...
16
Housing Set PLN-534036754
...
17
Washer PLN-530015992
...
18
Screw PLN-534193700
...
19
Housing Label (Not a serviceable part) PLN-534036748
...
20
Hsg. Front Label (Not a serviceable part) PLN-534036755
...
21
Screw PLN-534222400
...
22
Motor Ass'y. PLN-534768300
...
23
Air Baffle PLN-534487245
...
24
Cutting Head Ass'y. PLN-534907306
...
25
Cam PLN-534014475
...
26
Spool & Line PLN-952710511
...
27
Cover PLN-534036644
...
28
Drive Adapter PLN-534900301
...
29
Push Nut PLN-534400700
...
30
Housing Head PLN-534014477
...
31
Spring PLN-534908500
...
32
Arm PLN-534899200
...
33
Washer PLN-534908700
...
34
Screw PLN-534136401
...
35
Line Shield PLN-534900200
...
36
Screw PLN-534228703
...
37
Endbell Ass'y. Drive PLN-534207101
...
38
Washer PLN-534228800
...
39
Field Ass'y. PLN-534227004
...
40
Armature Ass'y. PLN-534767700
...
41
Washer PLN-534228802
...
42
Washer PLN-534238903
...
43
Endbell Ass'y. Brush PLN-534227501
...
44
Insulator PLN-534226000
...
45
Carbon Brush PLN-534227800
...
46
Brush Spring PLN-534228000
...
47
Brush Holder PLN-534227700
...
48
Brush Kit (Incl. 45,46,47) PLN-534450400
...
xx
Operator Manual Not Shown. PLN-534068491
...
xx
Carton Contents Bag Not Shown. PLN-534400603
...
xx
Carton (Not a serviceable part) Not Shown. PLN-534061541
...
...
...
