Poulan Paramount PT140-01 Electric Trimmer

Model: PT140-01 Electric Trimmer

Back To Assemblies

Save Part Not Listed?
product name

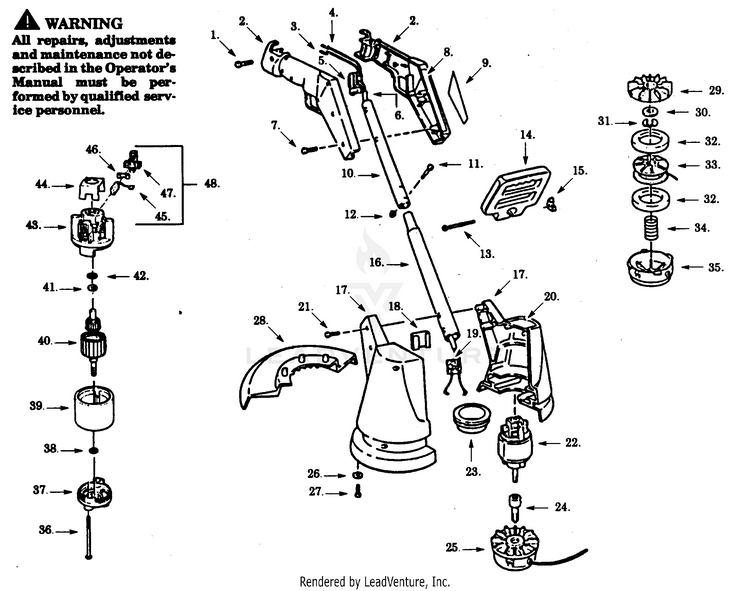

TRIMMER/BRUSHCUTTER ASSEMBLY

...
...
1
Screw PLN-534826802
...
2
Handle Set PLN-534826502
...
3
Wire Blade Ass'y. PLN-534827900
...
4
Wire Blade Ass'y. PLN-534825700
...
5
Trigger Switch PLN-534193001
...
6
Harness PLN-534829000
...
7
Screw PLN-534826801
...
8
Handle Label PLN-534795500
...
9
Warning Label PLN-534829500
...
10
Upper Tube PLN-534828100
...
11
Screw PLN-534829600
...
12
Stop Nut PLN-534828300
...
13
Bolt PLN-534828401
...
14
Assist Handle PLN-534282705
...
15
Wing Nut PLN-534828500
...
16
Lower Tube PLN-534828200
...
17
Housing Set PLN-534271692
...
18
Insulator Shield PLN-534337100
...
19
P.C. Board Ass'y. PLN-534336600
...
20
Housing Label PLN-534795600
...
21
Screw PLN-534790300
...
22
Motor Ass'y. PLN-534768300
...
23
Air Baffle PLN-534487245
...
24
Shaft Adapter PLN-534589900
...
25
Cutting Head Ass'y. PLN-534631845
...
26
Washer PLN-534828700
...
27
Screw PLN-534826800
...
28
Guard & Blade Ass'y. PLN-534379645
...
29
Rear Plate PLN-534487115
...
30
Washer PLN-534220146
...
31
Retaining Ring PLN-534246703
...
32
Foam Pad PLN-534158602
...
33
Spool & Line PLN-534486805
...
34
Spring PLN-534157401
...
35
Hub Ass'y. PLN-534486465
...
36
Screw PLN-534228703
...
37
Endbell Ass'y. (Drive) PLN-534207101
...
38
Washer PLN-534228800
...
39
Field Ass'y. PLN-534227004
...
40
Armature Ass'y. PLN-534767700
...
41
Washer PLN-534228802
...
42
Washer PLN-534238903
...
43
Endbell Ass'y. (Brush) PLN-534227501
...
44
Insulator PLN-534226000
...
45
Carbon Brush PLN-534227800
...
46
Brush Spring PLN-534228000
...
47
Brush Holder PLN-534227700
...
48
Brush Kit (Incl. 45-47) PLN-534450400
...
49
Operator Manual Not Shown. PLN-534886130
