Poulan Paramount PT120-02 Electric Trimmer

Model: PT120-02 Electric Trimmer

Save Part Not Listed?
product name

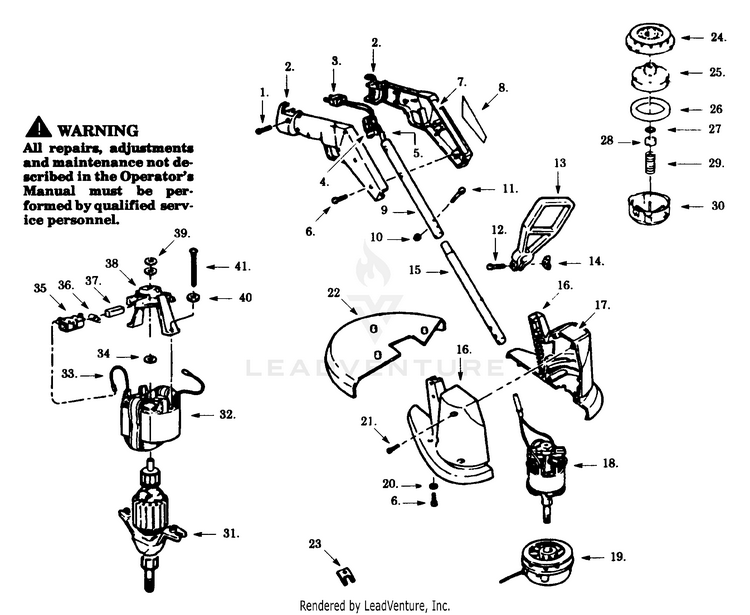

TRIMMER/BRUSHCUTTER ASSEMBLY

...
...
1
Screw PLN-534826802
...
2
Handle Set PLN-534826522
...
3
Power Plug PLN-534936001
...
4
Trigger Switch PLN-534193001
...
5
Harness Ass'y. PLN-534866001
...
6
Screw PLN-534826801
...
7
Handle Label PLN-534795300
...
8
Warning Label (Not a serviceable part) PLN-534938500
...
9
Upper Tube PLN-534828100
...
10
Stop Nut PLN-534828300
...
11
Screw PLN-534829600
...
12
Bolt PLN-534828400
...
13
Assist Handle PLN-534156405
...
14
Wing Nut PLN-534828500
...
15
Lower Tube PLN-534828200
...
16
Housing Set PLN-534826602
...
17
Housing Top Label PLN-534795400
...
18
Motor Ass'y. PLN-534450013
...
19
Cutting Head Ass'y. PLN-534167012
...
20
Washer PLN-534828700
...
21
Screw PLN-534826800
...
22
Guard & Blade Ass'y. PLN-534368003
...
23
Wrench PLN-534166800
...
24
Rear Plate/Baffle Ass'y. PLN-534832900
...
25
Spool & Line PLN-534167815
...
26
Foam Pad PLN-534167700
...
27
O-Ring PLN-534316200
...
28
Adapter Nut PLN-534166700
...
29
Spring PLN-534819200
...
30
Hub Ass'y. PLN-534167935
...
31
Armature Endbell PLN-534874303
...
32
Field Ass'y. PLN-534367803
...
33
Lead Wire Ass'y. PLN-534871701
...
34
Washer PLN-534494616
...
35
Brush Holder Ass'y. PLN-534260007
...
36
Brush Spring PLN-534570009
...
37
Brush PLN-534200018
...
38
Endbell Ass'y. (Brush) PLN-534872601
...
39
Retaining Ring PLN-534246701
...
40
Lockwasher PLN-534520020
...
41
Screw PLN-534500261
