Poulan Paramount PLT2245 Gas Trimmer

Model: PLT2245 Gas Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

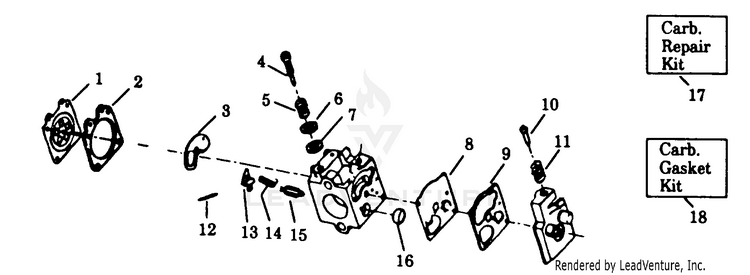

CARBURETOR WA-207 BREAKDOWN

...
...
1
DIAPHRAGM PLN-503896701
...
2
Metering Diaphragm Gasket PLN-530035151
...
3
Circuit Plate Gasket PLN-530035211
...
4
Mixture Needle PLN-530035212
...
5
Needle Spring-Low Speed PLN-530035293
...
6
Mixture Needle Washer PLN-530035217
...
7
"O" Ring Mixture PLN-530035218
...
8
PUMP DIAPHRAGM PLN-504130807
...
9
GASKET PLN-504130906
...
10
Idle Speed Screw PLN-530035203
...
11
Spring PLN-501667801
...
12
Pin Included in Carburetor Kwik Repair Kit. PLN-505520125
...
13
Metering Lever Included in Carburetor Kwik Repair Kit. PLN-505520127
...
14
Metering Lever Spring Included in Carburetor Kwik Repair Kit. PLN-530035188
...
15
Needle Included in Carburetor Kwik Repair Kit. PLN-503117001
...
16
Fuel Inlet Screen Included in Carburetor Kwik Repair Kit. PLN-530035178
...
17
Carb. Kwik Repair Kit PLN-530035264
...
18
Gasket Diaphragm Kit PLN-530069844

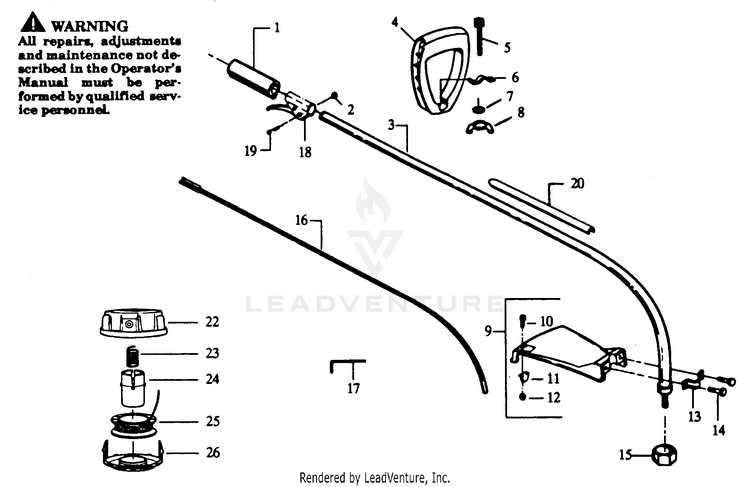

CUTTING HEAD & DRIVE SHAFT

...
...
1
Grip PLN-530029445
...
2
Nut PLN-530015768
...
3
Drive Shaft Housing PLN-530094874
...
4
Handle Ass'y. PLN-530014222
...
5
Bolt PLN-530015820
...
6
Clamp PLN-530094742
...
7
Washer PLN-530092062
...
8
Nut PLN-530091373
...
9
Shield Kit Ass'y. (Inc.10,11,12,14) PLN-530069299
...
10
Screw PLN-530015337
...
11
Line Limiter PLN-530094570
...
12
Nut PLN-530403094
...
13
Shield Bracket PLN-530029373
...
14
Screw PLN-530016107
...
15
Dust Cup PLN-530094543
...
16
Drive Shaft PLN-530094835
...
17
Hex Wrench (5/32) PLN-530031159
...
18
Throttle Housing Ass'y. PLN-530010959
...
19
Screw PLN-530015774
...
20
Shaft Warning Decal PLN-530029164
...
22
Hub Ass'y. PLN-530094878
...
23
Spring PLN-530094830
...
24
Release Button PLN-530094827
...
25
Spool w/Line PLN-952710544
...
26
Cover PLN-530094828
...
xx
Operator Manual PLN-530068613

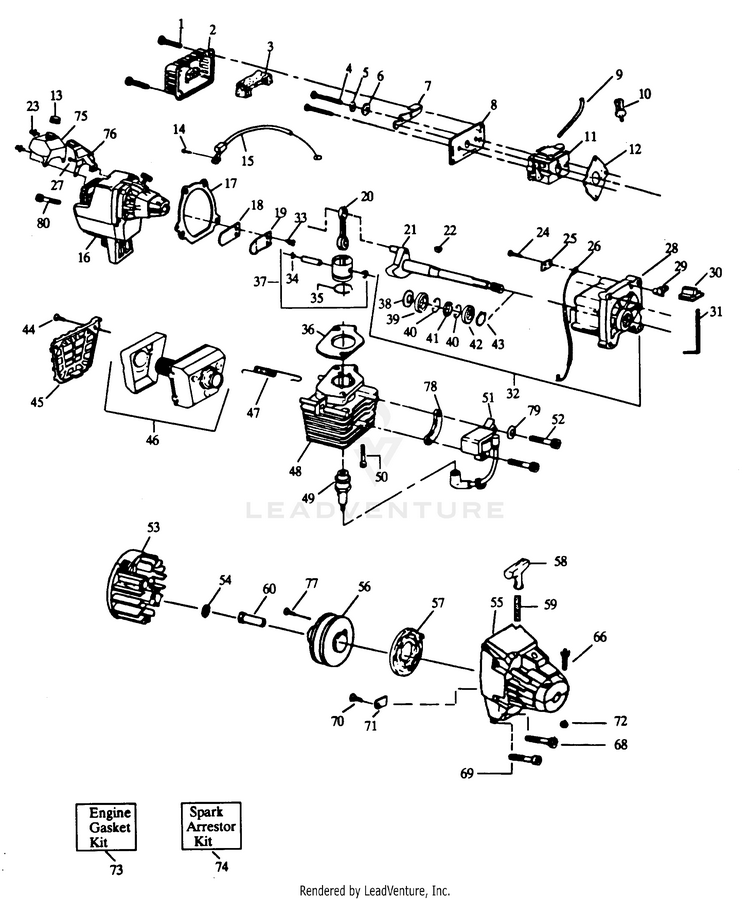

POWER UNIT

...
...
1
Screw PLN-530015773
...
2
Air Filter Cover PLN-530027529
...
3
Air Filter PLN-530027530
...
4
Screw PLN-530015849
...
5
Spacer-Choke PLN-530015852
...
6
Wave Washer PLN-530015254
...
7
Choke Shutter PLN-530027526
...
8
Air Filter Plate PLN-530027527
...
9
Fuel Line PLN-530069247
...
10
Assy-Fuel Pickup PLN-530095646
...
11
Carburetor PLN-530035262
...
12
Carburetor Gasket Included in Engine Gasket Kit. Engine Gasket Contents PLN-530019156
...
13
Assy-Fuel Cap PLN-530014347
...
14
Screw PLN-530015775
...
15
Throttle Cable Ass'y. PLN-530027955
...
16
Shroud PLN-530036819
...
17
Crankcase/Shroud Gasket Included in Engine Gasket Kit. Engine Gasket Contents PLN-530019154
...
18
Reed PLN-530027593
...
19
Reed Stop PLN-530027594
...
20
Connecting Rod Ass'y. (Incl. Bearings) PLN-530014005
...
21
Crankshaft Ass'y. PLN-530010945
...
22
Flywheel Key PLN-530015126
...
23
Screw PLN-530015843
...
24
Screw PLN-530015780
...
25
Switch Insulator PLN-530027546
...
26
Lead Wire PLN-530027547
...
27
SCREW PLN-530016386
...
28
Crankcase Ass'y. (Inc.39-42) PLN-530014016
...
29
Switch Ramp PLN-530027545
...
30
Switch Button PLN-530038309
...
31
Switch Spring PLN-530027959
...
32
Crankcase & Crankshaft Ass'y (Inc.21,28,38, 43) PLN-530014004
...
33
Screw PLN-530015241
...
34
Piston Pin Retainer PLN-530015162
...
35
Piston Ring PLN-530026413
...
36
GASKET CYL W/ ADHESIVE Included in Engine Gasket Kit. Engine Gasket Contents PLN-530019267
...
37
Piston Kit (Inc.34,35 & pin) PLN-530069274
...
38
Spacer PLN-530015788
...
39
Inner Bearing PLN-530032103
...
40
Retaining Ring PLN-530015787
...
41
Crankshaft Seal PLN-530019158
...
42
Outer Bearing PLN-530032102
...
43
Crankshaft Retaining Ring PLN-530015789
...
44
Screw PLN-530015717
...
45
Muffler Guard PLN-530027781
...
46
Muffler Kit PLN-530069310
...
47
Muffler Spring PLN-530036409
...
48
CYLINDER PLN-530012349
...
49
Spark Plug PLN-530030057
...
50
Screw PLN-530015239
...
51
Ignition Module Kit PLN-530039134
...
52
Screw PLN-530015776
...
53
Flywheel Ass'y PLN-530047198
...
54
Washer PLN-530015828
...
55
Fan Housing PLN-530014016
...
56
Kit-Starter Pulley PLN-530071387
...
57
STARTER SPRING PLN-545008010
...
58
Starter Handle PLN-530027569
...
59
Rope Kit PLN-530069232
...
60
Drive Coupling PLN-530027953
...
66
Screw PLN-530015767
...
68
Screw PLN-530015770
...
69
Screw PLN-530015769
...
70
Screw PLN-530015496
...
71
Retainer PLN-530027523
...
72
Locknut PLN-530015768
...
73
Engine Gasket Kit PLN-530069276
...
74
Spark Arrestor Kit PLN-952701612
...
75
Fuel Tank Ass'y. PLN-530014176
...
76
Fuel Tank Mtg. Bracket PLN-530029370
...
77
SCREW (Incl. in Starter Pulley Kit) PLN-530016080
...
78
Spacer PLN-530027525
...
79
Washer PLN-530015811
...
80
Screw PLN-530015771
...
xx
Carton Contents Bag Not Shown. PLN-530014215
...
xx
Starting Instruction Decal Not Shown. PLN-530037148
...
xx
Shroud Decal (R&L) (Not a serviceable part) Not Shown. PLN-530036825
...
...
...
