Poulan Paramount PB95 Electric Blower

Model: PB95 Electric Blower

Save
 Part Not Listed?Part Not Listed?
product name

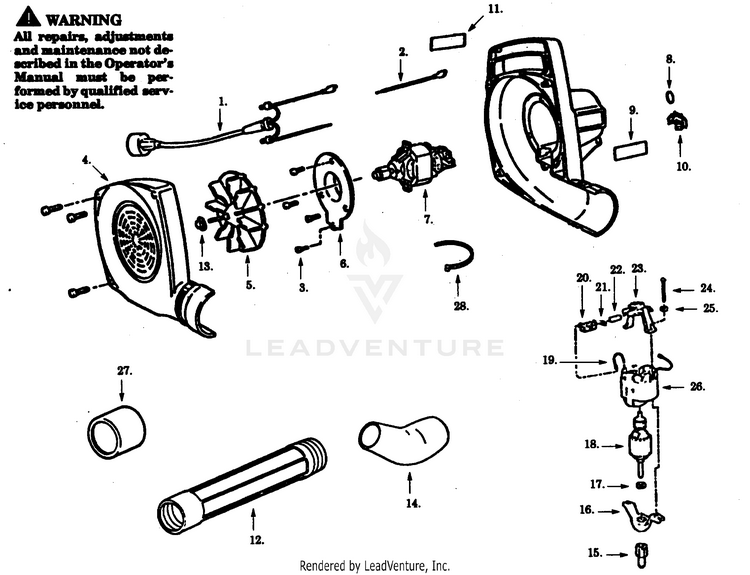

BLOWER ASSEMBLY

...
...
1
Harness Ass'y. PLN-534441000
...
2
Leadwire Ass'y. PLN-534871701
...
3
Screw PLN-534790300
...
4
Housing Set PLN-534799202
...
5
Impeller PLN-534798205
...
6
Mounting Plate PLN-534801105
...
7
Motor/Adapter Ass'y. PLN-534800400
...
8
U.L. Label (Not a serviceable part) PLN-534458100
...
9
Motor Hsg. Label PLN-534102240
...
10
Switch Ass'y. PLN-534332506
...
11
Warning Label PLN-534036155
...
12
Outlet Tube PLN-534352705
...
13
Push Nut PLN-534121000
...
14
Curved Nozzle PLN-534373405
...
15
Impeller Adapter PLN-534798400
...
16
Endbell Ass'y. (Drive) PLN-534872701
...
17
Thrust Washer PLN-534520022
...
18
Armature Ass'y. PLN-534771501
...
19
Wire/Terminal Ass'y. PLN-534440800
...
20
Brush Holder PLN-534260007
...
21
Brush Spring PLN-534570009
...
22
Brush PLN-534200018
...
23
Endbell Ass'y. (Brush) PLN-534872601
...
24
Screw PLN-534500262
...
25
Lockwasher PLN-534520020
...
26
Field Ass'y. PLN-534440100
...
27
Sleeve PLN-534408405
...
28
Tie Strap PLN-534134704
...
29
Operator Manual Not Shown. PLN-534887270
...
30
Carton Not Shown. PLN-534102250
...
...
...
