Poulan Paramount PB90C-00 Electric Blower

Model: PB90C-00 Electric Blower

Save
 Part Not Listed?Part Not Listed?
product name

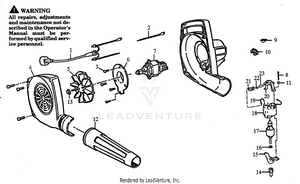

BLOWER ASSEMBLY

...
...
1
Harness Ass'y. PLN-534441001
...
2
Leadwire Ass'y. PLN-534440800
...
3
Screw PLN-534222400
...
4
Housing (Set) PLN-534799205
...
5
Impeller PLN-534798205
...
6
Mounting Plate PLN-534801105
...
7
Motor/Adapter Ass'y. PLN-534800400
...
8
Screw PLN-534500262
...
9
Switch Cover PLN-534325100
...
10
Switch Ass'y. PLN-534332501
...
11
Lockwasher PLN-534520020
...
12
Nozzle Tube PLN-534793705
...
13
Push Nut PLN-534121000
...
14
Impeller Adapter PLN-534798400
...
15
Endbell Ass'y. (Drive) PLN-534710671
...
16
Thrust Washer PLN-534520022
...
17
Armature Ass'y. PLN-534771501
...
18
Field Ass'y. PLN-534440100
...
19
Wire/Terminal Ass'y. PLN-534810031
...
20
Endbell Ass'y. (Brush) PLN-534710641
...
21
Brush Holder PLN-534260007
...
22
Brush Spring PLN-534570009
...
23
Brush PLN-534200018
...
...
...
