product name

Poulan Paramount PB300C-50 Electric Blower

Model: PB300C-50 Electric Blower

Save
 Part Not Listed?Part Not Listed?
product name

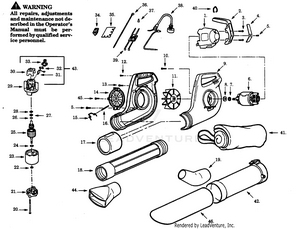

BLOWER ASSEMBLY

...
...
1
Motor Cover PLN-534319612
...
2
Handle PLN-534319705
...
3
Screw PLN-534136402
...
4
Plate Warning PLN-534404355
...
5
Screw PLN-534193700
...
6
Motor PLN-534225010
...
7
Retaining Ring PLN-534747011
...
8
Washer PLN-534136100
...
9
L.H/R.H. Housing PLN-534491732
...
10
Screw PLN-534136401
...
11
Impeller Ass'y. PLN-534398315
...
12
Screw PLN-534184700
...
13
Screw PLN-534222400
...
14
Inlet Cover PLN-534498205
...
15
Spring PLN-534475900
...
16
Hinge Pin PLN-534327201
...
17
Ferrule Sleeve PLN-534408415
...
18
Outlet Tube PLN-534352705
...
19
Curved Nozzle PLN-534373405
...
20
Screw PLN-534228700
...
21
Endbell Ass'y. (Drive) PLN-534227601
...
22
Washer PLN-534228800
...
23
Field Ass'y. PLN-534227001
...
24
Retaining Ring PLN-534747011
...
25
Armature Ass'y. PLN-534225110
...
26
Retaining Ring PLN-534246700
...
27
Washer PLN-534228802
...
28
Washer PLN-534238903
...
29
Endbell Ass'y. (Brush) PLN-534227501
...
30
Insulator PLN-534226000
...
31
Brush PLN-534227800
...
32
Brush Spring PLN-534228000
...
33
Brush Holder PLN-534227700
...
34
On-Off Switch Ass'y. PLN-534447901
...
35
Mounting Board PLN-534334800
...
36
Leadwire Ass'y. PLN-534433800
...
37
Wire Nut PLN-534561000
...
38
Power Cord Ass'y. PLN-534434004
...
39
P.C. Board Ass'y. PLN-534345400
...
40
Hanger PLN-534270100
...
41
Vacuum Bag PLN-534339900
...
42
Vacuum Tube-Upper PLN-534528005
...
43
Brush Kit (Incl. 31,32,33) PLN-534450400
...
44
Diffuser Nozzle PLN-534339405
...
45
Screw PLN-534193700
...
46
Vacuum Tube-Lower PLN-534527505
...
...
...
