product name

Poulan Paramount PB150-00 Electric Blower

Model: PB150-00 Electric Blower

Save
 Part Not Listed?Part Not Listed?
product name

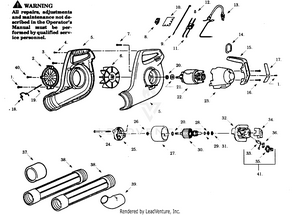

BLOWER ASSEMBLY

...
...
1
Screw PLN-534899900
...
2
Inlet Cover PLN-534498205
...
3
Screw PLN-534222400
...
4
Screw PLN-534184700
...
5
Housing Set PLN-534491722
...
6
Impeller Ass'y PLN-534398315
...
7
Screw PLN-534136401
...
8
Switch PLN-534332506
...
9
Lead Wire Ass'y PLN-534433800
...
10
Mounting Board PLN-534334800
...
11
PC Board PLN-534345400
...
12
Connector PLN-534561000
...
13
Power Cord PLN-534434001
...
14
Hanger Bracket PLN-534270100
...
15
Handle PLN-534319701
...
16
Screw PLN-534015772
...
17
Plate PLN-534346082
...
18
Spring PLN-534475900
...
19
Hinge Pin PLN-534327201
...
20
Retaining Ring PLN-534747002
...
21
Washer PLN-534757900
...
22
Motor Ass'y PLN-534992001
...
23
Motor Housing PLN-534319602
...
24
Screw PLN-534228700
...
25
End Bell Ass'y PLN-534207101
...
26
Shim Washer PLN-534228800
...
27
Field Ass'y PLN-534227001
...
28
Shim Washer PLN-534228802
...
29
Retaining Ring PLN-534246700
...
30
Armature Ass'y PLN-534992401
...
31
Washer PLN-534238903
...
32
End Bell PLN-534227501
...
33
Brush PLN-534227800
...
34
Insulator PLN-534226000
...
35
Brush Holder PLN-534227700
...
36
Spring PLN-534228000
...
37
Sleeve PLN-534408415
...
38
Outlet Tube PLN-534352705
...
39
Nozzle PLN-534373405
...
40
Screw PLN-534826801
...
41
Brush Kit (Incl. 33,35,36) PLN-534450400
...
42
Operator Manual Not Shown. PLN-534886570
...
43
Warning Decal Not Shown. PLN-534100461
...
44
Carton (Not a serviceable part) Not Shown. PLN-534061404
...
...
...
