Poulan Paramount GB150 Gas Blower

Model: GB150 Gas Blower

Back To Assemblies

Save Part Not Listed?
product name

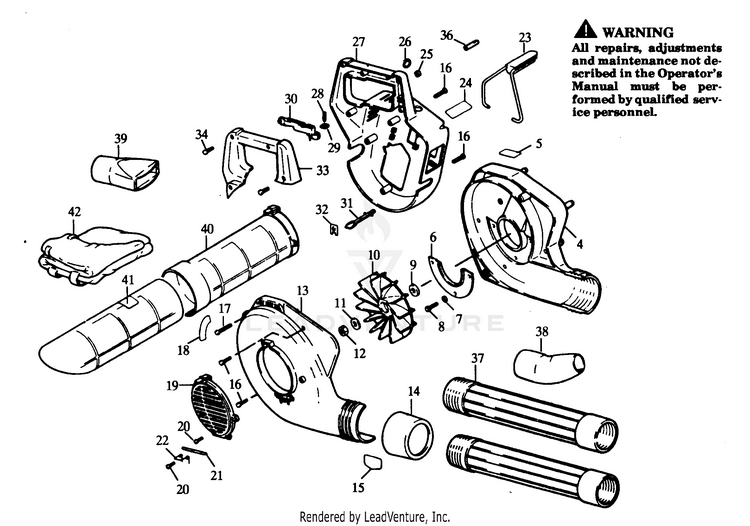

BLOWER ASSEMBLY

...
...
4
Main Support Housing PLN-534727102
...
5
Starting Instructions Decal PLN-534744500
...
6
Engine Mount Plate PLN-534727000
...
7
Lockwasher PLN-534713000
...
8
Screw PLN-534744300
...
9
Washer PLN-534136100
...
10
Impeller Ass'y. PLN-534726700
...
11
Washer PLN-534120387
...
12
Nut PLN-534754500
...
13
Inlet Cover Housing PLN-534727202
...
14
Sleeve PLN-534408405
...
15
Exhaust Label (Model GB150) PLN-534744700
...
15
Exhaust Label (Model GB350) PLN-534727300
...
16
Screw PLN-534222401
...
17
Screw PLN-534174506
...
18
Caution Label (Not a serviceable part) PLN-534755500
...
19
Inlet Cover PLN-534543305
...
20
Screw PLN-534193700
...
21
Hinge Pin PLN-534327201
...
22
Spring Return PLN-534475900
...
23
Assist Handle Ass'y. PLN-534741000
...
24
Nameplate Label PLN-534727800
...
25
Nut PLN-534371301
...
26
Split Ring PLN-534744400
...
27
Engine Cover Housing PLN-534726602
...
28
Screw PLN-534729500
...
29
Nut PLN-534728000
...
30
Throttle Trigger Ass'y. PLN-534755800
...
31
Tickler Lever PLN-534727905
...
32
Nut PLN-534741400
...
33
Handle Cover Housing PLN-534733002
...
34
Screw PLN-534184700
...
36
Eye Nut PLN-534756900
...
37
Outlet Tube PLN-534352705
...
38
Concentrator Nozzle PLN-534373405
...
39
Nozzle Diffuser (Model GB350) PLN-534339405
...
40
Vacuum Tube (Model GB350) PLN-534528705
...
41
Nameplate Label (Model GB350) (Not a serviceable part) PLN-534506400
...
42
Vacuum Bag (Model GB350) PLN-534339900
...
xx
Operator's Manual Not Shown. PLN-534885560
