Poulan Paramount GB150 Gas Blower

Model: GB150 Gas Blower

Save
 Part Not Listed?Part Not Listed?
product name

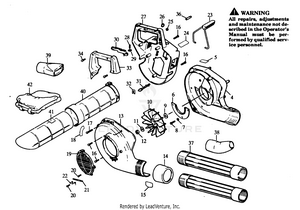

BLOWER ASSEMBLY

...
...
4
Main Support Housing PLN-534727102
...
5
Starting Instructions Decal PLN-534744500
...
6
Engine Mount Plate PLN-534727000
...
7
Lockwasher PLN-534713000
...
8
Screw PLN-534744300
...
9
Washer PLN-534136100
...
10
Impeller Ass'y. PLN-534726700
...
11
Washer PLN-534120387
...
12
Nut PLN-534754500
...
13
Inlet Cover Housing PLN-534727202
...
14
Sleeve PLN-534408405
...
15
Exhaust Label (Model GB150) PLN-534744700
...
15
Exhaust Label (Model GB350) PLN-534727300
...
16
Screw PLN-534222401
...
17
Screw PLN-534174506
...
18
Caution Label (Not a serviceable part) PLN-534755500
...
19
Inlet Cover PLN-534543305
...
20
Screw PLN-534193700
...
21
Hinge Pin PLN-534327201
...
22
Spring Return PLN-534475900
...
23
Assist Handle Ass'y. PLN-534741000
...
24
Nameplate Label PLN-534727800
...
25
Nut PLN-534371301
...
26
Split Ring PLN-534744400
...
27
Engine Cover Housing PLN-534726602
...
28
Screw PLN-534729500
...
29
Nut PLN-534728000
...
30
Throttle Trigger Ass'y. PLN-534755800
...
31
Tickler Lever PLN-534727905
...
32
Nut PLN-534741400
...
33
Handle Cover Housing PLN-534733002
...
34
Screw PLN-534184700
...
36
Eye Nut PLN-534756900
...
37
Outlet Tube PLN-534352705
...
38
Concentrator Nozzle PLN-534373405
...
39
Nozzle Diffuser (Model GB350) PLN-534339405
...
40
Vacuum Tube (Model GB350) PLN-534528705
...
41
Nameplate Label (Model GB350) (Not a serviceable part) PLN-534506400
...
42
Vacuum Bag (Model GB350) PLN-534339900
...
xx
Operator's Manual Not Shown. PLN-534885560

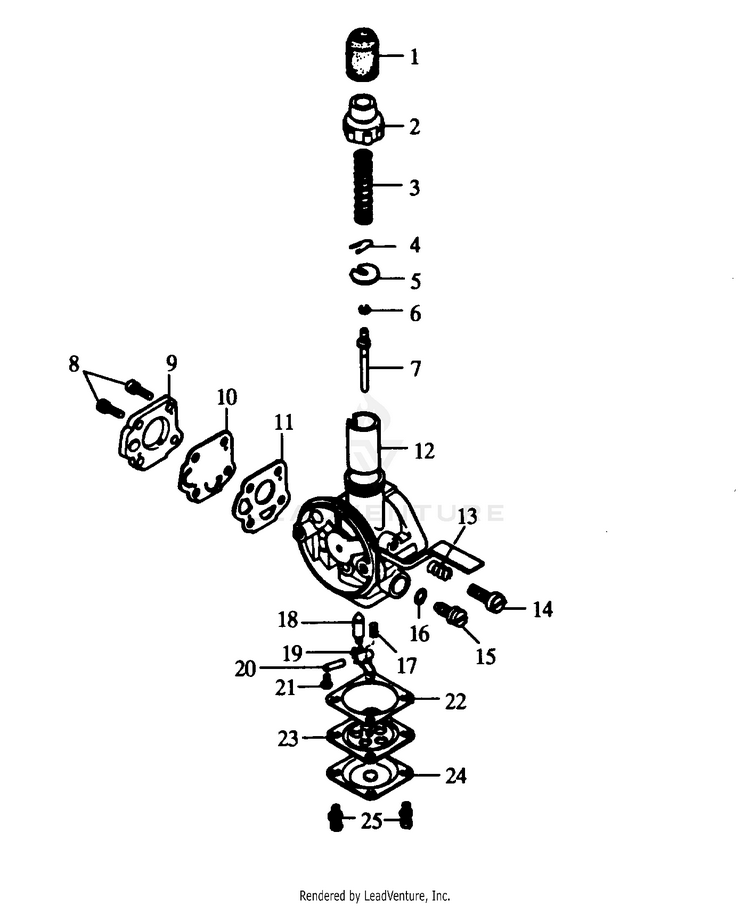

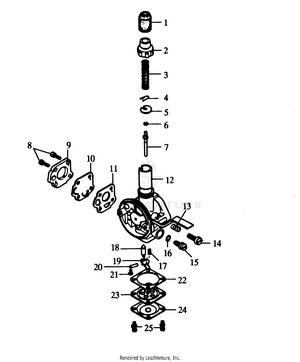

CARBURETOR

...

No Parts Available for this Schematic

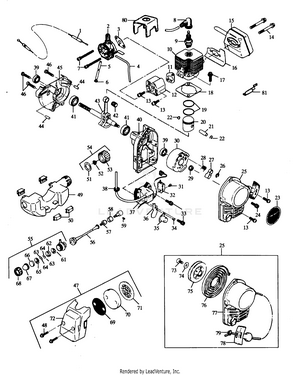

POWER UNIT

...
...
1
Throttle Wire PLN-534750001
...
2
Carburetor PLN-534752100
...
3
Carburetor Gasket PLN-534754100
...
4
Fuel Tube PLN-534745900
...
5
Fuel Tube PLN-534746000
...
6
Clip PLN-534746500
...
7
Screw & Washer PLN-534748400
...
8
Plug Cap PLN-534748300
...
9
BPMR7A NGK SPARK PLUG PLN-503235111
...
10
Cylinder PLN-534751003
...
11
Insulator Gasket PLN-534754000
...
12
Insulator PLN-534752500
...
13
Screw & Washer PLN-534748200
...
14
Bolt & Washer PLN-534745100
...
15
Muffler PLN-534752600
...
16
Muffler Gasket PLN-534752700
...
17
Bolt PLN-534754600
...
18
Cylinder Gasket PLN-534753900
...
19
Top & Bottom Ring PLN-534752900
...
20
Piston PLN-534752800
...
21
Piston Pin PLN-534753000
...
22
Piston Pin Clip PLN-534746600
...
23
Name Label (Not a serviceable part) PLN-534754200
...
24
Screw & Washer PLN-534754800
...
25
Recoil Starter PLN-534753300
...
26
Snap Ring PLN-534754400
...
27
Ratchet PLN-534753500
...
28
Spring Return PLN-534753800
...
29
Nut PLN-534754500
...
30
Rotor PLN-534751200
...
31
Screw PLN-534750100
...
32
Transistor Unit PLN-534751400
...
33
Bolt & Washer PLN-534746400
...
34
Screw PLN-534753600
...
35
Stop Switch PLN-534751600
...
36
Bracket PLN-534751500
...
37
Ignition Coil PLN-534751300
...
38
Grommet PLN-534748100
...
39
Oil Seal PLN-534745200
...
40
Starter Case PLN-534750800
...
41
Ball Bearing PLN-534754300
...
42
Needle Bearing PLN-534748000
...
43
Crankshaft Ass'y. PLN-534751100
...
44
Knock Pin PLN-534753700
...
45
Case Drive PLN-534750900
...
46
Screw PLN-534750200
...
47
Air Cleaner PLN-534750600
...
48
Screw & Washer PLN-534750300
...
49
Fuel Tank PLN-534726300
...
50
Rubber Pad PLN-534751800
...
51
Gasket PLN-534728200
...
52
Umbrella Valve PLN-534783400
...
53
Cap PLN-534727405
...
54
Gas Cap Ass'y. (Incl. #51,52,53) PLN-534728300
...
55
Primer Pump PLN-534745300
...
56
Suction Hose PLN-534751700
...
57
Fuel Filter (Incl. 58,59) PLN-534749000
...
58
Filter PLN-534749100
...
59
Sponge PLN-534749200
...
61
Gasket PLN-534746300
...
62
Valve Seat PLN-534745400
...
63
Sponge PLN-534746100
...
64
Ball PLN-534745600
...
65
Gasket PLN-534745500
...
66
Valve Seat PLN-534746200
...
67
Cap PLN-534745700
...
68
Cap Nut PLN-534745800
...
69
Screen PLN-534746800
...
70
Element PLN-534746900
...
71
Grid PLN-534754500
...
72
Cleaner Case PLN-534750700
...
73
Screw PLN-534753200
...
74
Washer PLN-534749400
...
75
Reel PLN-534753100
...
76
Spiral Spring PLN-534749300
...
77
Starter Case PLN-534753400
...
78
Starter Knob PLN-534748900
...
79
Starter Rope PLN-534746700
...
80
Cylinder Cover PLN-534741200
...
81
Spark Arrestor Ass'y. PLN-534776200
...
...
...
