product name

Poulan Paramount CT93C-00 Cordless Trimmer

Model: CT93C-00 Cordless Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

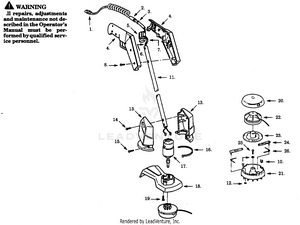

TRIMMER ASSEMBLY

...
...
1
Cord PLN-534898300
...
2
Rubber Strain Relief PLN-534459100
...
3
Strain Relief PLN-534356003
...
4
Handle Set PLN-534356782
...
5
Trigger Switch PLN-534193001
...
6
Lead Wire (Black) PLN-534896601
...
7
Lead Wire (Red) PLN-534896701
...
8
Screw PLN-534826801
...
9
Washer PLN-534908700
...
10
Line Shield PLN-534918500
...
11
Tube PLN-534897000
...
12
Pushnut PLN-534400700
...
13
Housing Set PLN-534194042
...
14
Screw PLN-534826800
...
15
Screw PLN-534790301
...
16
Tie Wrap PLN-534134702
...
17
Motor/Adapter Assy PLN-534973801
...
18
Guard/Blade Assy. PLN-534896201
...
19
Screw PLN-534183400
...
20
Cover PLN-534919200
...
21
Housing Assy. PLN-534968801
...
22
Spool & Line PLN-952710536
...
23
Cam PLN-534918900
...
24
Arm PLN-534918800
...
25
Screw PLN-534978600
...
26
Spring PLN-534908501
...
...
...
