product name

Poulan Paramount CB120 Cordless Blower

Model: CB120 Cordless Blower

Save
 Part Not Listed?Part Not Listed?
product name

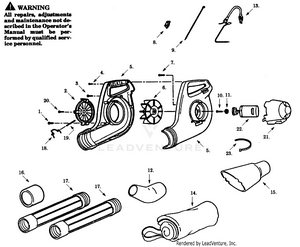

BLOWER ASSEMBLY

...
...
1
Screw PLN-534908400
...
2
Inlet Cover PLN-534543305
...
3
Screw PLN-534790300
...
4
Screw PLN-534790302
...
5
Housing Set PLN-534983600
...
6
Impeller Ass'y PLN-534981415
...
7
Screw PLN-530094355
...
8
Switch PLN-534950900
...
9
Lead Wire Ass'y PLN-534898002
...
10
Screw PLN-534562600
...
11
Washer PLN-534828703
...
12
Curved Nozzle PLN-534996900
...
13
Power Cord PLN-534983501
...
14
Vacuum Bag PLN-534339900
...
15
Vacuum Nozzle PLN-534980500
...
16
Sleeve PLN-534408415
...
17
Outlet Tube PLN-534352705
...
18
Spring PLN-534475900
...
19
Hinge Pin PLN-534327201
...
20
Screw PLN-534826801
...
21
Motor Cover PLN-534980402
...
22
Motor Ass'y PLN-534983701
...
23
Tie Strap PLN-534134702
...
24
Operator Manual Not Shown. PLN-534887010
...
25
Warning Decal (Not a serviceable part) Not Shown. PLN-534983900
...
26
Motor Cover Decal (Not a serviceable part) Not Shown. PLN-534983800
...
27
Carton (Not a serviceable part) Not Shown. PLN-534100290

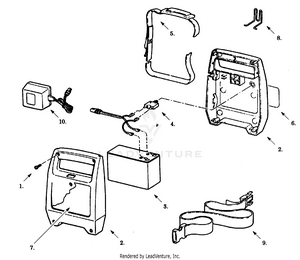

POWER PAK KIT

...
...
0
Power Pak Kit PLN-534500012
...
1
Screw PLN-534899900
...
2
Housing Set PLN-534897805
...
3
Battery PLN-534876000
...
4
Harness Ass'y. PLN-534946201
...
5
Shoulder Strap PLN-534898901
...
6
Decal PLN-534883800
...
7
Decal PLN-534898100
...
8
Belt Hook PLN-534900100
...
9
Waist Belt PLN-534913101
...
10
Battery Charger PLN-534876100
...
11
Operator Manual Not Shown. PLN-534886591
...
...
...
