Poulan Paramount 980C-01 Electric Edger

Model: 980C-01 Electric Edger

Back To Assemblies

Save Part Not Listed?
product name

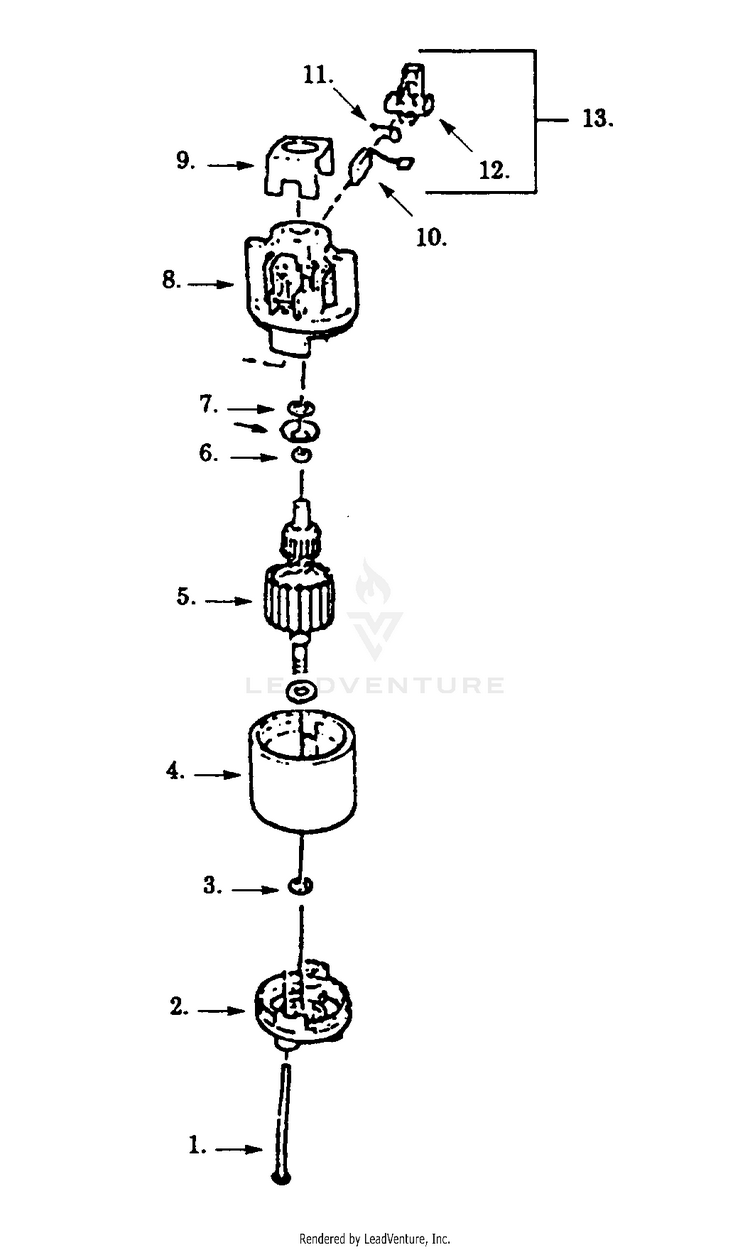

BRUSH ASSEMBLY

...
...
1
Screw PLN-534228700
...
2
Endbell Ass'y. (Drive) PLN-534207101
...
3
Washer PLN-534238903
...
4
Field Ass'y. PLN-534227001
...
5
Armature Ass'y. PLN-534225122
...
6
Washer PLN-534246700
...
7
Washer PLN-534228800
...
8
Endbell Ass'y. (Brush) PLN-534227501
...
9
Insulator PLN-534226000
...
10
Carbon Brush PLN-534227800
...
11
Brush Spring PLN-534228000
...
12
Brush Holder PLN-534227700
...
13
Brush Kit (Incl. 10,11,12) PLN-534450400
...
14
Retaining Ring PLN-534747002
