Poulan Paramount 980C-00 Electric Edger

Model: 980C-00 Electric Edger

Save
 Part Not Listed?Part Not Listed?
product name

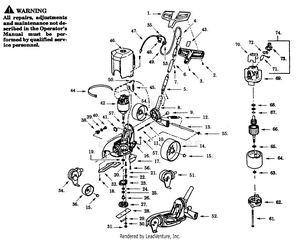

EDGER & BRUSH ASSEMBLY

...
...
1
Top & Bottom Handle PLN-534234255
...
2
Screw PLN-534184700
...
3
Screw PLN-534222400
...
4
Upper Handle Tube PLN-534235100
...
5
Lower Handle Tube PLN-534771000
...
6
Lockwasher PLN-534713000
...
7
Screw PLN-534970001
...
8
Swivel Casting PLN-534137542
...
9
Knob PLN-534720001
...
10
Spring PLN-534710000
...
11
Shaft PLN-534700002
...
12
Axle Spring PLN-534121300
...
13
Axle PLN-534137701
...
14
Rear Wheel PLN-534236800
...
15
Push Nut PLN-534121000
...
16
Frame PLN-534130505
...
17
Guide Blade PLN-534830000
...
18
Screw PLN-534193800
...
19
Washer PLN-534136100
...
20
Screw PLN-534136401
...
21
Bolt PLN-534135900
...
22
Insulating Sleeve PLN-534135605
...
23
Clutch Plate PLN-534135400
...
24
Washer PLN-534136300
...
25
Load Spring PLN-534238900
...
26
Clutch Sleeve PLN-534135500
...
27
Fan PLN-534135305
...
28
Cutter Blade PLN-534205300
...
29
Lock Strap PLN-534135700
...
30
Lockwasher PLN-534136600
...
31
Nut PLN-534136200
...
32
Guard Plate PLN-534131515
...
34
Front Swivel Ass'y. PLN-534130702
...
35
Wire Nut PLN-534561000
...
36
Wheel PLN-534240003
...
38
Spring PLN-534120500
...
39
Washer PLN-534778000
...
40
Screw PLN-534779000
...
41
Retaining Ring PLN-534780000
...
42
Motor PLN-534225007
...
43
Shield PLN-534337100
...
44
Tie Strap PLN-534134700
...
45
Resistor PLN-534134500
...
46
Motor Cover PLN-534722048
...
47
Power Cord PLN-534234501
...
48
Switch PLN-534193004
...
49
Harness PLN-534337000
...
50
Connector PLN-534561000
...
51
Front Swivel Ass'y. PLN-534130702
...
52
Edger Frame Ass'y. PLN-534135162
...
53
P.C. Board PLN-534336501
...
54
Fiberglass Sleeve PLN-534134600
...
55
Washer PLN-534137900
...
56
Screw PLN-534315200
...
57
Lock Nut PLN-534315300
...
61
Screw PLN-534228700
...
62
Endbell (Output) PLN-534207101
...
63
Field Ass'y. PLN-534227001
...
64
Load Washer PLN-534238903
...
65
Retaining Ring PLN-534747002
...
66
Armature Ass'y. PLN-534225122
...
67
Retaining Ring PLN-534246700
...
68
Washer PLN-534228800
...
69
Endbell (Brush) PLN-534227501
...
70
Insulator PLN-534226000
...
71
Brush PLN-534227800
...
72
Spring PLN-534228000
...
73
Brush Holder PLN-534227700
...
74
Brush Kit (Inc.71,72,73) PLN-534450400
...
...
...
