Poulan Paramount 975-01 Electric Edger

Model: 975-01 Electric Edger

Save
 Part Not Listed?Part Not Listed?
product name

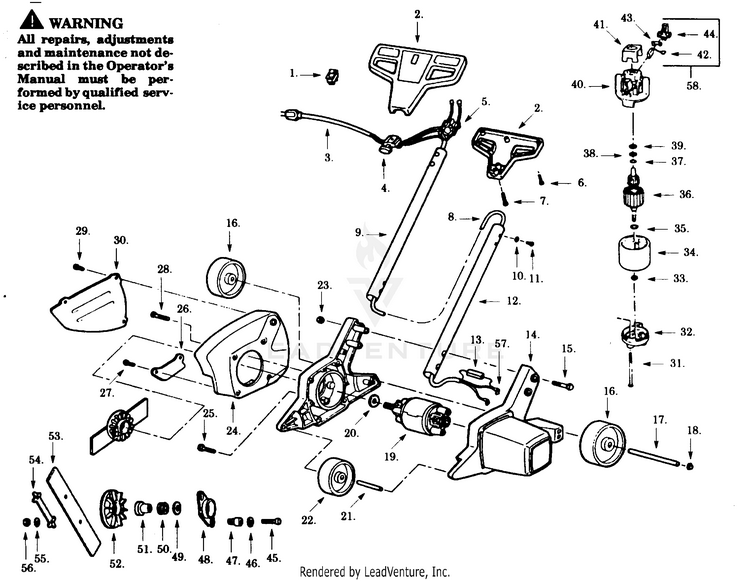

EDGER ASSEMBLY

...
...
1
Power Switch PLN-534332500
...
2
Handle Set PLN-534234245
...
3
Power Cord PLN-534234500
...
4
Trigger Switch PLN-534193004
...
5
P.C. Bridge Kit PLN-534402800
...
6
Screw PLN-534184700
...
7
Screw PLN-534222400
...
8
Harness PLN-534336403
...
9
Upper Handle Tube PLN-534222503
...
10
Lockwasher PLN-534713000
...
11
Screw PLN-534970001
...
12
Lower Handle Tube PLN-534223200
...
13
Resistor PLN-534134500
...
14
Motor Cover PLN-534323302
...
15
Screw PLN-534174501
...
16
Wheel PLN-534240003
...
17
Axle PLN-534781011
...
18
Push Nut PLN-534121000
...
19
Motor PLN-534225022
...
20
Washer PLN-534136100
...
21
Axle PLN-534740002
...
22
Wheel PLN-534730001
...
23
Nut PLN-530403094
...
24
Guard Housing PLN-534346702
...
25
Screw PLN-534136401
...
26
Edge Guide PLN-534323500
...
27
Screw PLN-534222403
...
28
Screw PLN-534222401
...
29
Screw PLN-534193800
...
30
Side Guard PLN-534323405
...
31
Screw PLN-534228700
...
32
Endbell Ass'y. (Drive) PLN-534207101
...
33
Washer PLN-534228800
...
34
Field Ass'y. PLN-534227001
...
35
Retaining Ring PLN-534747002
...
36
Armature Ass'y. PLN-534225120
...
37
Retaining Ring PLN-534246700
...
38
Washer PLN-534228802
...
39
Washer PLN-534238903
...
40
Endbell Ass'y. (Brush) PLN-534227501
...
41
Insulator PLN-534226000
...
42
Brush PLN-534227800
...
43
Brush Spring PLN-534228000
...
44
Brush Holder PLN-534227700
...
45
Bolt PLN-534135900
...
46
Washer PLN-534520022
...
47
Sleeve PLN-534135605
...
48
Clutch Plate PLN-534135400
...
49
Washer PLN-534136300
...
50
Spring Washer PLN-534238900
...
51
Clutch Sleeve PLN-534135500
...
52
Fan PLN-534135305
...
53
Blade PLN-952710529
...
54
Lockstrap PLN-534135700
...
55
Lockwasher PLN-534136600
...
56
Nut PLN-534136200
...
57
Connector Tab PLN-534224000
...
58
Brush Kit (Incl. 42,43,44) PLN-534450400
...
59
Operator Manual Not Shown. PLN-534883581
...
...
...
