product name

Poulan Paramount 950-00 Blower

Model: 950-00 Blower

Save
 Part Not Listed?Part Not Listed?
product name

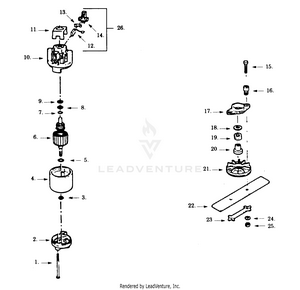

BRUSH ASSEMBLY

...
...
1
Screw PLN-534228700
...
2
Endbell Ass'y. (Drive) PLN-534207101
...
3
Washer PLN-534228800
...
4
Field Ass'y. PLN-534227001
...
5
Retaining Ring PLN-534747002
...
6
Armature Ass'y. PLN-534225122
...
7
Retaining Ring PLN-534246700
...
8
Washer PLN-534228802
...
9
Washer PLN-534238903
...
10
Endbell Ass'y. (Brush) PLN-534227501
...
11
Insulator PLN-534226000
...
12
Brush PLN-534227800
...
13
Brush Spring PLN-534228000
...
14
Brush Holder PLN-534227700
...
15
Bolt PLN-534135900
...
16
Sleeve PLN-534135605
...
17
Clutch Plate PLN-534135400
...
18
Washer PLN-534136300
...
19
Spring Washer PLN-534238900
...
20
Clutch Sleeve PLN-534135500
...
21
Fan PLN-534135305
...
22
Blade PLN-952710529
...
23
Lockstrap PLN-534135700
...
24
Lockwasher PLN-534136600
...
25
Nut PLN-534136200
...
26
Brush Kit (Incl. 12,13,14) PLN-534450400

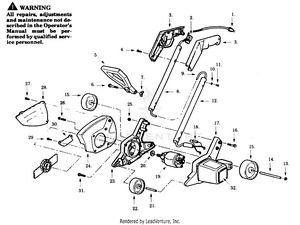

EDGER ASSEMBLY

...
...
1
Power Cord PLN-534234500
...
2
Trigger Switch PLN-534193004
...
3
Handle Set PLN-534356772
...
4
Screw PLN-534193700
...
5
Assist Handle PLN-534156405
...
6
Bolt PLN-534218105
...
7
Wingnut PLN-534437000
...
8
Upper Handle Tube PLN-534222506
...
9
Harness PLN-534361500
...
10
Lockwasher PLN-534713000
...
11
Screw PLN-534970001
...
12
Lower Handle Tube PLN-534223201
...
13
Push Nut PLN-534121000
...
14
Axle PLN-534781011
...
15
Wheel PLN-534240003
...
16
Screw PLN-534174501
...
17
Motor Cover PLN-534323302
...
18
Rectifier Ass'y. PLN-534278000
...
19
Motor PLN-534225022
...
20
Washer PLN-534136100
...
21
Axle PLN-534740002
...
22
Wheel PLN-534730001
...
23
Frame PLN-534323202
...
24
Guard Housing PLN-534346702
...
25
Nut PLN-530403094
...
26
Screw PLN-534222401
...
27
Screw PLN-534193800
...
28
Side Guard PLN-534323405
...
29
Screw PLN-534222403
...
30
Edge Guide PLN-534323500
...
31
Screw PLN-534136401
...
32
Housing Label PLN-534392600
...
33
Operator Manual Not Shown. PLN-534883570
...
...
...
